REAR TRACK SHOCK CONTROL
RODS
Edge Shock Rods
Shock rods must be installed in the same orientation as set
from the factory. Any changes made to the shock rod
orientation other than the factory setting may cause
suspension damage.
.63" (16 mm)
.45" (11.4 mm)
Lower
Upper
Trail RMK (lower end is smaller than the upper end)
340-, SuperSport (both ends are the same size)
.475" (12 mm)
.475" (12 mm)
Facing Shock
Facing Shock

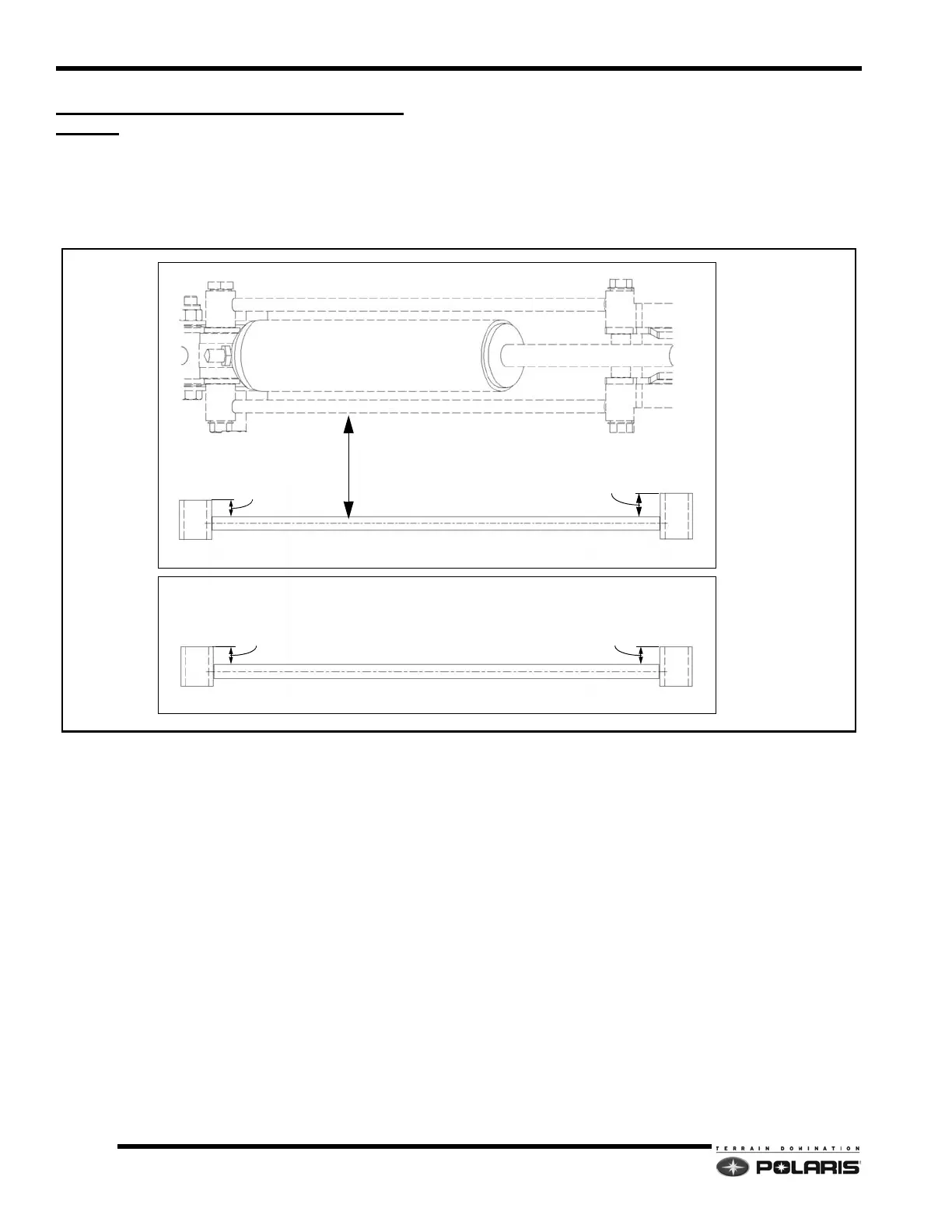

Shock Rod Assembly Example (Trail RMK Shown)
Shock
Lower
Upper
