Polaris Widetrak LX 2008 - Edge Fuel Tank Removal;Installation; Edge Headlight Removal;Installation; Headlight; Rear Bumper Removal;Installation

9.3
Chassis
9
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
Rear Bumper Removal/Installation
1. Remove the rear coolant cover (1) if so equipped.
2. Remove the rear bumper fasteners (2).
3. Remove the bumper.
4. Install in reverse order.
HEADLIGHT
Edge Headlight Removal/Installation
1. Remove the plenum from the bottom of the hood.
2. Disconnect the head light connections.
3. Remove the 4 screws holding the headlight in place.
4. Installation is the reverse of removal.

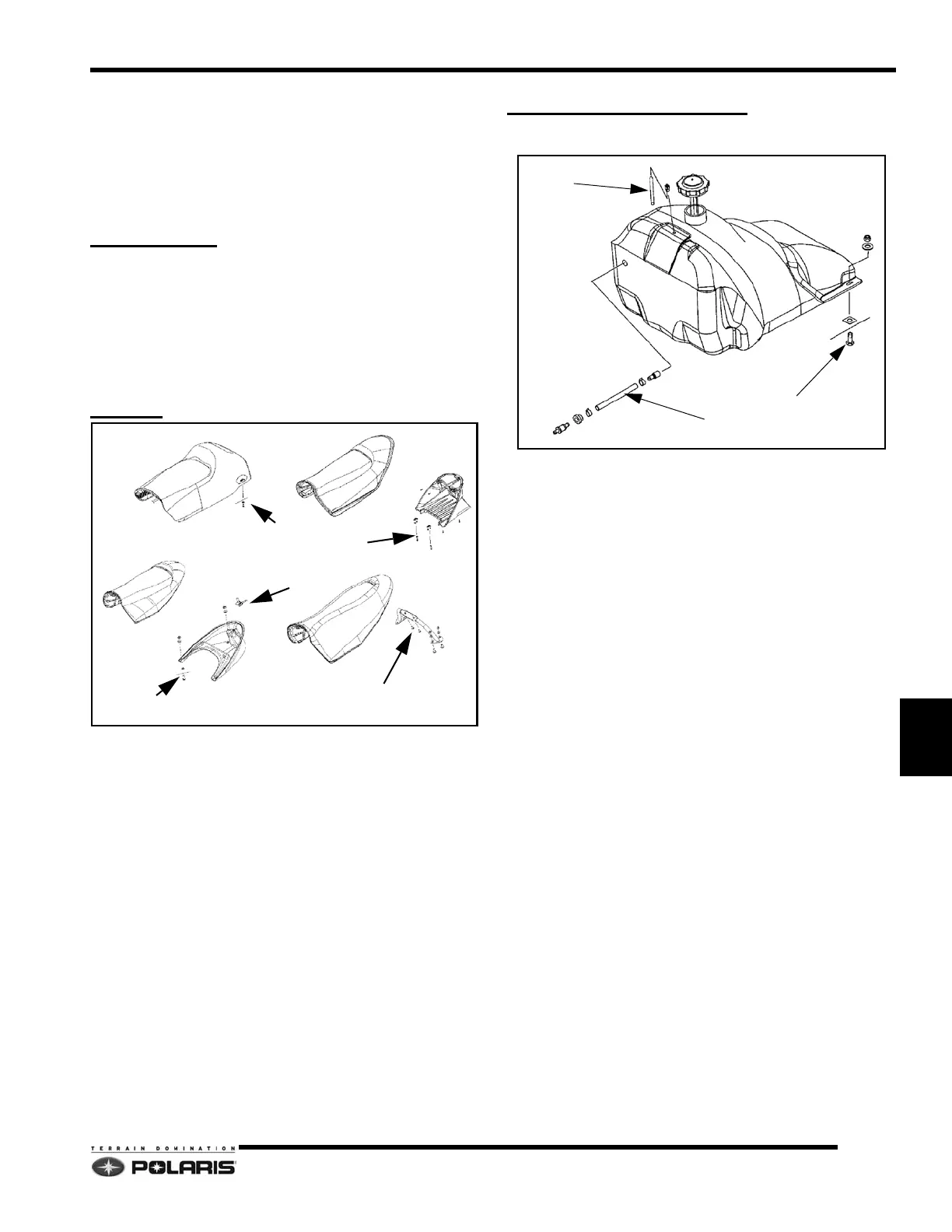

SEATS
Seat & Base Removal/Installation
1. If unit is equipped with a seat latch (1), remove the
seat or passenger seat if so equipped.
2. Remove the fasteners (2) that hold the seat base onto
the tunnel or rear seat brace.
3. Unplug the tail light harness if applicable and remove
the seat base.
SEAT AND FUEL TANK
Edge Fuel Tank Removal/Installation
1. Remove any fuel that may be in the fuel tank.
2. Remove the seat.
3. Remove the fuel tank fasteners (1) at the rear of the
fuel tank.
4. Disconnect the fuel tank vent line (2).
5. Disconnect the fuel supply line (3).
6. Remove the fuel tank.
7. Install in reverse order.
1
2
2
2
2
1
2
3
