4.15
Fuel System
4
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

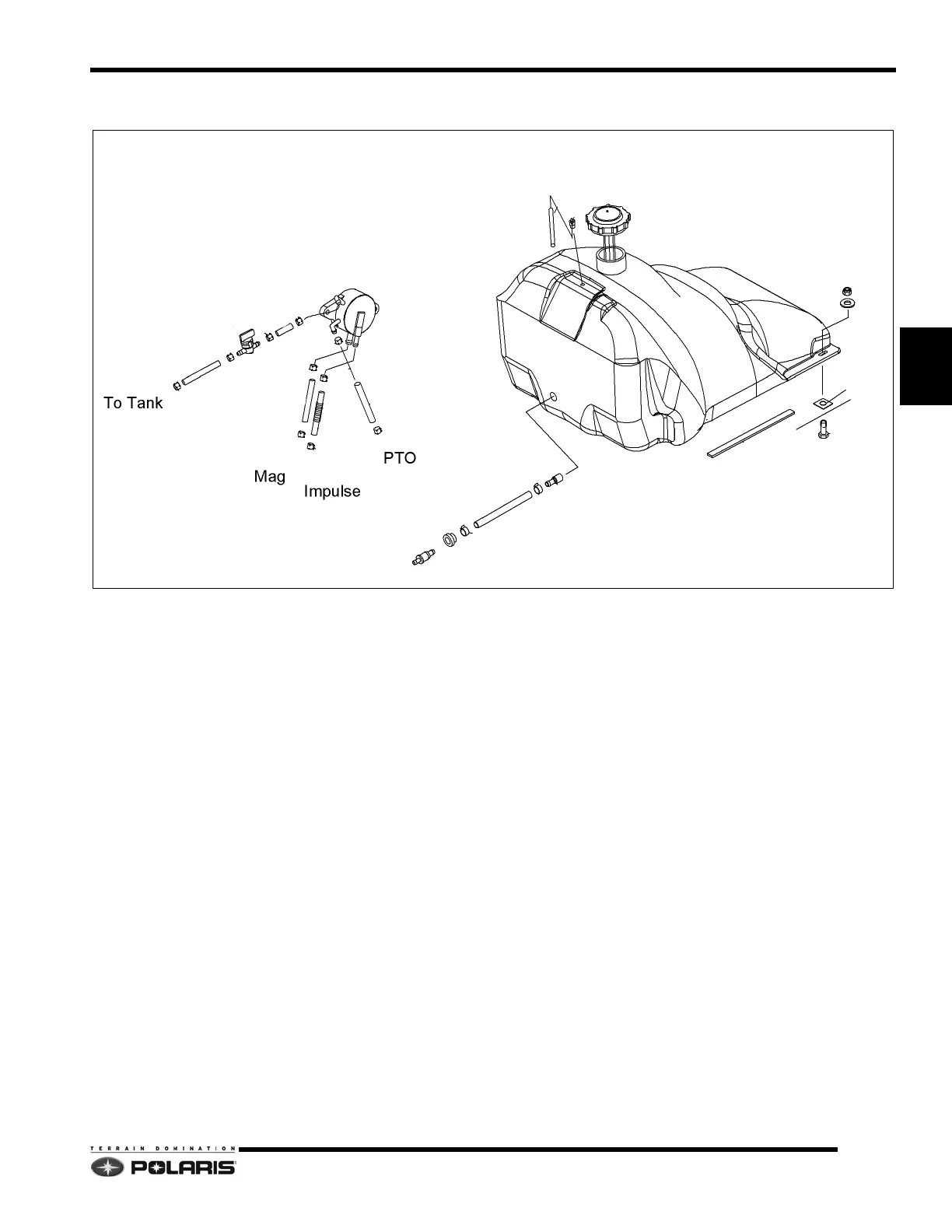

EDGE Fuel Tank Assembly (Typical)
Venting System
All fuel tanks are vented to atmosphere using a clear
plastic tube. The tube must be free of kinks and clear of
pinch points.
Poor engine runability, fuel starvation, and possible
engine damage may occur if the vent system becomes
obstructed or pinched.
Additionally, warm ambient temperatures may cause the
fuel tank to expand if the fuel vapors are not allowed to
vent into the atmosphere.
FUEL PUMP
GAS CAP
FUEL TANK
FITTING
FUEL FILTER
GASKET
FUEL SHUTOFF VALVE
VENT
