PVT System
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

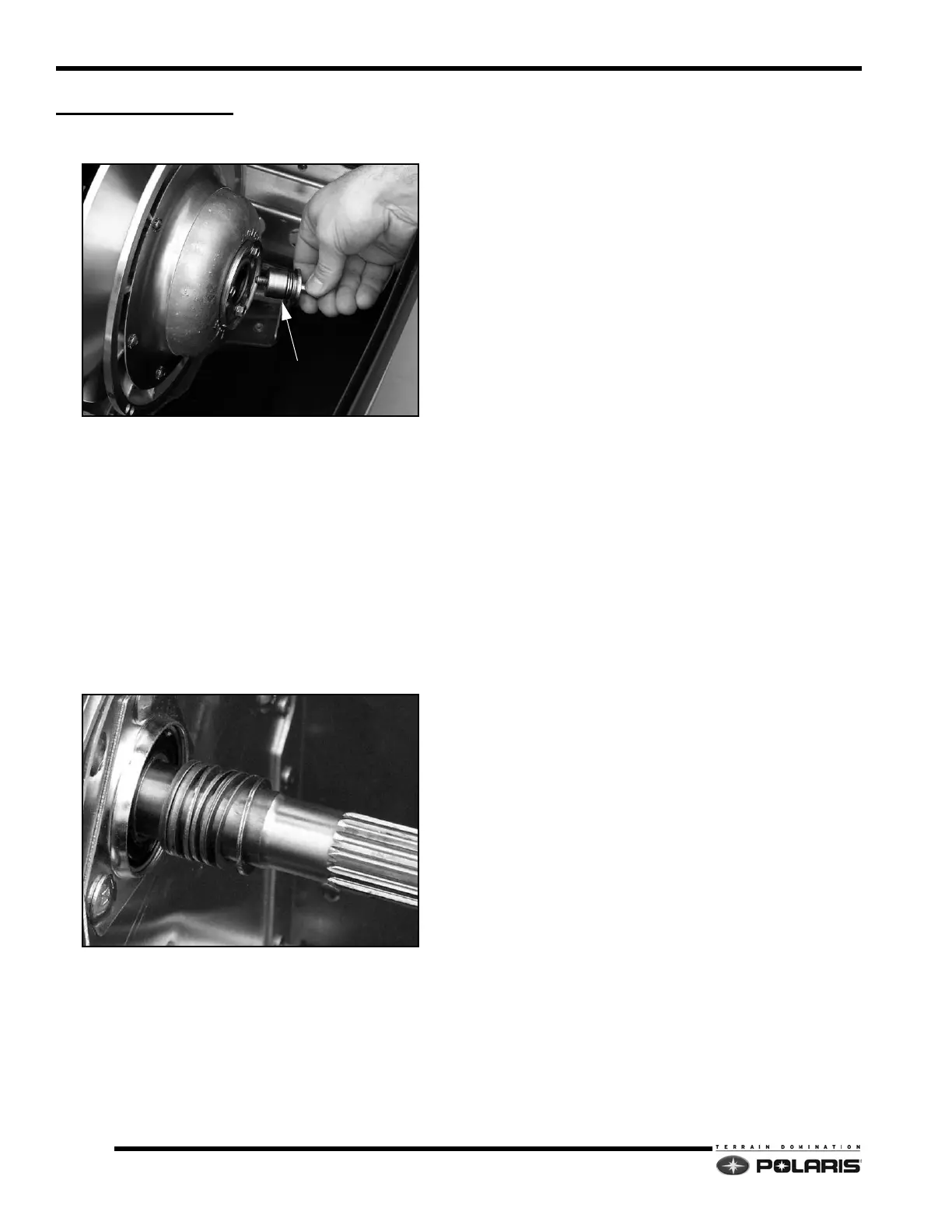

DRIVEN CLUTCH
Driven Clutch Removal
1. Remove the drive belt.
2. Apply and lock the parking brake.
3. Remove the driven clutch bolt and washers (A).
NOTE: Count the number and location of the spacer
washers located on the fastener and behind the
clutch.
4. Slide the driven clutch off the jackshaft.
5. Inspect the splines and replace jackshaft if damage is
found.
Driven Clutch Installation
1. Install the driven clutch bolt with the same amount of
washers at removal.
2. Torque the bolt to specification.
3. Check for correct belt deflection.
To Next Page
