HOOD ASSEMBLY
Hood Removal/Installation
1. Disconnect the items that are connected to the
speedometer.
2. Unplug the hood wiring harness connections.
3. Remove the hood retention cable(s) from hood.
4. Remove the hinge bolts.
5. Remove the hood.
6. Install in reverse order of removal.

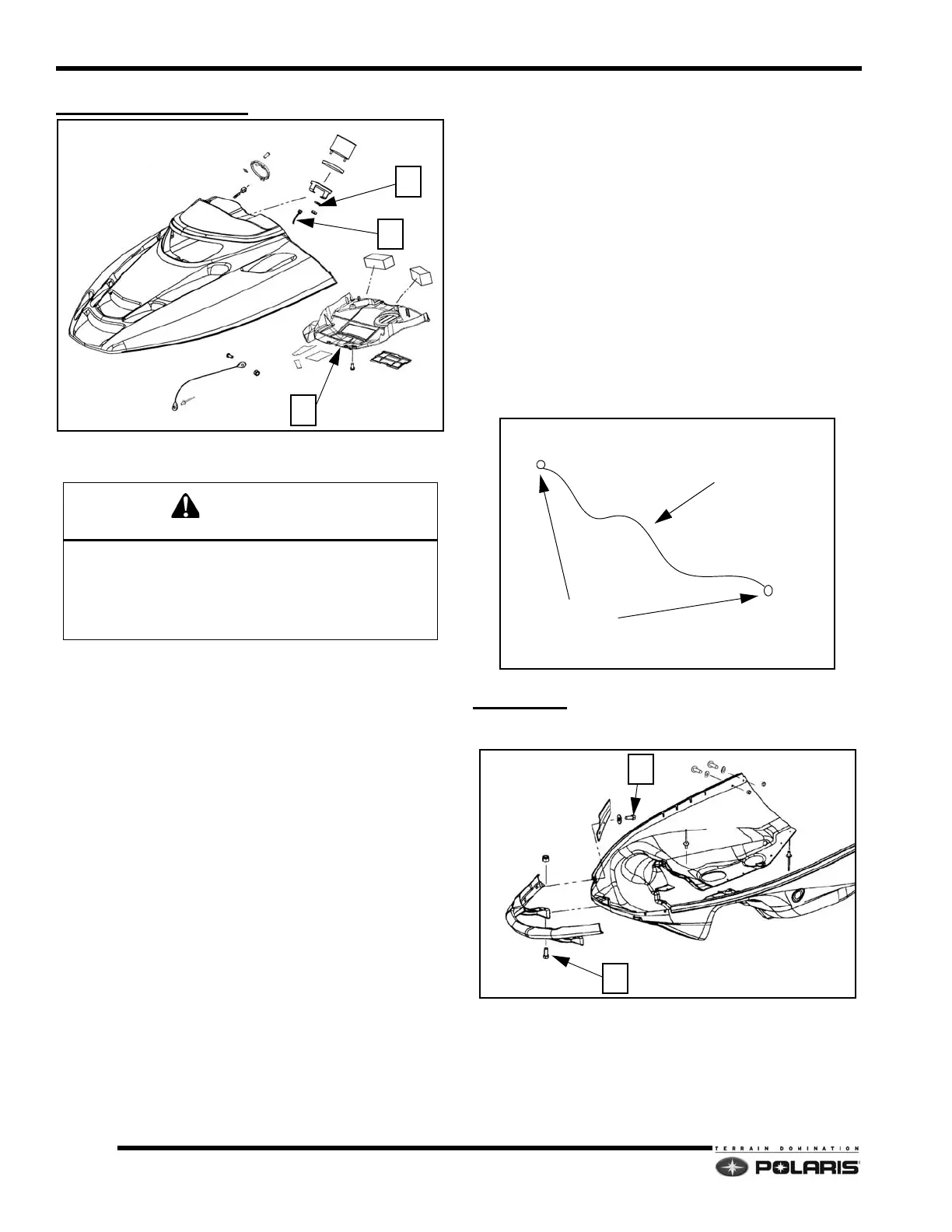

Edge Instrument Removal/Installation
1. Remove the plenum (1).
2. Disconnect the cable or connection (2) from the
instrument.
3. Remove the bracket nuts (3).
4. Remove the instrument(s) from the hood.
5. Installation is the reverse of removal.
Hood Repair
Currently there is no procedures or materials
recommended by Polaris for repairing hoods. Hoods are
made of Thermoplastic Olefin (TPO) and cannot be
repaired. If a hood is broken it must be replaced. For small
cracks you may drill a small hole on both ends of the crack
to limit spreading. This procedure is called “stop drilling.
BUMPER
Edge Front Bumper Removal/Installation
1. Remove the inside screws (1) from the bumper.
2. Remove the lower bumper bolts (2).
3. Remove the bumper.
4. Replace in the reverse order.
Exhaust system temperatures can exceed 900_ F
(500_C). Serious burns may occur if this inspections
performed without allowing adequate time for the ex-
haust system to cool. Never perform this procedure
with the engine running.
