Polaris Widetrak LX 2008 - Edge 42.5; Front Suspension Torque & Specifications

8.2
Steering and Suspension Systems
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

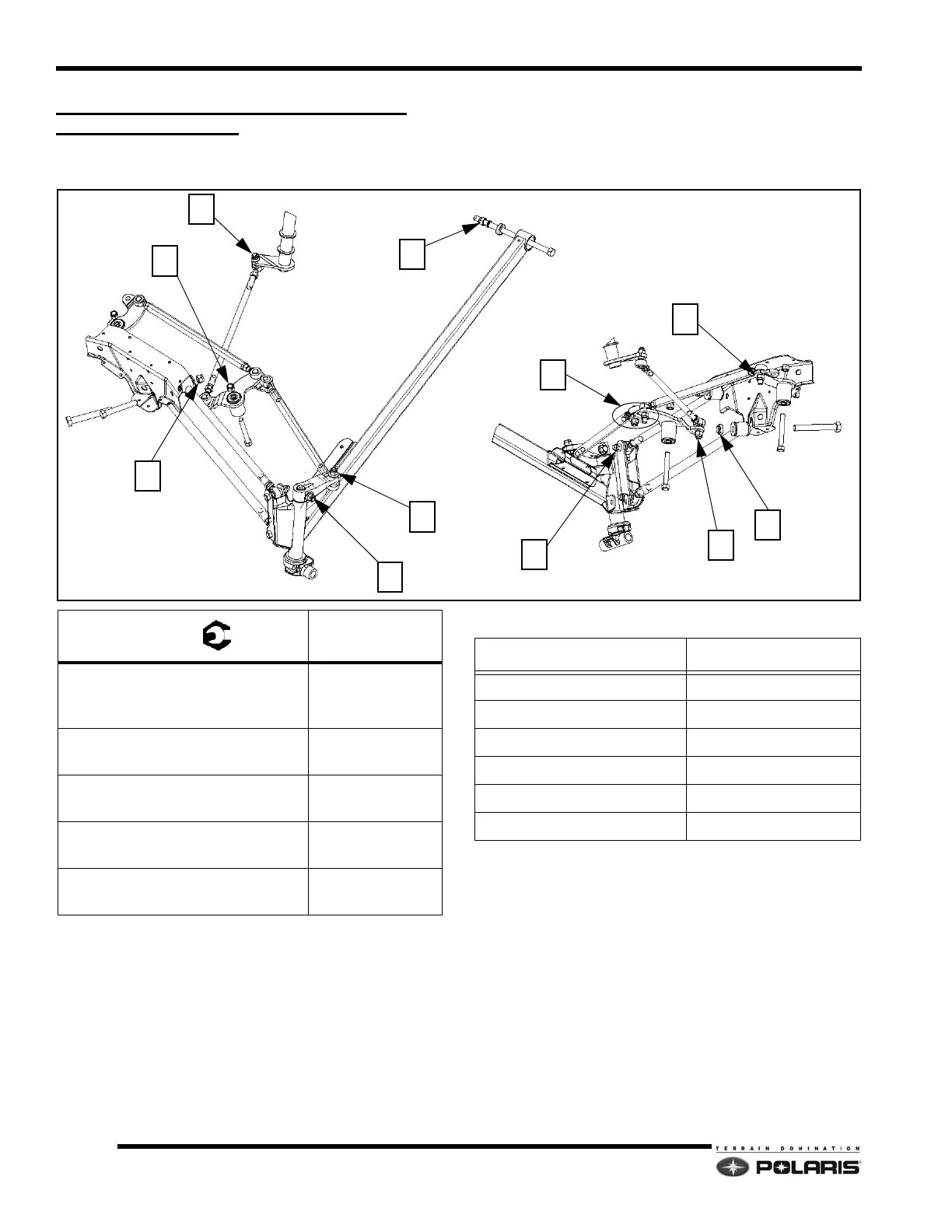

FRONT SUSPENSION TORQUE &
SPECIFICATIONS
EDGE 42.5
NOTE: Drag link, tie rod, and steering rack length
measurements are assembled with rod ends and
center-to-center.
1
1
2
1
1
3
1
1
1
1
4
= T
Drag link fasteners, Steering arm
fasteners, Tie rod fasteners
(1)
28-30 ft-lb
(38-41 N-m)
Trailing arm fastener
(2)
35-40 ft-lb
(47-54N-m)
Upper Radius Rod fasteners
(3)
55-60 ft-lb
(75-81 N-m)
Lower Radius Rod fasteners
(4)
95-100 ft-lb
(129-136 N-m)
Rod end jam nuts 8 - 14 ft-lb
(11 - 19 N-m)
Specifications
ITEM MEASUREMENT
Camber .59" ±.31" / 15 ± 8mm
Toe .12" - .25" / 3-6mm
Width 40.44" / 102.7cm
Drag Link Length 15.07" / 38.2 cm
Tie Rod Length 14.07" / 35.7 cm
Steering Rack Length 14.00" / 35.56 cm
