8.4
Steering and Suspension Systems
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
Widetrak

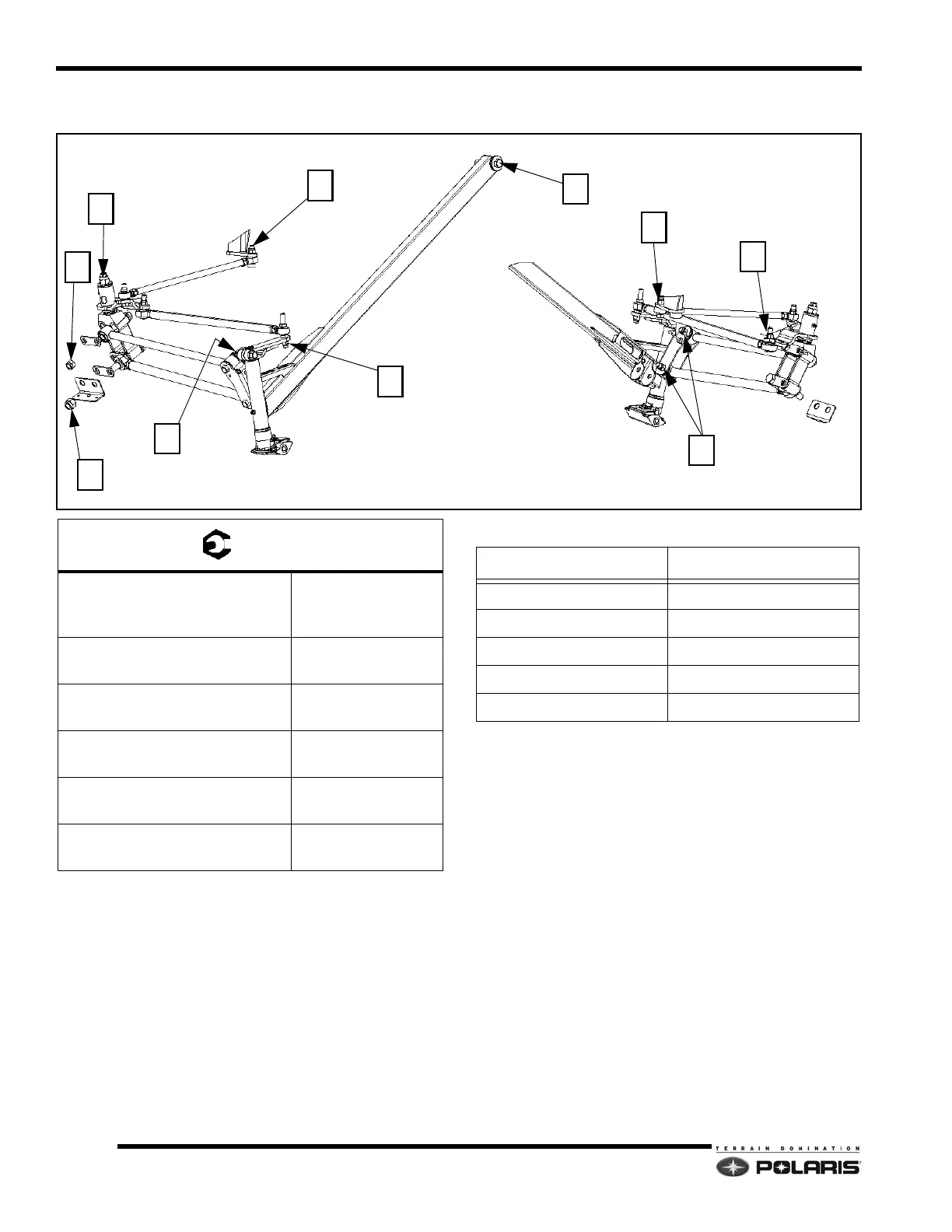

NOTE: Drag link, tie rod, and steering rack length
measurements are assembled with rod ends and
center-to-center.
4
1
2
5
1
3
1
1
1
1
= T
Drag link fasteners, Steering arm
fasteners, Tie rod fasteners
(1)
29 ft-lb (39 N-m)
Upper Radius Rod (Inner)
(2)
38 ft-lb (52 N-m)
Trailing arm fastener
(3)
43 ft-lb (58 N-m)
Lower Radius Rod (Inner)
(4)
48 ft-lb (65 N-m)
Center Steering Arm
(5)
58 ft-lb (79 N-m)
Rod end jam nuts 8 - 14 ft-lb
(11 - 19 N-m)
Widetrak Specifications
ITEM MEASUREMENT
Camber .82" ±.72" / 21 ± 18mm
Toe 0-.12" / 3 mm
Width 37.6" / 95.5 cm
Drag Link Length 14.97" / 38 cm
Tie Rod Length 17.89" / 45 cm
