6.6
Drive and Brake Systems
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
7.92 C.D. CHAINCASE

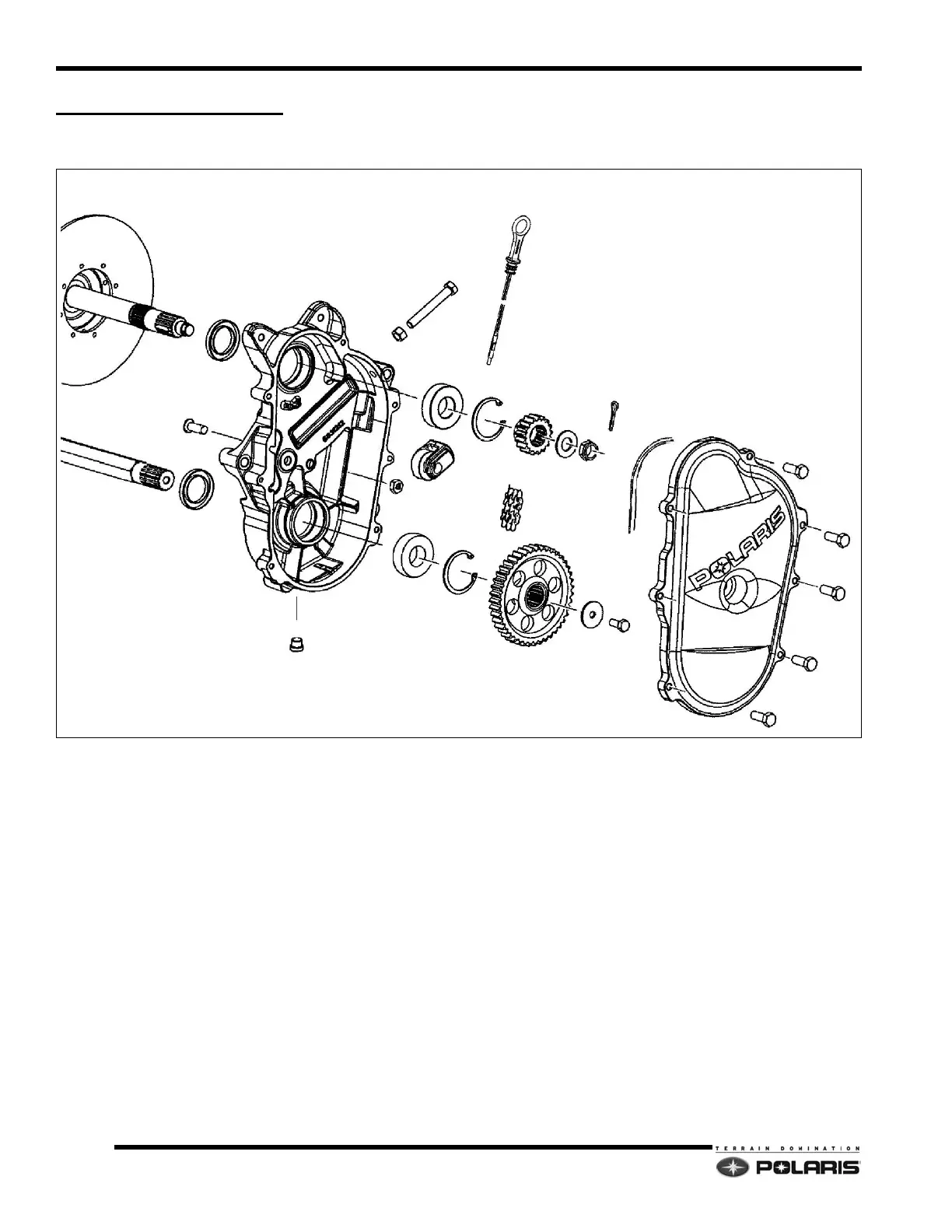

Assembly View
7.92 C.D. Fastener Torque
A = 23 ft.lbs. (31Nm)
B = 8 ft.lbs. (11 Nm)
C = 19 ft.lbs. (25 Nm)
D = 62 ft.lbs. (84Nm)
7.92 C.D. Assembly Notes
• Never re-use cotter pins. Always replace with new
parts.
• Install upper gear washer with dome (raised side)
facing locknut.
COVER
GASKET
BRAKE DISC
DRIVESHAFT
JACKSHAFT
DIPSTICK
TENSIONER BOLT
TENSIONER
SNAP RING
SNAP RING
BEARING
BEARING
GEAR
COTTER PIN
SEAL
SEAL
MAGNETIC DRAIN PLUG
GEAR
CHAIN
A
B
B
B
B
B
D
C
