3.23
Maintenance
3
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
ELECTRICAL SYSTEMS

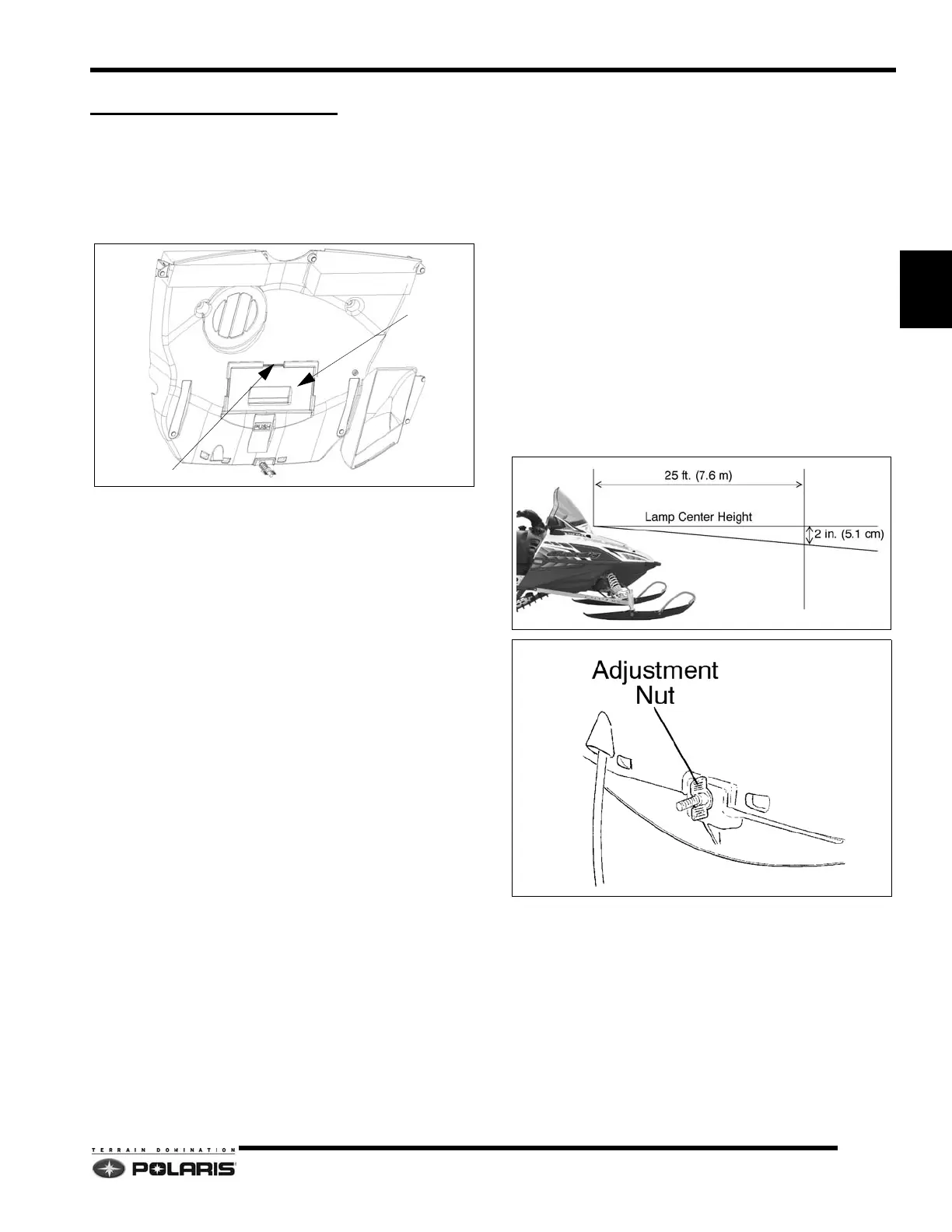

Headlight Bulb Replacement
NOTE: Do not touch the bulb with your fingers. The
grease from body oil will cause a hot spot on the bulb
and cause bulb failure. If you do touch the bulb clean
the bulb with isopropyl alcohol.
1. Push in on the “PUSH” section of the plenum.
2. Slide the access panel down to gain access to the
bulb.
3. Squeeze and move the bulb clip up.
4. Replace the bulb, clip and access panel.
Headlight Height Adjustment
NOTE: EDGE model shown. Widetrak LX uses same
procedure.
1. Place the vehicle on a flat, level surface with the
headlight approximately 25 feet (7.6 meters) from a
wall.
2. Measure the distance from the ground to the center
of the headlight. Mark this height on the wall in front
of the vehicle.
3. Start the engine and turn on the high beam lamps.
Observe the headlight aim. The most intense part of
the headlight beam, with the rider or equivalent rider
weight on the seat, should be aimed 2 inches (5.1cm)
below the mark placed on the wall.
4. To adjust the headlight aim, turn the adjuster nut on
the underside of the hood in or out to raise and lower
the headlight pod.
