5.14
Engine Systems
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.
550 Engine Mounting
Fastener Torque Note
Front Engine Mount Mounting Nuts 28 ft.lbs. (38 Nm)
Rear Engine Mount Mounting Nuts 18 ft.lbs. (24 Nm)
Engine Strap Mounting Nuts 28 ft.lbs. (38 Nm)
Exhaust Manifold Screws 18 ft.lbs. (24 Nm)
Engine Strap-to-Crankcase Bolts 45 ft.lbs. (61 Nm)

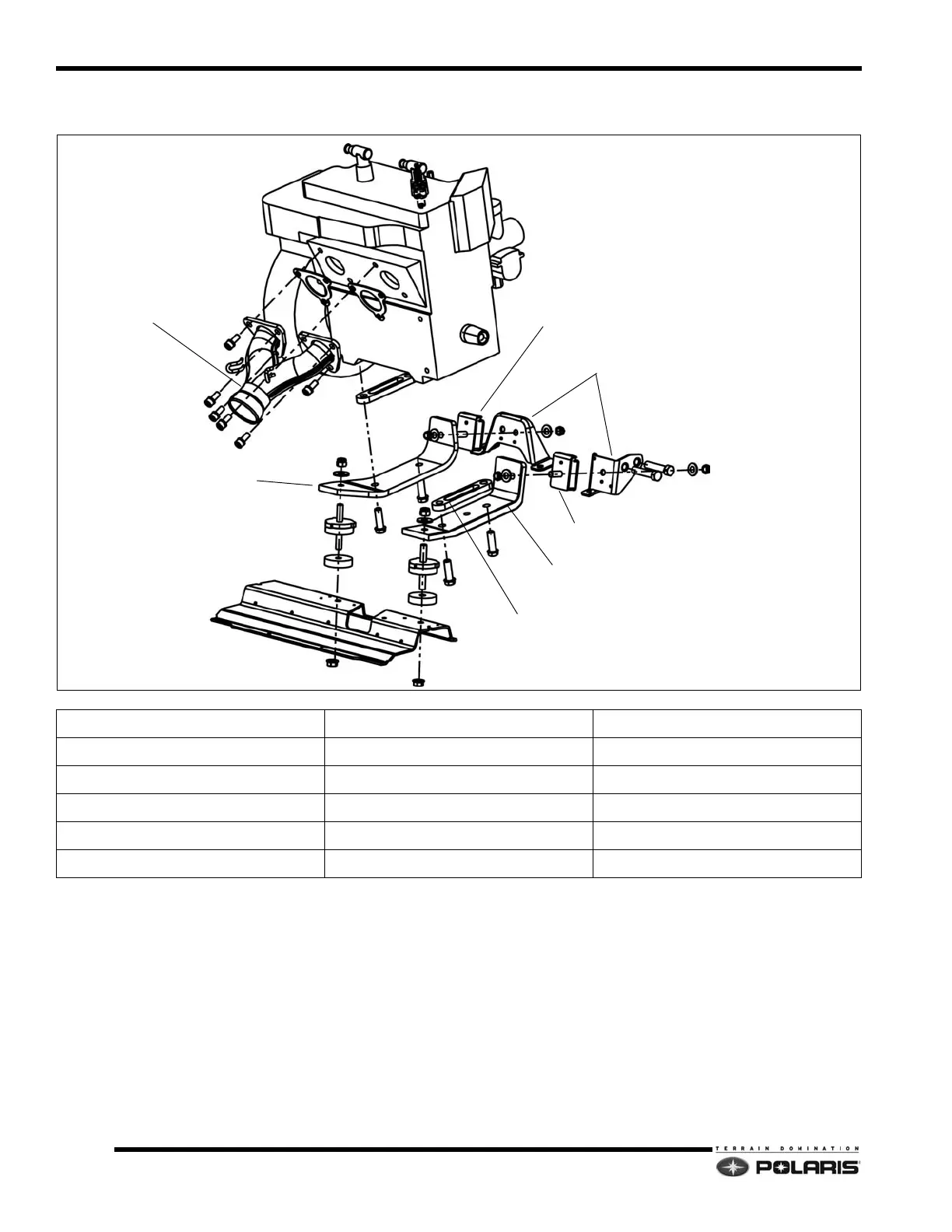

ENGINE STRAP
ENGINE STRAP
BULKHEAD
FRONT ENGINE MOUNT
SPACER
REAR ENGINE MOUNT BRACKETS
REAR ENGINE MOUNT
REAR ENGINE MOUNT
SPACER
EXHAUST MANIFOLD
