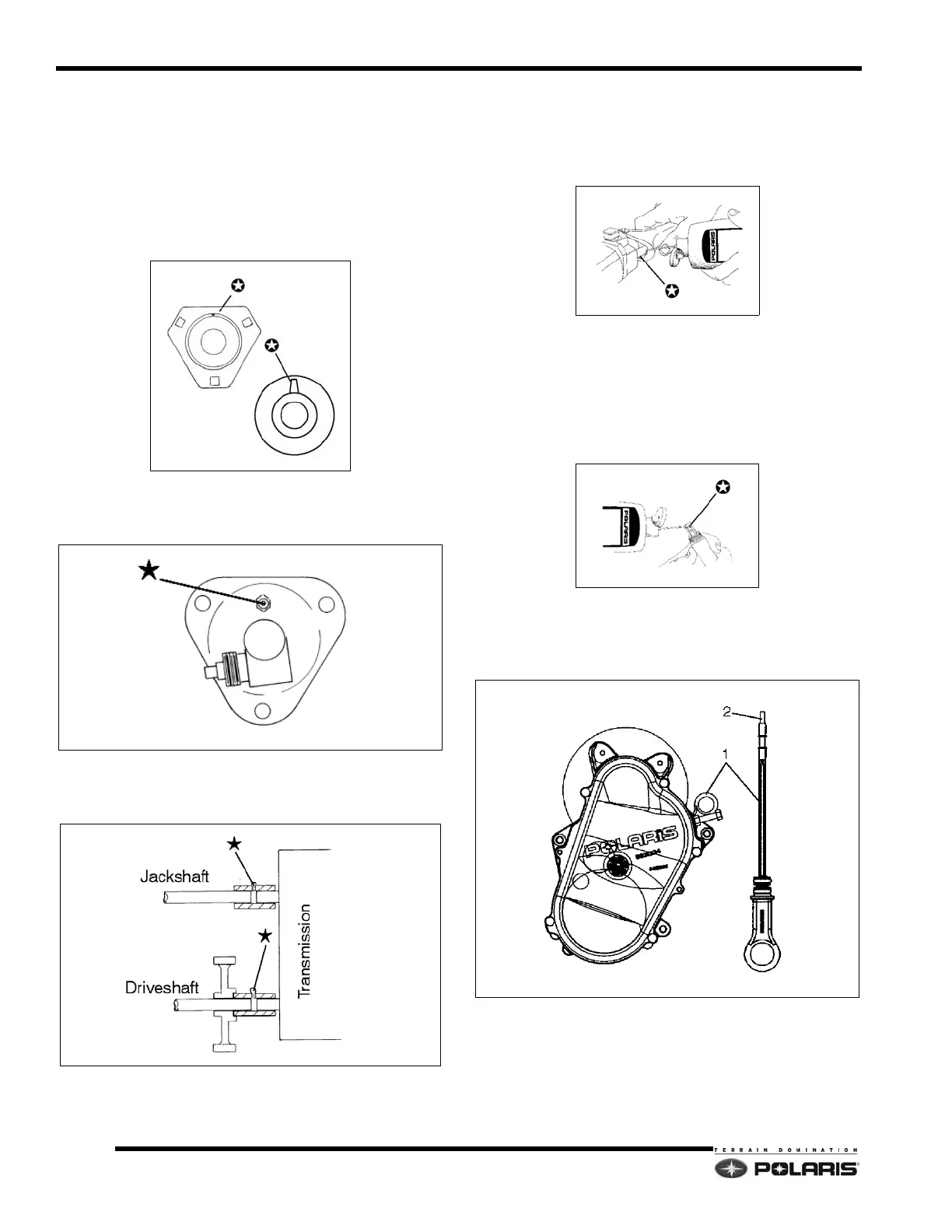

Jackshaft Bearing
Loosen the driven clutch retaining bolt and pull the clutch
toward you to expose the bearing and grease fitting. Inject
grease into the grease fitting in the flangette until grease
purges from the inside or outside of the bearing seal (may
take only two pumps). Push the clutch back onto the shaft
and replace the clutch retaining bolt. Torque the retaining
bolt to 18 ft-lbs (24.4 Nm).
Driveshaft Bearing
Lubricate with Premium All Season Grease.
Widetrak Drive Couplers
Lubricate couplers with Premium All Season Grease.
Throttle Cable
Lubricate the throttle cable lightly with fresh oil. With the
engine off, turn the handlebars to the left and lubricate well
as shown.
Choke And Choke Cable
Lubricate the choke slide and cables lightly with oil or
grease. Before turning the engine off, operate the choke
intermittently to draw moisture out of the choke plunger
area and reduce the possibility of the choke becoming
frozen.
Chaincase Oil
Maintain the oil level between the “safe” marks on the
dipstick whenever checking or changing oil.
1. Position the vehicle on a level surface
2. Remove the dipstick (1). Verify level is in SAFE zone.
3. Add the recommended oil as needed. Do not overfill.
4. Clean the magnetic tip (2) on the dipstick.
5. Reinstall the dipstick.
