4.10
Fuel System
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

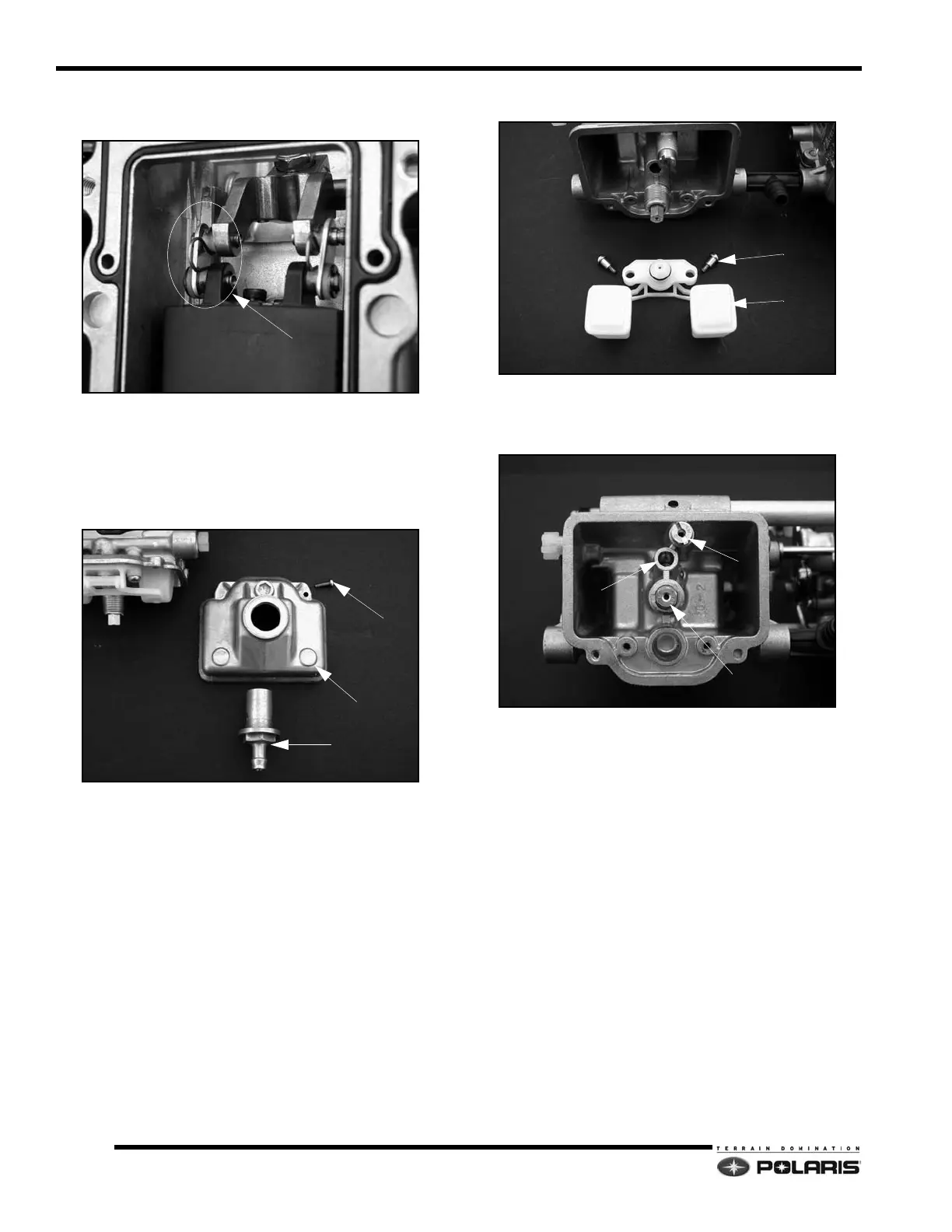

9. Inspect e-rings, plate, spring, and rings (14)
connecting the slide to the lever if needed.
10. Remove water trap/drain plug (15) and single screw
(16) on the bottom of the carburetor.
11. Remove and drain the float bowl (17).
NOTE: Float bowl will not come off unless the water
trap/drain plug and screw are removed.
12. Remove the two screws (18) holding the float/needle
and seat assembly (19) in position and remove this
assembly.
13. Inspect the contents for wear and debris.
14. Remove and inspect the main jet (20), pilot jet (21),
and starter jet (22). Clean them out.
15. Remove the air jet screw if so equipped.
16. Clean out all passages in carburetor body with
carburetor cleaner. Dry all passages and jets with
compressed air.
17. Replace gaskets and any parts that show wear or
damage.
18. Repeat steps 1-18 for disassembly for the other
carburetor if needed.
