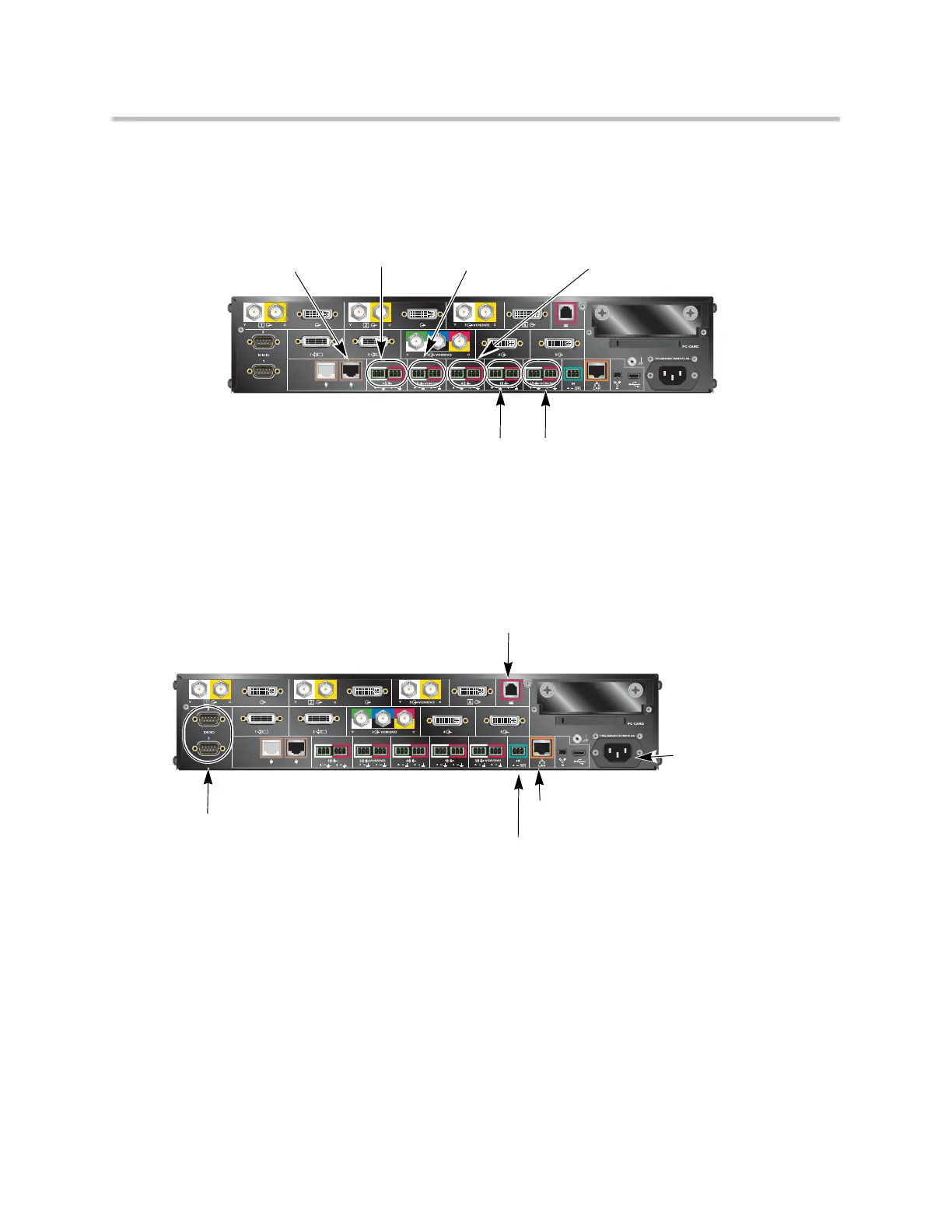

Polycom HDX 9004 Audio Inputs and Outputs
Polycom HDX 9004 Network/Power Inputs and Outputs
Polycom
Microphone Input
Audio Input 1:
Phoenix for
microphone or
line input
Audio Output 1: Phoenix for
main monitor audio or
external speaker system
Audio Input 3:
Phoenix for
VCR/DVD player
audio
Audio Output 3: Phoenix for
VCR/DVD player audio
Audio Input 4:
Phoenix for content
audio
Power connector:
For power supply
LAN port: For IP or SIP calls,
People+Content IP, and Web
RS-232 serial ports:
For RS-232 devices
Analog phone port:
For analog phone calls
IR: Phoenix for IR receiver

Polycom HDX Series Specifications

General

Network Protocols	H.323, SIP
Video Resolution	1080p (depending on model)
Audio Technology	Polycom StereoSurround
Content Sharing	People+Content
Microphone	Integrated or external
Video Standards	H.264, H.263
Audio Standards	G.711, G.722, G.722.1, G.728
Data Standards	H.239
Network Interface	10/100/1000 Ethernet
Video Inputs	HDMI, DVI-I
Video Outputs	HDMI, DVI-I
Audio Inputs	HDMI, RCA
Audio Outputs	RCA
Power Consumption	Varies by model
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10% to 90% non-condensing
