• In large conference rooms, you may need more than one microphone.

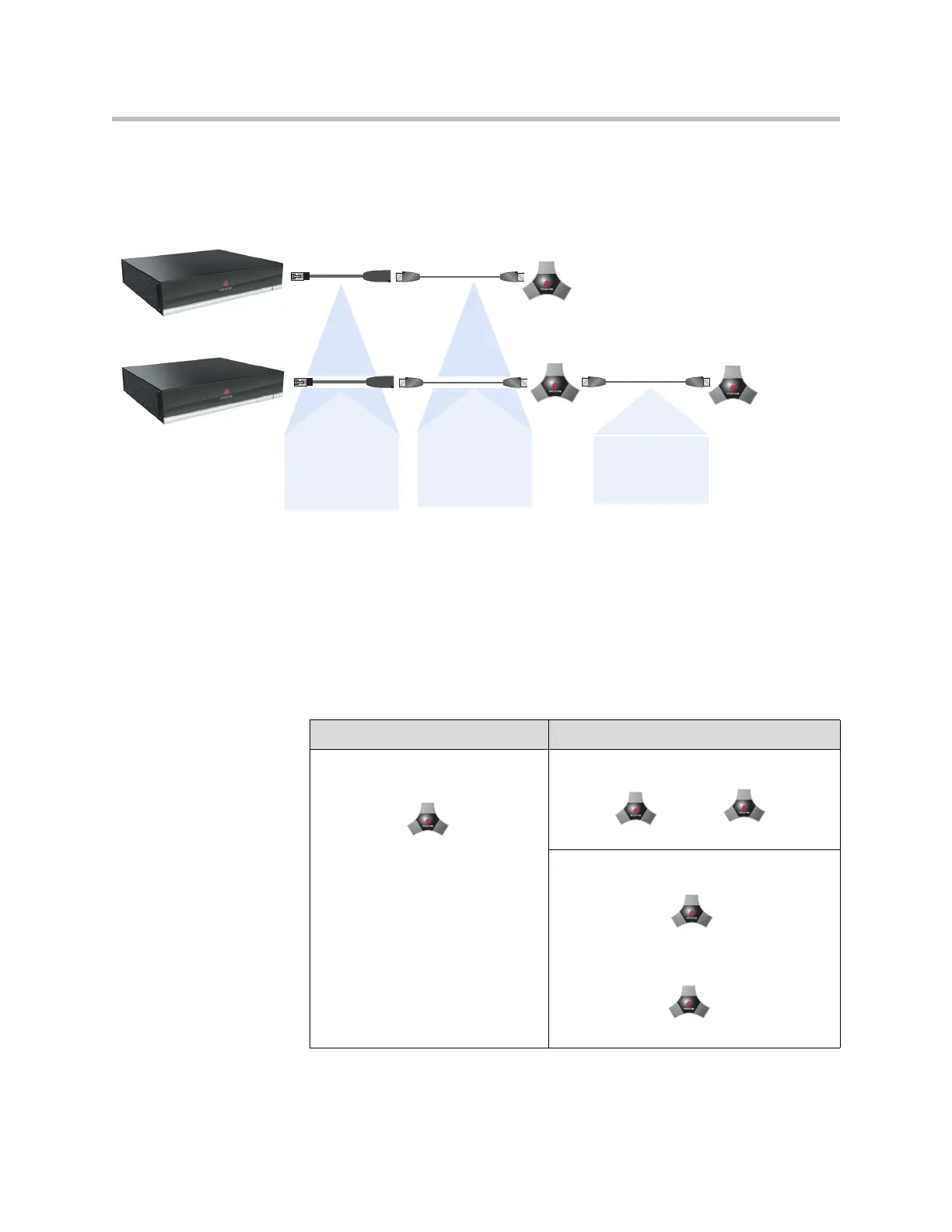

The following diagram shows microphone connection options for Polycom
HDX systems.
.
Placing Polycom Microphones to Send Stereo from Your Site
If you use a single microphone to send stereo, one microphone element picks
up audio from the left side of the room, one picks up the right side of the room,
and the third is not used. When a single Polycom microphone is connected to
a Polycom HDX system with stereo enabled, you can use the Stereo
Autorotation feature. This feature senses sound energy from the left and right
speakers and automatically assigns left and right channels for the microphone.
15 ft (4.5 m)
2457-23215-001
or 25 ft (7.5 m)
2457-23216-001
15 ft (4.5 m)
2457-23215-001
or 25 ft (7.5 m)
2457-23216-001
18 in. (0.5 m)
2457-23716-001
Stereo using one microphone Stereo using two microphones
Note: If Stereo Autorotation is
enabled, the system senses sound
energy from the left and right
speakers and automatically assigns
left and right channels for the
microphone.
left right
not used
left
left
not used
right right
not used
left right
left right
not used
not used

Polycom HDX Series Specifications

General

Network Protocols	H.323, SIP
Video Resolution	1080p (depending on model)
Audio Technology	Polycom StereoSurround
Content Sharing	People+Content
Microphone	Integrated or external
Video Standards	H.264, H.263
Audio Standards	G.711, G.722, G.722.1, G.728
Data Standards	H.239
Network Interface	10/100/1000 Ethernet
Video Inputs	HDMI, DVI-I
Video Outputs	HDMI, DVI-I
Audio Inputs	HDMI, RCA
Audio Outputs	RCA
Power Consumption	Varies by model
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10% to 90% non-condensing
