Polycom SoundPoint IP 550 User Manual

User Guide for the SoundPoint IP 550/560 Phone
3 - 20

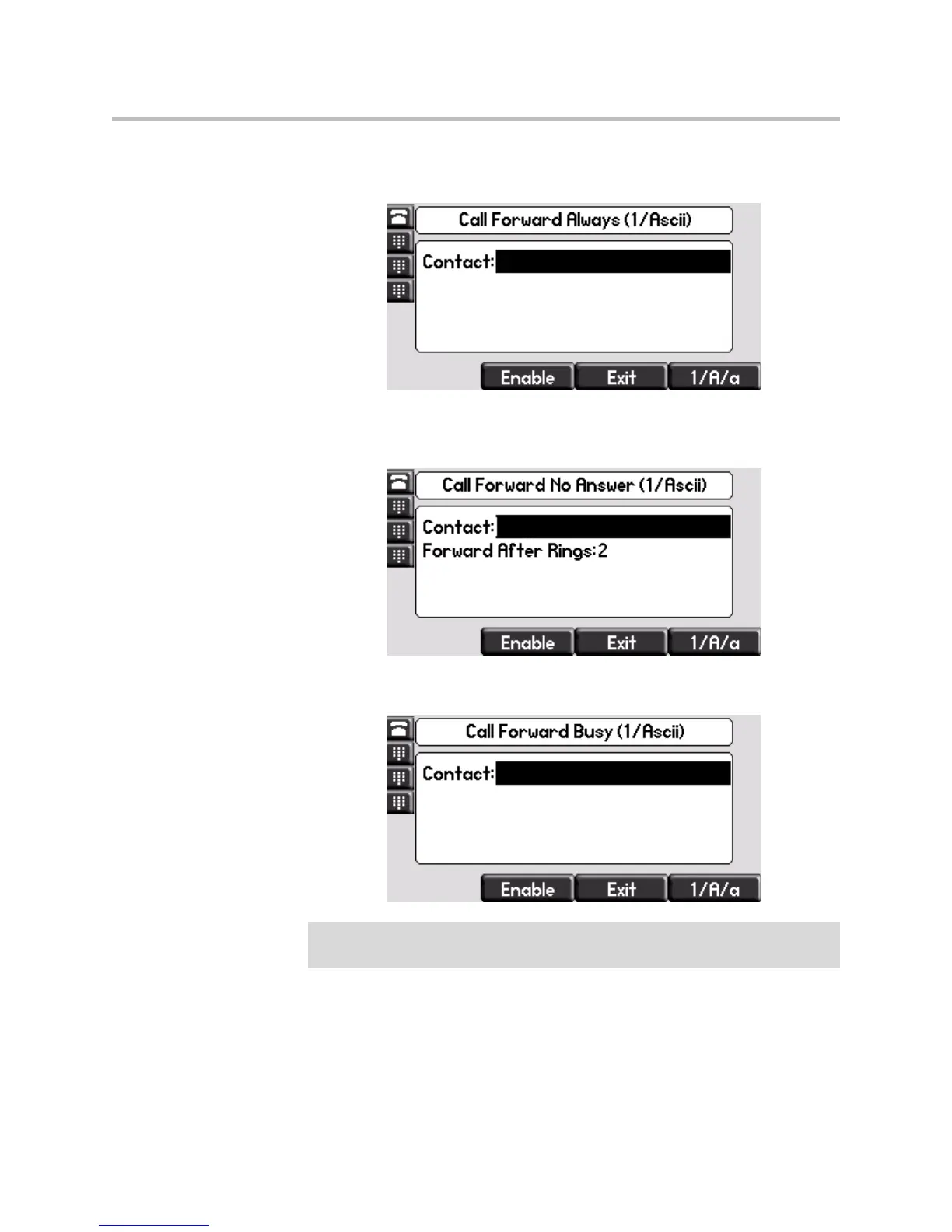

a If you selected Always, enter a number to forward all future incoming
calls to.
b If you selected No Answer, enter a number to forward all unanswered
incoming calls to and how many rings to wait before forwarding (one
ring is approximately six seconds). A value of 2 is recommended.
c If you selected Busy, enter a number to forward all future incoming
calls to when you are already in another call.
5. Select the Enable soft key to confirm call forwarding.
A moving arrow appears on the line label to confirm call forwarding is
enabled.
Note
You can also enter the SIP URL or IP address. For more information on using a SIP
URL or IP address, refer to Placing Calls on page 3-2

Polycom SoundPoint IP 550 Specifications

General

Full duplex	Yes
Camera included	No
Frequency range	150 - 7000 Hz
Base station keys	26 + 4
Channels quantity	2 channels
Dimensions (WxDxH)	265 x 150 x 190 mm
Networking features	DHCP/Static IP
Ethernet LAN (RJ-45) ports	2
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Supported data transfer rates	10/100 Mbit/s
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	20 - 85 %
Power requirements	48V DC
Volume control	Digital
Voice codecs	G.722
Backlight color	-
Display resolution	320 x 160 pixels
Safety	UL/C-UL; CE Mark-1; EN 60950-1; IEC 60950-1; AS/NZS 60950
Certification	- FCC Part 15 (CFR 47) Class B - ICES-003 Class B - EN55022 Class B - CISPR22 Class B - AS/NZS CISPR 22 Class B - VCCI Class B - EN55024 - EN61000-3-2; EN61000-3-3 - ROHS - Anatel - GOST - C-tick - CCC
Compliance industry standards	IEEE 802.3af; IEEE 802.1p;IEEE 1329; RFC 1889

Weight and Dimensions

Weight	2045 g
