Polycom SoundStation IP 6000 Manual

960 Stewart Drive Sunnyvale, CA 94085 USA Phone +1.408.331.3300 +1.877.80SHORE Fax +1.408.331.3333 www.ShoreTel.com
- 12 -

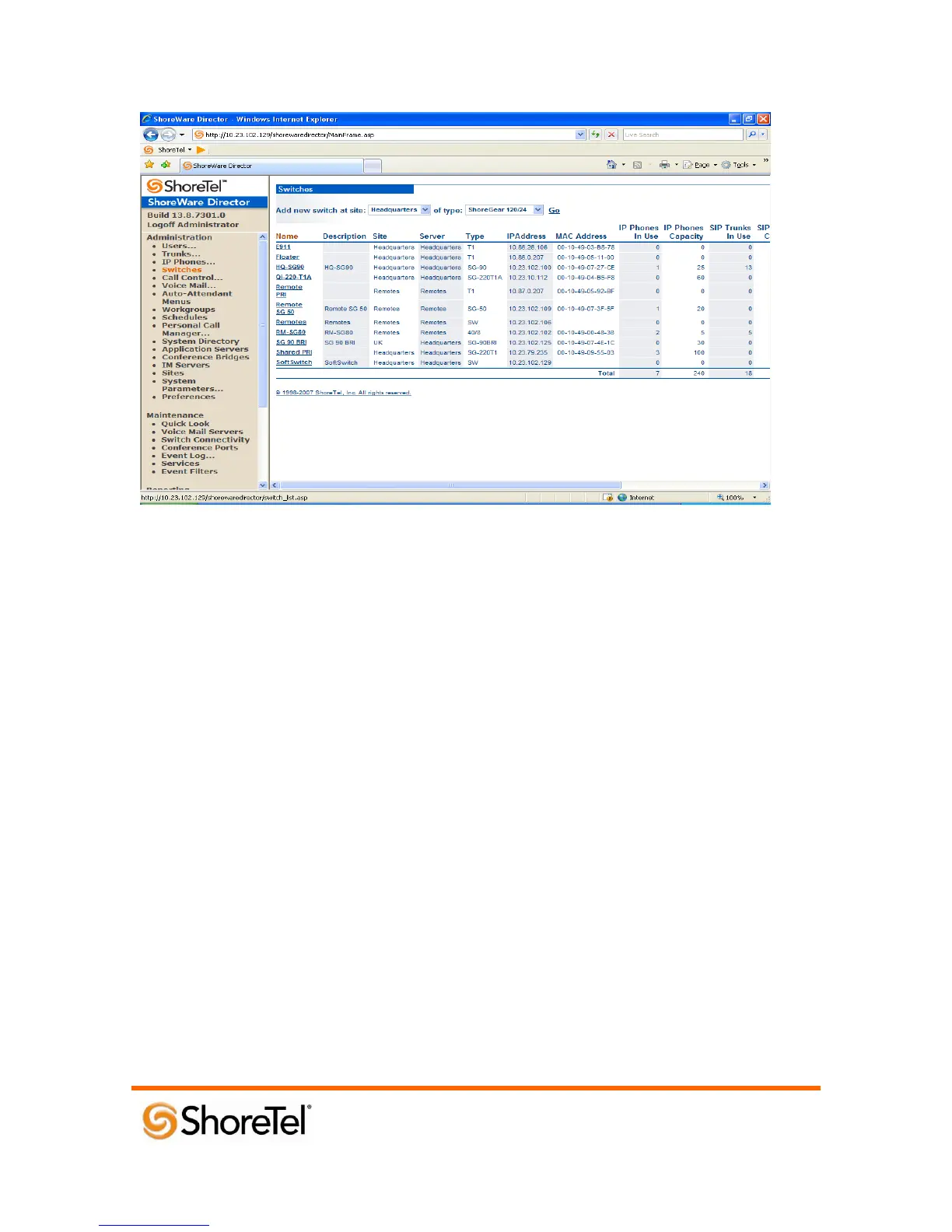

Figure 4 – Administration/Switches
This action brings up the “Switches” screen. From the “Switches” screen, simply select the name of the
switch to configure. The “Edit ShoreGear …Switch” screen will be displayed. Within the “Edit
ShoreGear …Switch” screen, define one of the “Port Type” settings from the available ports to “100
SIP Proxy” (Figure 5), then save the change.
Note: If your installation requires more than 100 SIP extensions, configure the “Port Type” as
“100 SIP Proxy” as necessary (i.e. two ports configured for “100 SIP Proxy” will provide 200 SIP
extensions).

Polycom SoundStation IP 6000 Specifications

General

Network Interface	10/100 Ethernet
Power over Ethernet (PoE)	Yes, IEEE 802.3af
SIP Protocol Support	Yes
Connectivity Technology	Wired
Echo Cancellation	Yes
Noise Reduction	Yes
Speakerphone	Full-duplex
Microphones	3 cardioid microphones
Microphone Type	Cardioid
Display	Backlit LCD display
Audio Technology	HD Voice, Acoustic Clarity Technology
Protocols	SIP
Network Ports	1
Power Source	PoE or optional AC adapter
Weight	1.75 lbs
Compliance	FCC
Dimensions	14.5 x 12.25 x 2.5 in (36.8 x 31.1 x 6.4 cm)
