Polycom SoundStation IP 6000 Manual

960 Stewart Drive Sunnyvale, CA 94085 USA Phone +1.408.331.3300 +1.877.80SHORE Fax +1.408.331.3333 www.ShoreTel.com
- 18 -

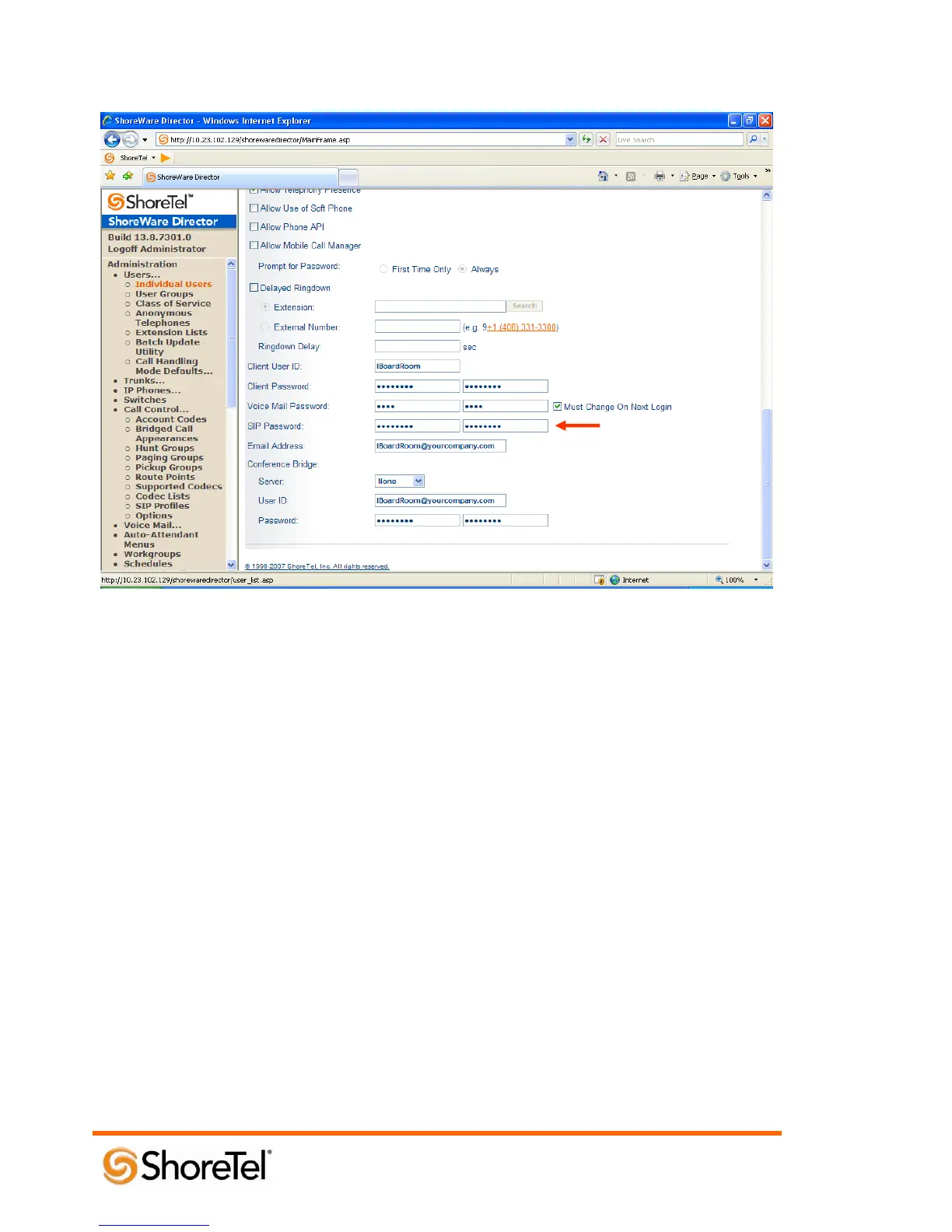

Figure 11 – Individual User SIP Settings
There is no default “SIP Password”: it is masked with the appearance that there is, but don’t be confused to think
that there’s a default password. You can modify it to any value you wish, but be certain to note what you changed it
to, as you will need it when configuring the SoundStation parameters. Save your changes.
SIP Profiles
ShoreWare Director’s “Call Control…” section contains an “SIP Profiles” option. ShoreTel 8 comes standard with
a “_System” and “_ShorePhoneIP8000” SIP profiles (they cannot be deleted - only disabled). By default, the
SoundStation system utilizes the “_System” profile. In order to optimize the functionality, you will need to add a
custom profile. This is accomplished from ShoreWare Director by selecting “Administration” followed by
“Call Control…,” then “SIP Profiles.” This action brings up the “SIP Profiles” screen. At the top of the
page below the “SIP Profiles List”, select the “New…” radio button, as shown in Figure 12.

Polycom SoundStation IP 6000 Specifications

General

Network Interface	10/100 Ethernet
Power over Ethernet (PoE)	Yes, IEEE 802.3af
SIP Protocol Support	Yes
Connectivity Technology	Wired
Echo Cancellation	Yes
Noise Reduction	Yes
Speakerphone	Full-duplex
Microphones	3 cardioid microphones
Microphone Type	Cardioid
Display	Backlit LCD display
Audio Technology	HD Voice, Acoustic Clarity Technology
Protocols	SIP
Network Ports	1
Power Source	PoE or optional AC adapter
Weight	1.75 lbs
Compliance	FCC
Dimensions	14.5 x 12.25 x 2.5 in (36.8 x 31.1 x 6.4 cm)
