22-92 PN-0908073 Rev. 11
PS 164-2
THE ART OF WELDING
FA 7
FA 9
FA 5
FA 12
FA 13
FA 2
FA 4
FA 3
FA 11
FA 10
FA 1
FA 8
FA 6

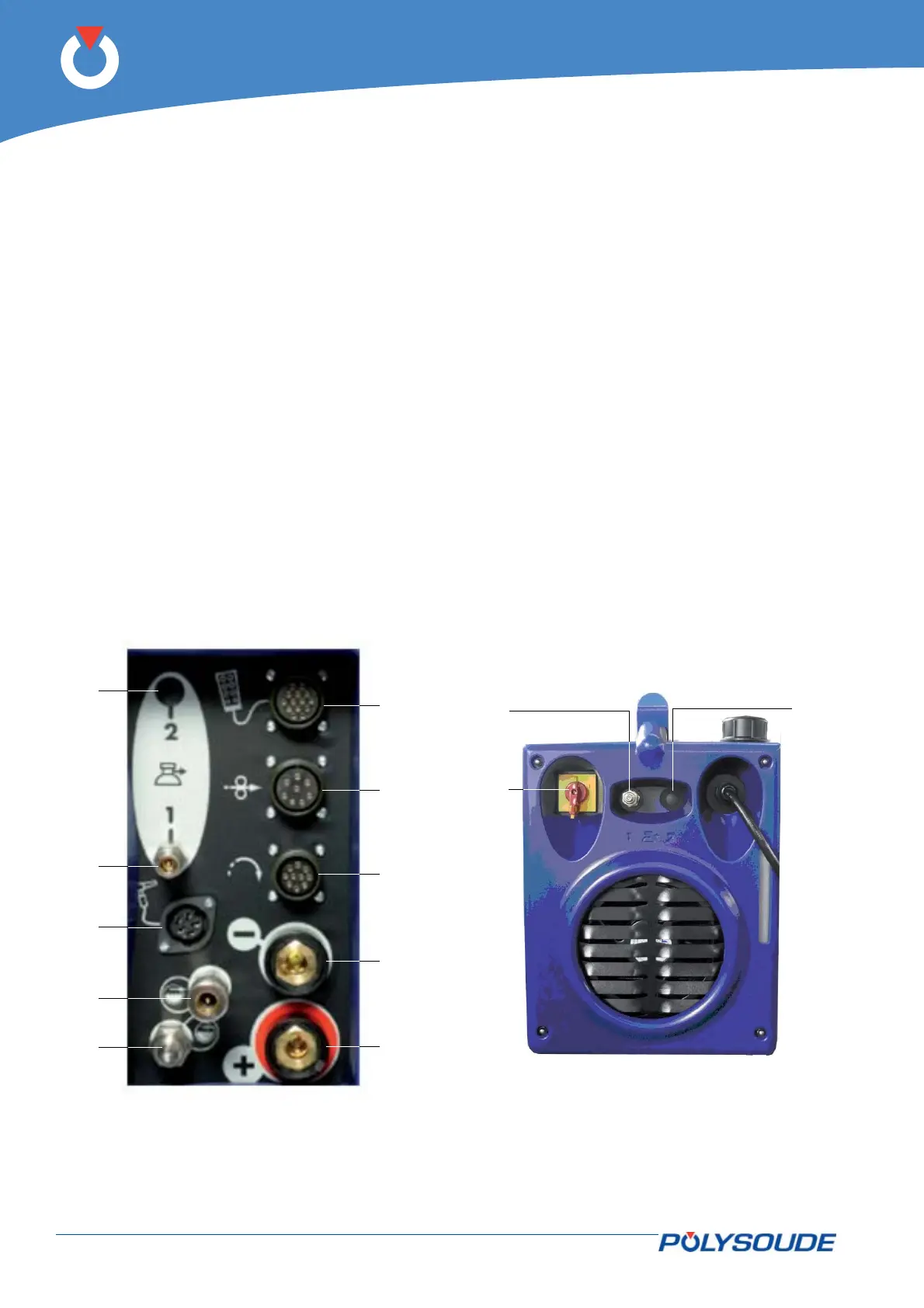

4. 4. Controls
4. 4. 1. Front panel
FA 2 Connection for the remote control pen-
dant cable.
FA 3 Connection for the rotation motor cable.
FA 4 Connection for the wire feed unit cable.
FA 5 Connection for manual torch commands
or for manual commands for MW heads.
FA 7 Connection for a second gas [backing
gas] (option).
FA 9 Connection for the torch shielding gas
(Female quick gas connector 01514008)
FA 10 Connection for the ground cable.
FA 11 Connection for the electrode cable.
FA 12 Coolant outlet (Female quick water
connector 01514007)
FA 13 Coolant return (Male quick water connec-
tor 01514009)
Fig. 4.12 - Front panel
4. 4. 2. Back panel
FA 1 On/off switch.
FA 6 Connection of a second gas inlet [bac-
king gas] (option).
FA 8 Connection of the torch shielding gas in-
let.
Fig. 4.13 - Back panel
