Polysoude PS 164-2 - Synopsis; Fig. 4.14 - Synopsis

PN-0908073 Rev. 11 23-92
PS 164-2
THE ART OF WELDING
SY 27
SY 28SY 29
SY 17
SY 4
SY 3
SY 2
SY 1
SY 7 SY 8 SY 9
SY 6
SY 5
SY 10 SY 11 SY 12 SY 13 SY 14 SY 15 SY 25
SY 26
SY 30
SY 21
SY 23
SY 24
SY 22
SY 20
SY 19
SY 18
SY 16
4. 4. 3. Synopsis
SY 1 Indicator "Printer mode".
SY 2 Indicator "Print report when weld cycle is
fi nished".
SY 3 Indicator "Current mode".
SY 4 Indicator "With pulsed current".
SY 5 Indicator "Forward rotation".
SY 6 Indicator ‘Reverse rotation"
SY 7 Indicator "Rotation mode".
SY 8 Indicator "Pulsed rotation speed".
SY 9 Indicator "With wire ".
SY 10 Indicator "Wire pushing mode".
SY 11 Indicator "Pulsed wire speed".
SY 12 Print a program key and indicator "Prin-
ting in process".
SY 13 Loading a program from the memo card
key and indicator "Loading in process".
SY 14 Saving a program on the memo card key
and indicator "Saving in process".
SY 15 Key to program sector positioning or for
entering the date and time.
SY 16 Key to choose basic programs from the
machine memory.
SY 17 Key for moving inside the synoptic.
SY 18 Key for moving inside the synoptic.
SY 19 Key for moving inside the synoptic.
SY 20 Key for moving inside the synoptic.
SY 21 Key for increasing parameter values.
SY 22 Key for decreasing parameter values.
SY 23 Enter key.
SY 24 Key for deleting programs or sectors
(dust-bin).
SY 25 Display.
SY 26 Key operated switch "Modifi cation per-
mitted or not".
SY 27 Port for memo card.
SY 28 Printer.
SY 29 Paper advance / reprint weld cycle
report.
SY 30 Keyswitch to choose the current range
(50 A / 160 A)

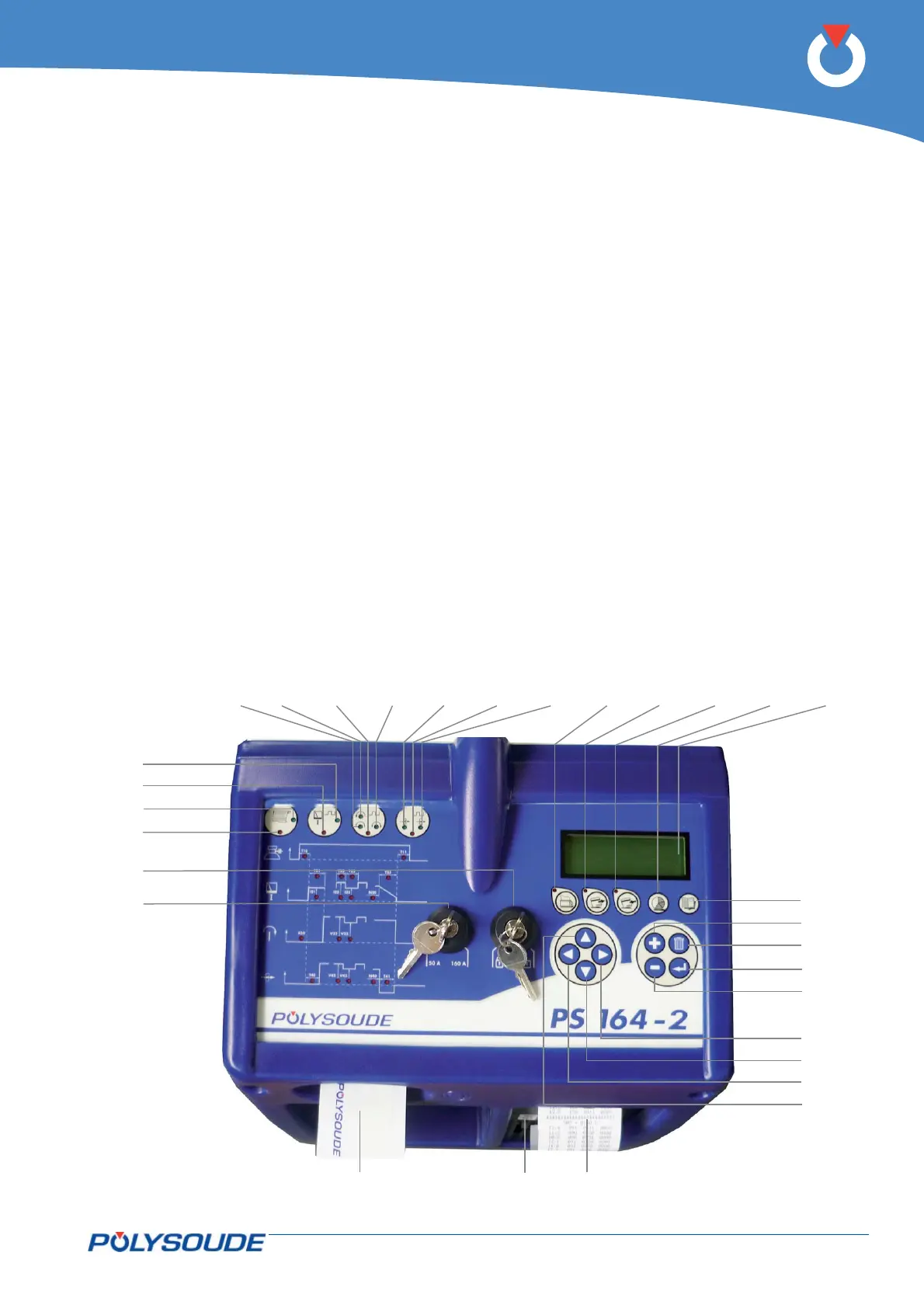

Fig. 4.14 - Synopsis
