44-92 PN-0908073 Rev. 11
PS 164-2
THE ART OF WELDING
01-NANTES
V32=200
‰
01-NANTES
S1 V32=200
‰
S2?
01-NANTES N=0001 D
S1 V32=200
‰
S2 V32=200
‰
01-NANTES N=0100 D
S1 V32=200
‰
S2 V32=200
‰
01-NANTES N=0100 D
S1 V32=200
‰
S2 V32=200
‰
18
19
The value of the parameter "N" for the actual sec-
tor must be higher than the value of the preceeding
sector and lower than the value "N20" (start of the
downslope). If this is not the case, the value will not
be accepted.

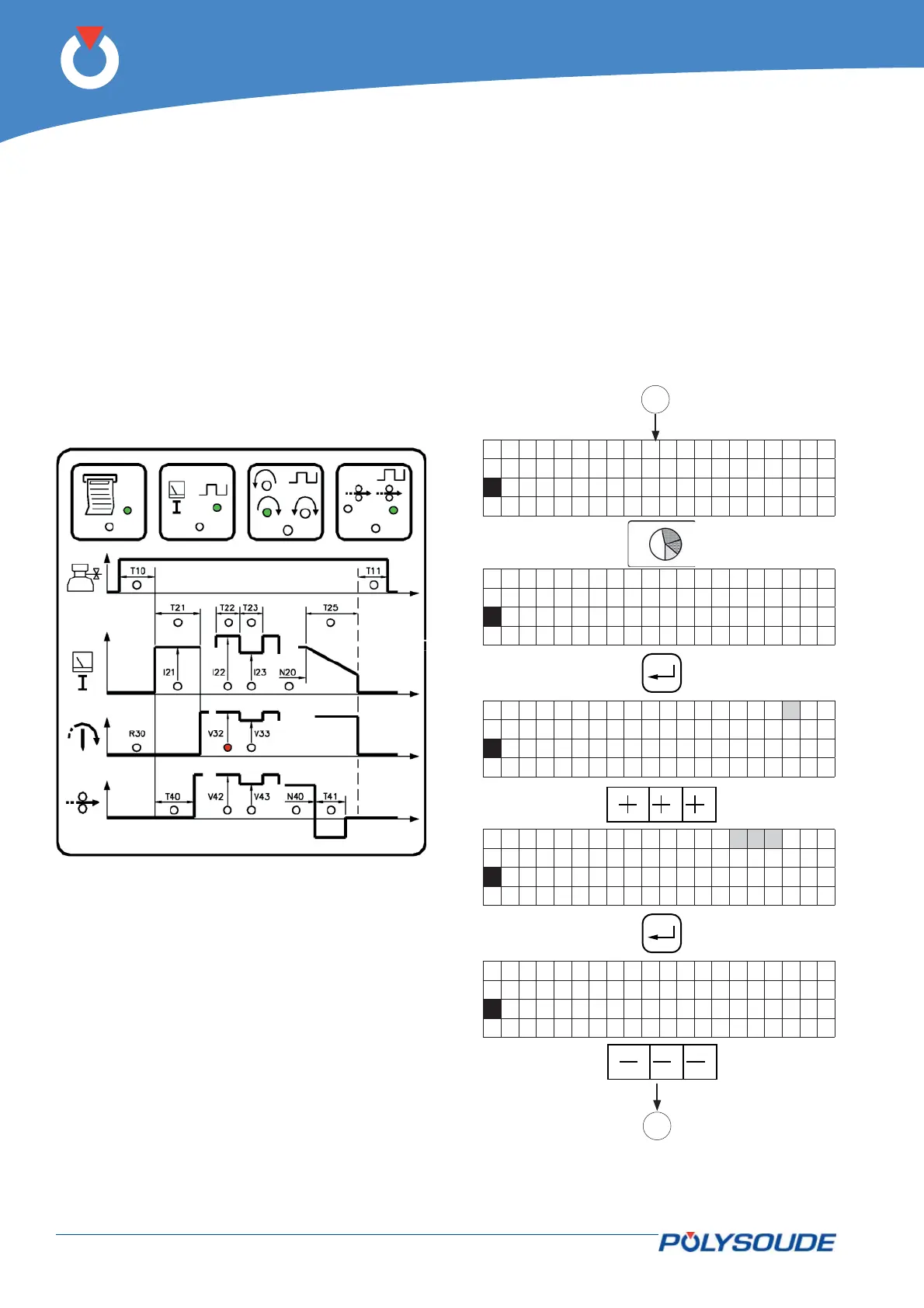

5. 3. 5. Programming of sectors
5. 3. 5. 1. Creation of a sector
A sector is characterized by its number (S) and the
value (N) indicating the sector start position.
If a sector is created, the actual values of the weld
parameters are automatically transfered (that’s why
the programming of a sector should be completely
fi nished before the next one is created).
