System Overview
RUBY-9715VG2AR User’s Manual 1-7
Dual Gigabit Ethernet controller is Intel 82573L that based on PCI Express x1
interface on ICH7-R. The dedicated PCI Express x1 interface separates Ethernet
traffic with other I/O onboard.
Super I/O chip, W83627THF is responsible for PS/2 keyboard/mouse, UARTs, FDC,
hardware monitor, Parallel, Watch Dog Timer and Infrared interface.
Audio codec, ALC202A is an 18-bit, full duplex AC’97 2.2 compatible stereo audio
codec. It provides two pairs of stereo outputs with independent volume controls, a
mono output and multiple stereo outputs, along with flexible mixing, gain and mute
functions.

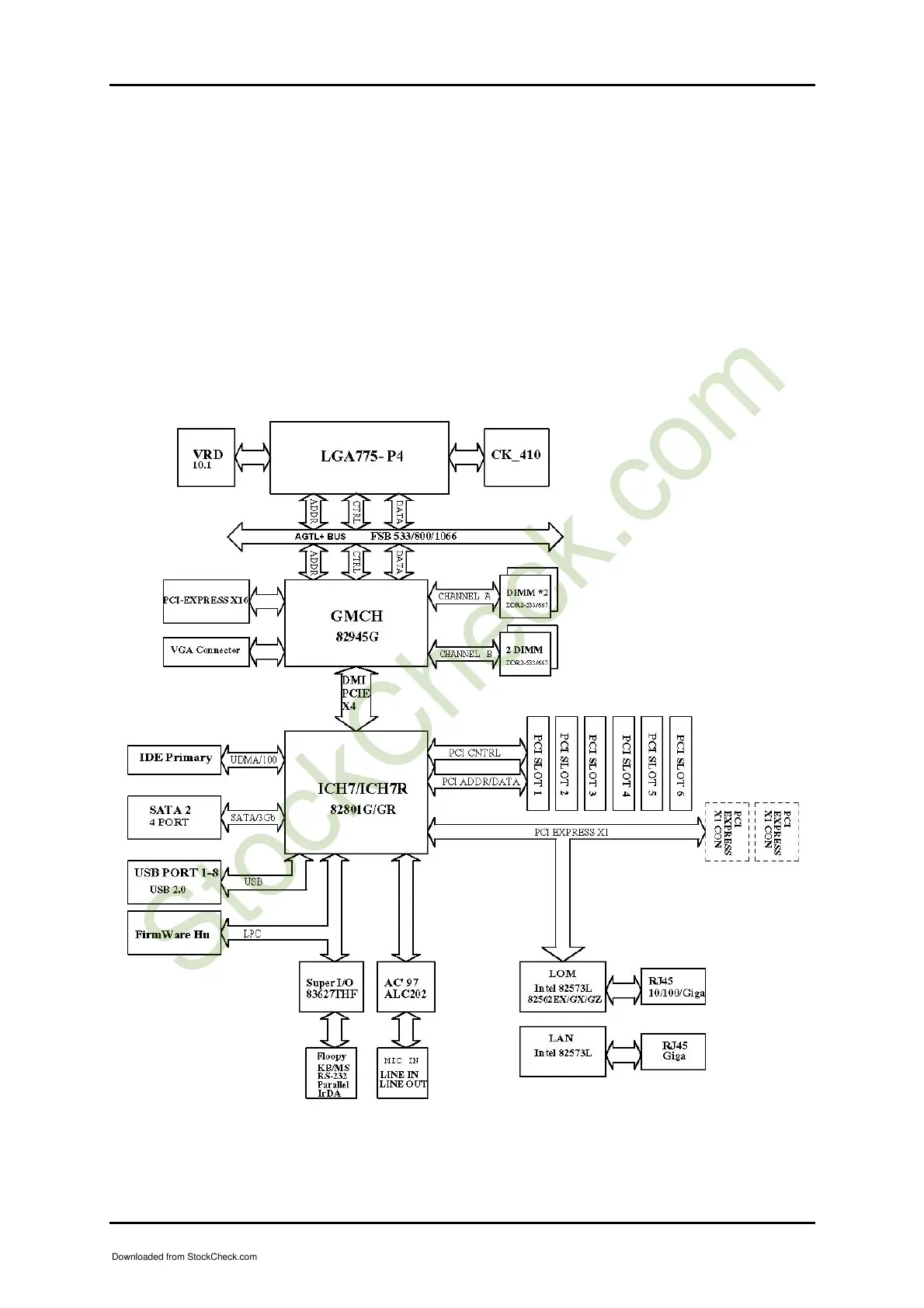

RUBY-9715VG2AR Block Diagram
