Hardware Configuration
RUBY-9715VG2AR User’s Manual 2-1
Chapter 2
Hardware Configuration
This chapter gives the definitions and shows the positions of jumpers, headers and
connector. All of the configuration jumpers on RUBY-9715VG2AR are in the proper
position. The default settings shipped from factory are marked with a star (Ì).
2.1 Jumper Setting

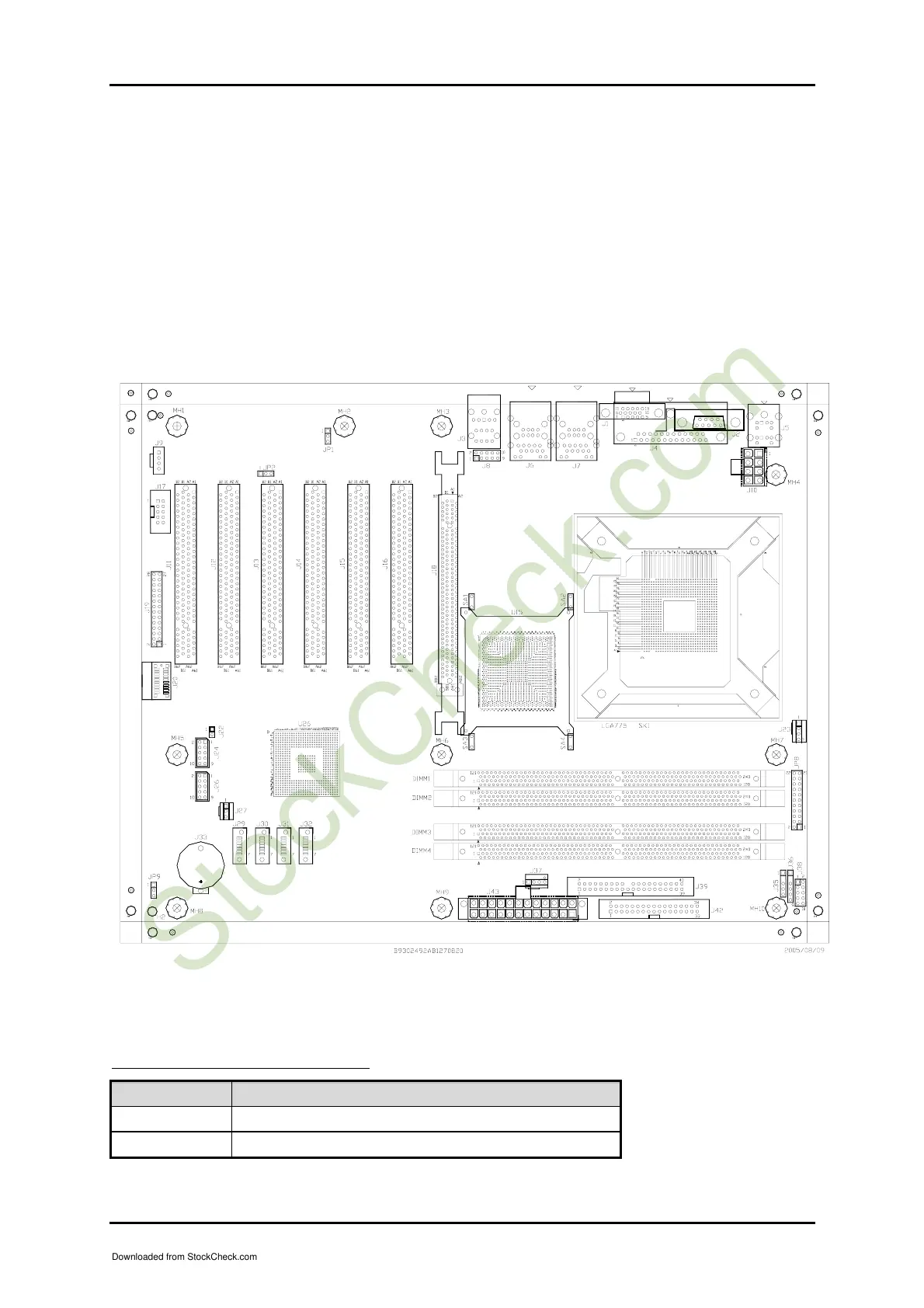

Figure 2-1 RUBY-9715VG2AR Jumper & Connector Location
JP1 : LOM ENABLE/DISABLE
JP1 Function
1-2 Short ENABLE by BIOS Ì
2-3 Short DISABLE
