System Overview
RUBY-9715VG2AR User’s Manual 1-6

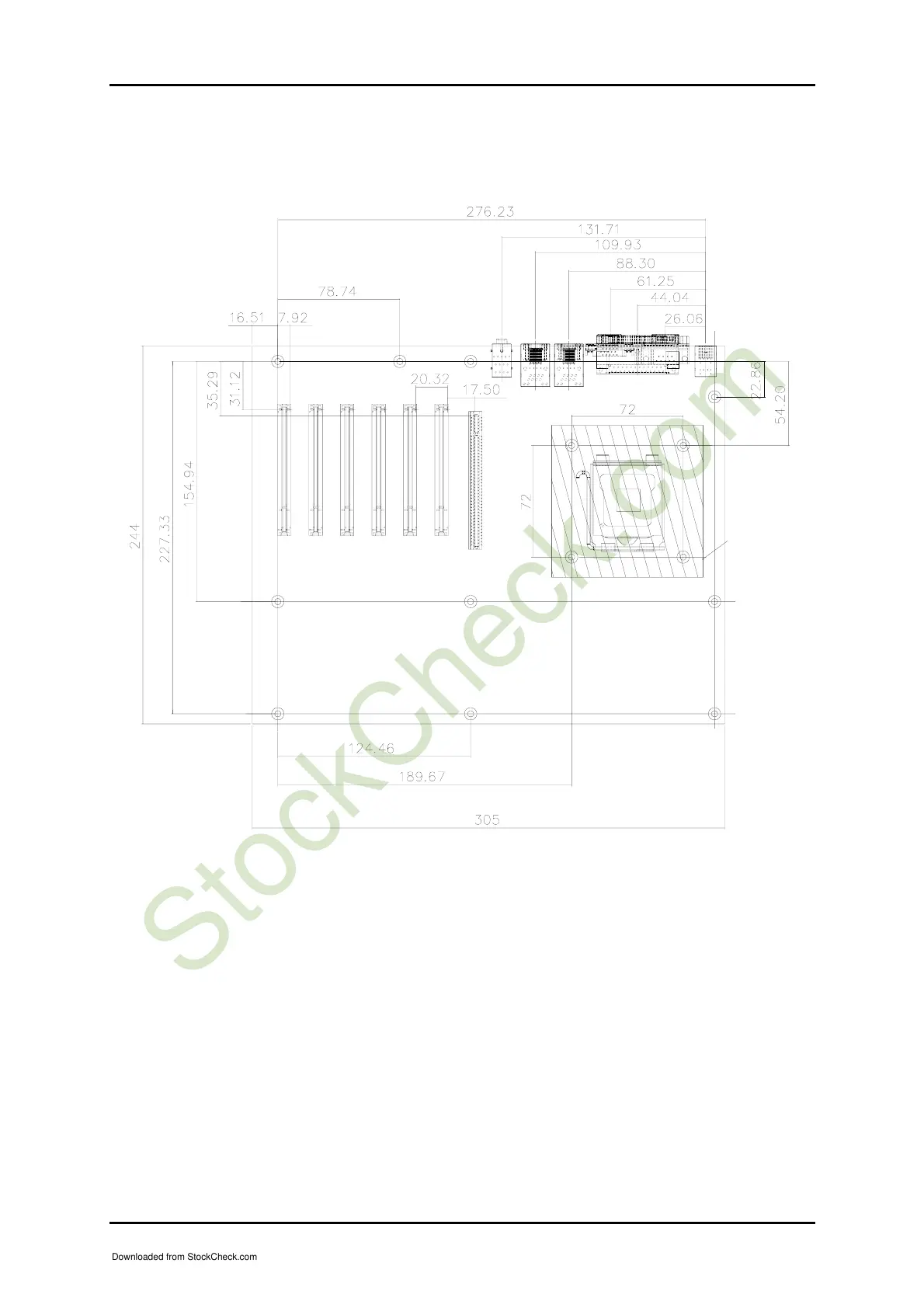

1.3.1 Mechanical Drawing
1.4 System Architecture
RUBY-9715VG2AR adopts Intel’s latest PCI Express chipset, 945G & ICH-7R that
support Intel Pentium D, Pentium 4 & Celeron D processor with Hyper-Threading,
Extended Memory 64 and Dual-core Technologies; Dual channel DDR2 memory up
to 4GB capacity with four DIMMs; GMA950 graphic controller with DVMT 3.0
technology that share system memory up to 224MB; PCI Express x16 interface mux
with SDVO port that offers high-end graphic add-in card or ADD2/+ add-in card;
six PCI slots and four proprietary PCI Express x1 interface.
