1 Neutral position 3 Delta position
2 Star position

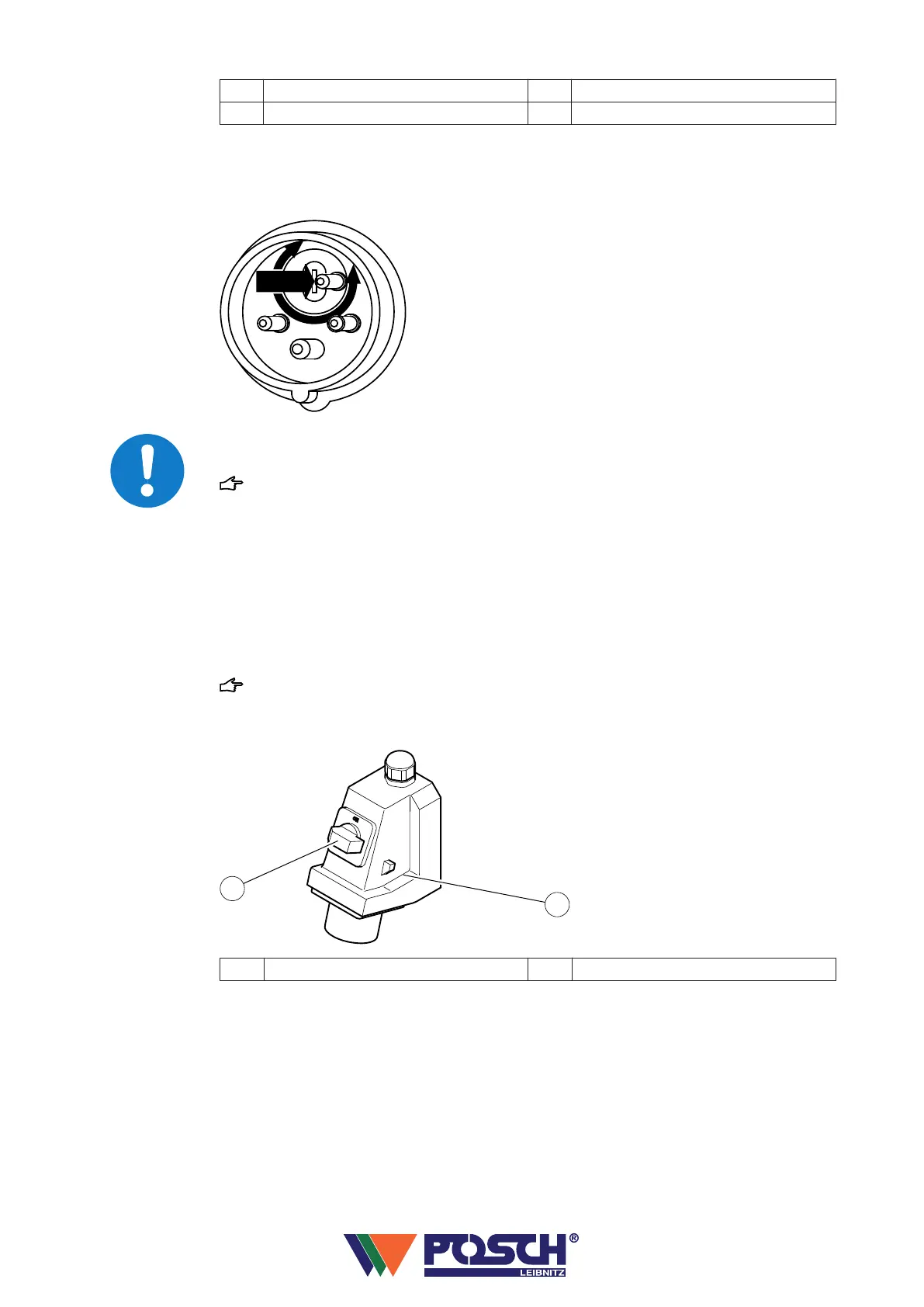

If the electric motor will not start (red light for rotational direction detection is on):
A phase inverter in the plug controls the direction of rotation of the motor (press in the disc
in the plug with a screwdriver and turn 180˚).
A tight plug connection can rip the CEE plug out of the switch housing.
▪ This can be remedied using standard plugs and a silicone spray.
Any such damage to the switch is not covered by the guarantee.
Type E15
Connect the machine to the mains:
▪ Mains voltage 400 V (50 Hz)
▪ Circuit-breaker 32 A (tripping characteristic C)
▪ For the feed, a cable cross-section of at least 10 mm² must be used.
This cable cross-section is only a minimum specification. In the event of a lengthy
supply cable, its size must be determined by an electrician.
▪ Switch on the master switch (on the plug).
1
Plug 2 Master switch
▪ First, turn the switch to the Y position and wait for the motor to run up. Then turn the
switch to the delta position.
Start-up
