Start-up
Before starting to operate the machine, please check that the protective and safety systems
are working and also the hydraulic hoses and oil level.
Before each start-up, the condition of the electrical cables must be checked.
If a fault occurs during operation, the machine must be shut down immediately and secured
so it cannot be switched on accidentally or started-up by unauthorised persons.
Driven by electric motor (type E)
Machines with 400 V motor
The machine must only be operated on electric circuits equipped with 30 mA FI fault current
protection or a Portable Residual Current Device (PRCD).
Work on electrical equipment must only be carried out by qualified electricians.
Type E7.5
Connect the machine to the mains:
▪ Mains voltage 400 V (50 Hz)
▪ Circuit-breaker 16 A (tripping characteristic C)
▪ For the feed, a cable cross-section of at least 4 mm² must be used.
This cable cross-section is only a minimum specification. In the event of a lengthy
supply cable, its size must be determined by an electrician.

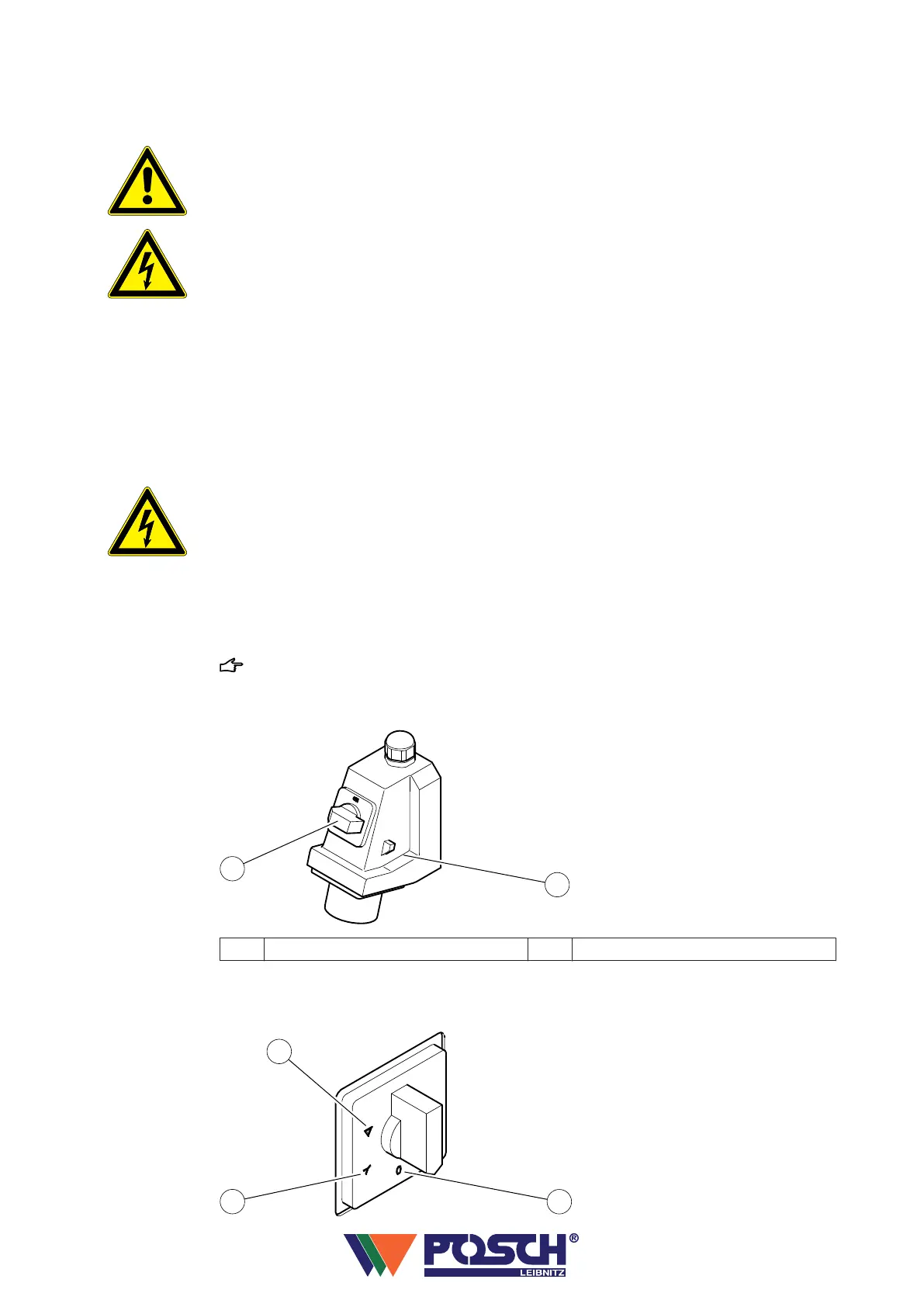

▪ Switch on the master switch (on the plug).
1
Plug 2 Master switch
▪ First, turn the switch to the Y position and wait for the motor to run up. Then turn the
switch to the delta position.
4
4.1
4.1.1
Start-up
15
