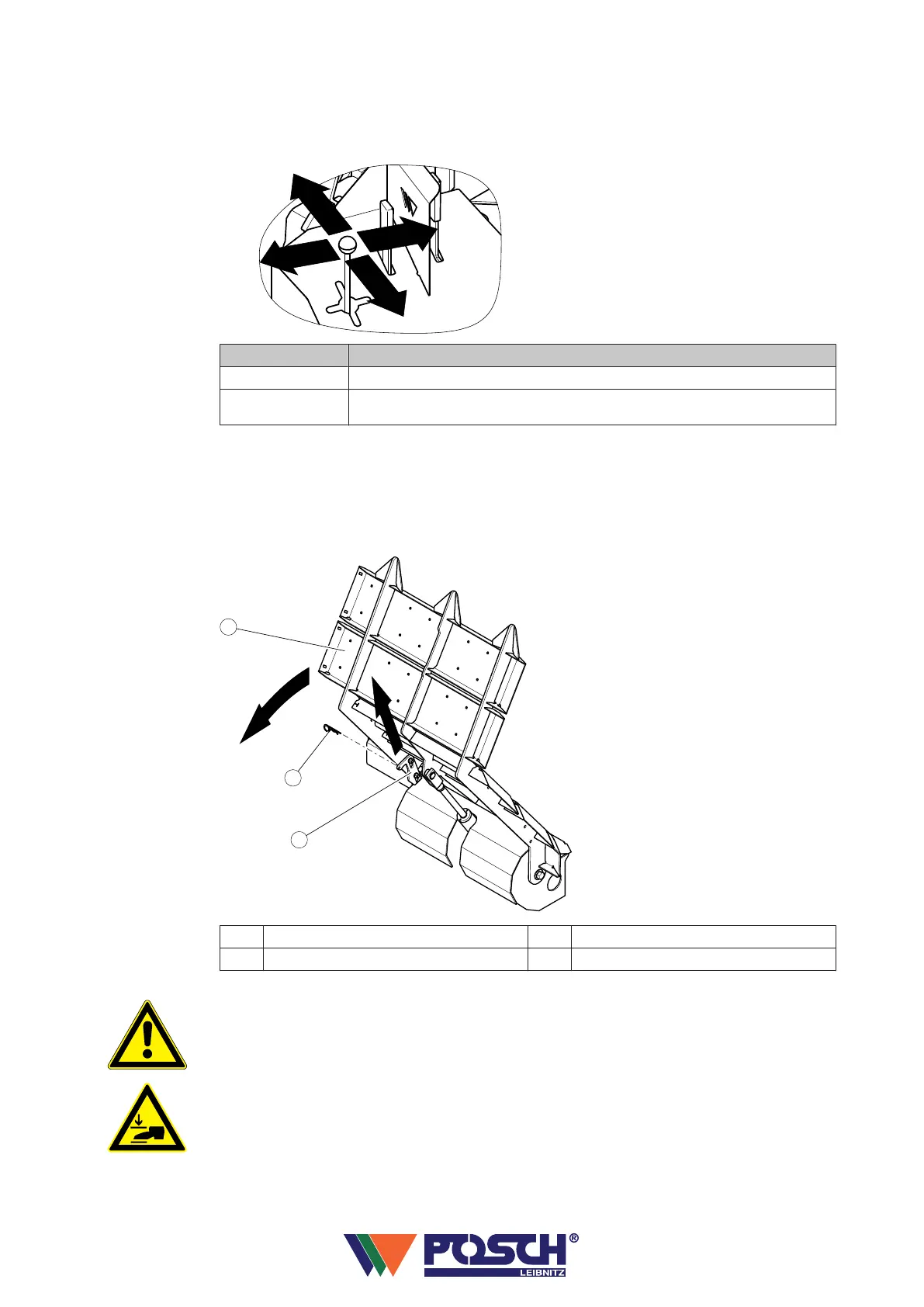

Splitting blade - hydraulic height adjustment
Position Function
I If the control lever is pressed to the left, the spitting blade will move up.
II If the control lever is pressed to the right, the spitting blade will move
down.
This enables the splitting blade to be set in the optimum position for the timber diameter.
Lifting device
1 Lifting device 3 Securing wedge
2 Spring pin
Use the lifting device to lift the log into the splitting trough.
You must lower the lifting device before working with the machine.
Crushing hazard to lower limbs.
When lowering, take care to ensure that you never place a foot below the lifting device.
Working position:
▪ Remove the spring pin and lift up the securing wedge.
5.2
5.3
