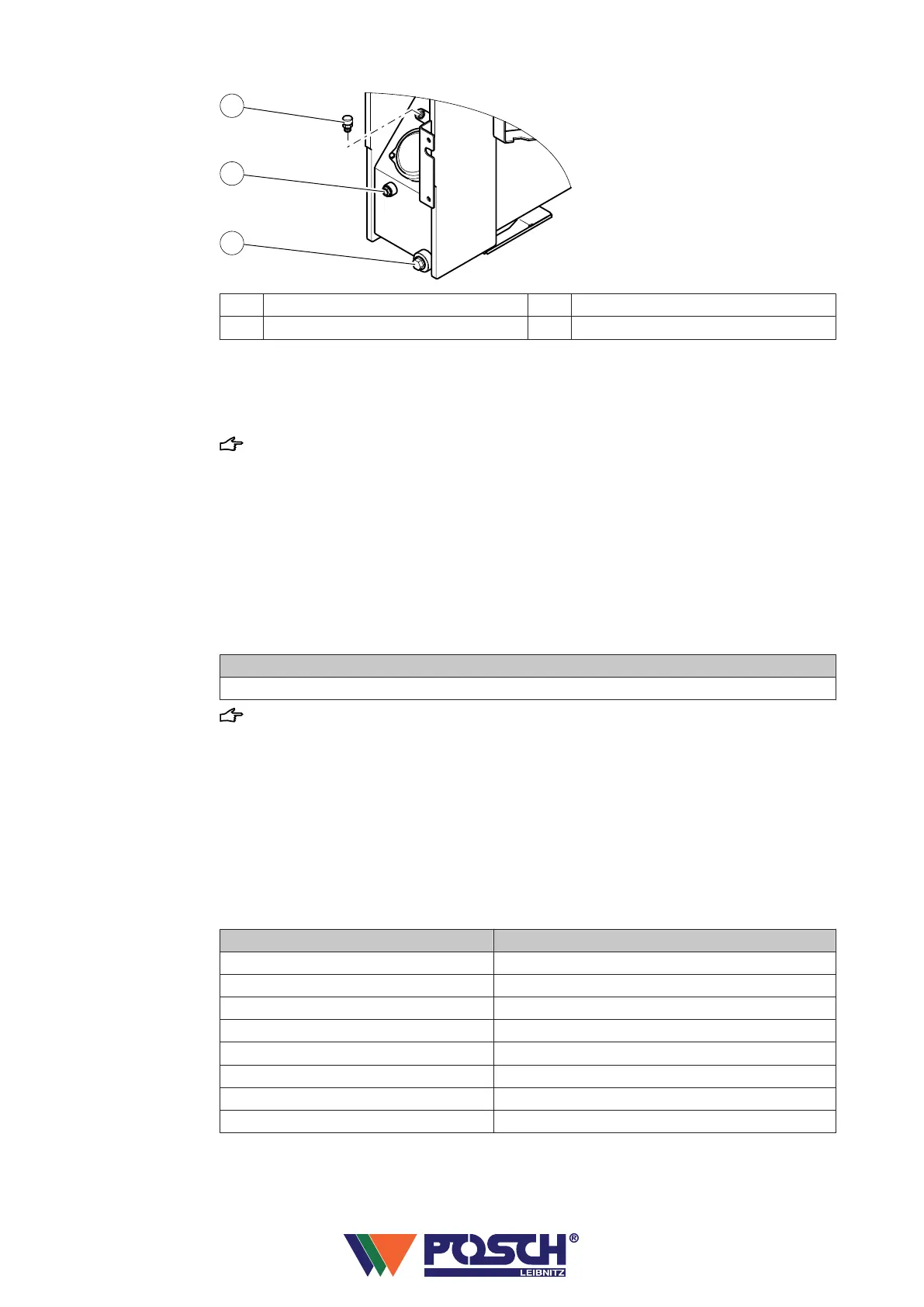

1 Ventilation screw 3 Oil drain screw
2 Oil sight glass
▪ Retract the pusher before changing the oil.
▪ Remove the ventilation screw.
▪ Open the oil drain screw.
The oil drain screw is located on the base of the oil tank.
▪ Drain the old hydraulic oil into a container.
▪ Screw the oil drain screw back into the tank and fill with new hydraulic oil through the
ventilation screw opening.
▪ Screw the ventilation screw into the tank.
▪ Turn on the machine and allow it to run for a short while.
▪ Check the oil level and top up hydraulic oil if necessary.
Total filling capacity of the hydraulic system:
Quantity
65 litres
Please note that the information here concerns initial oil filling. Depending on the type
and variant, the refill quantity may be slightly less (as some of the hydraulic components
are not empty).
Our hydraulic system is filled with OMV HLP M46 hydraulic oil.
This high-quality oil comes highly recommended when changing the oil.
A mixture of products of the same quality poses no problem.
Recommended hydraulic oils
Manufacturer Oil specification
OMV ATF II
SHELL Donax TA
TOTAL BIOHYDRAN SE 46* / AZOLLA ZS 46
ESSO Univis N46
CASTROL Hyspin AWH-M 46
ARAL Vitam VF46
GENOL Hydraulic oil 520
FUCHS Plantohyd 32S * / Renolin B46 HVI
*.....biological hydraulic oils
Maintenance
34
