Using the transmitter
As well as the function buttons, the rotary safety button must also always be used.
Button Position Function
1 - -
2 Splitting cylinder Extend pusher (split)
3 Lifting device Raise
4 Lifting device Lower
5 Adjust blade Raising the splitting blade
6 Adjust blade Lower splitting blade
7 Splitting cylinder Retract pusher
8 - -
Switch off the transmitter after use.
▪ Press emergency stop switch.
Charge battery:
▪ Connect the charger to a 230 V socket.
▪ Insert the battery in the charging unit with the label facing outwards.
– LED is steady - battery is being charged. LED is off or flashing - battery is fully
charged.

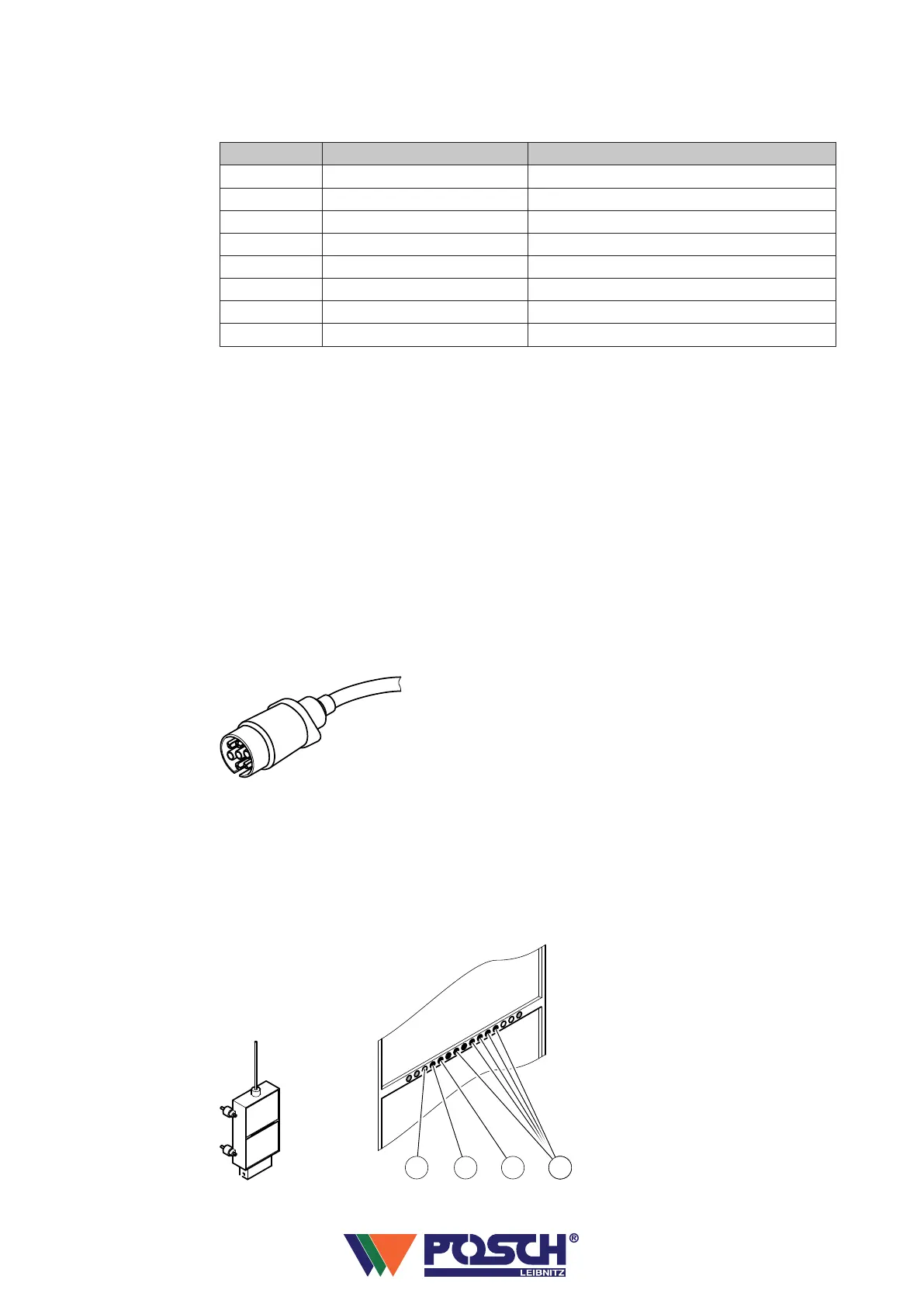

Receiver
1. Connect the 7-pin plug to the tractor.
– Supply voltage 12 V
2. Switch on lights on tractor (depending on model).
– The receiver is now ready for operation.
Functions - receiver
The radio control receiver contains the control LEDs that indicate the operating status of
the radio system.
10.1.2
Special equipment
37
