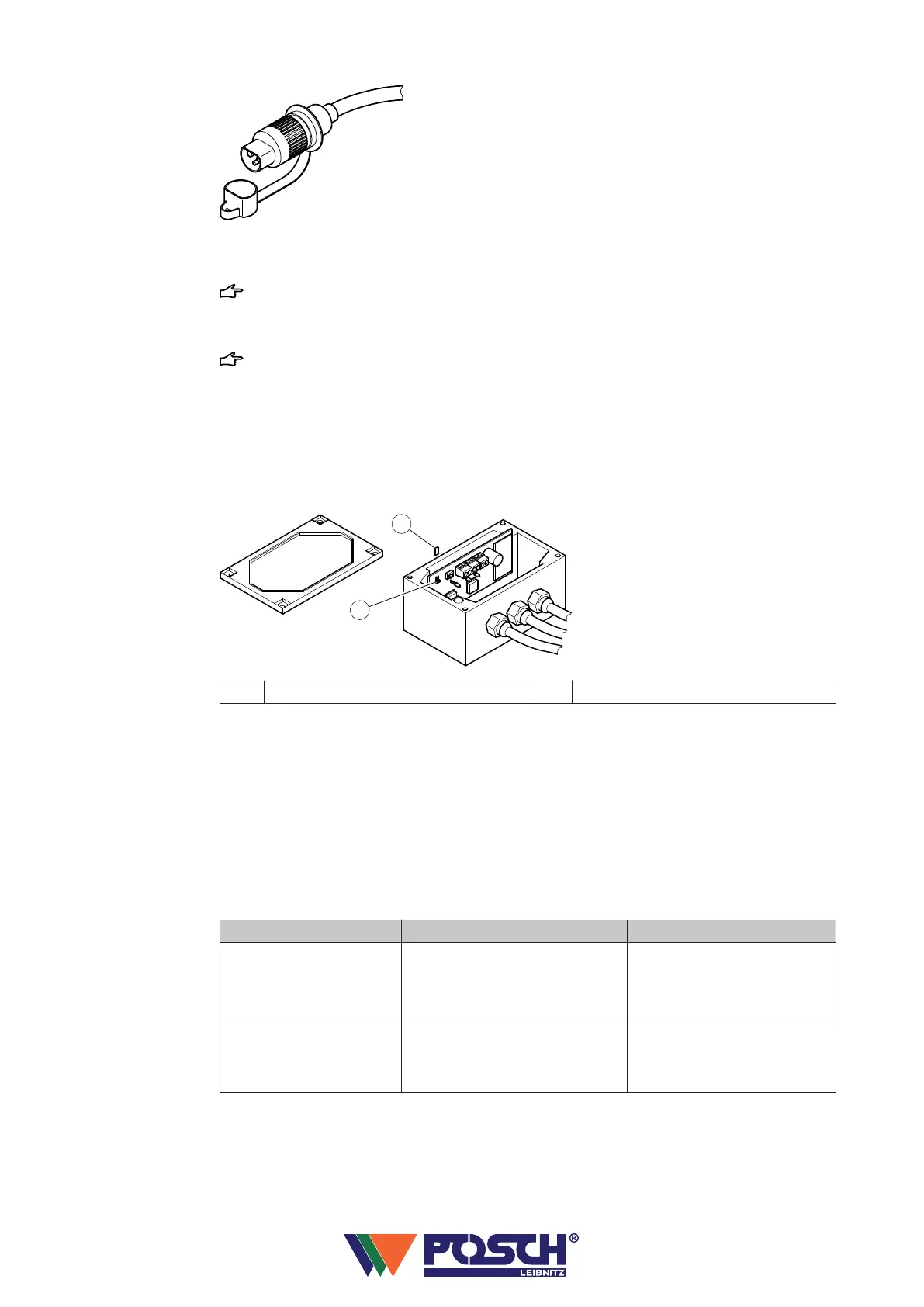

Supply voltage 12 V
16 A Continuous current
Remember to unplug the continuous current plug at the end of work, otherwise the
tractor battery may be drained.
The receiver is now ready for operation.
The minimum voltage must be 11.2 V under load (radio-controlled rope winch
activated), otherwise soft start will not function. If the tractor does not supply this voltage at
the plug socket, the device must be connected directly to the battery.
If you do not have a 3-pole continuous current connection on the tractor, as an alternative
you can connect the 7-pole plug (brown + to 58L blue - to 31).
Switch off soft start:
1
Jumper 2 Multi-pin connector
▪ Disconnect the 3-pin current plug to the tractor.
▪ Remove the housing cover from the receiver by loosening the 4 screws.
▪ Connect the jumper to the two pins of the multi-pin connector.
▪ Close the housing cover of the receiver.
Faults on the radio control
Fault Cause Rectification
No response when
switching on the
transmitter
Emergency stop function is
active
No electricity supply available
Press both transmitter
buttons at the same time for
approx. 5 seconds
Charge rechargeable battery/
use charged battery
Undervoltage warning on
the transmitter (after
short period of operation,
LED flashes red)
Rechargeable battery is not
charged
Rechargeable battery defective
Fully charge rechargeable
battery
Check if the charging process
is running correctly
10.2.2.3
Special equipment
41
