Page 16 of 80 Instruction Manual for AURORA CDD BCG.00613_AA
Part 2 Unpack and Select Installation Location
2.2.1.2 Point the Radio Antenna
In order to boost the signal strength, point the antenna of the CDD in a parallel line to the MICRO
Inverters as shown below.

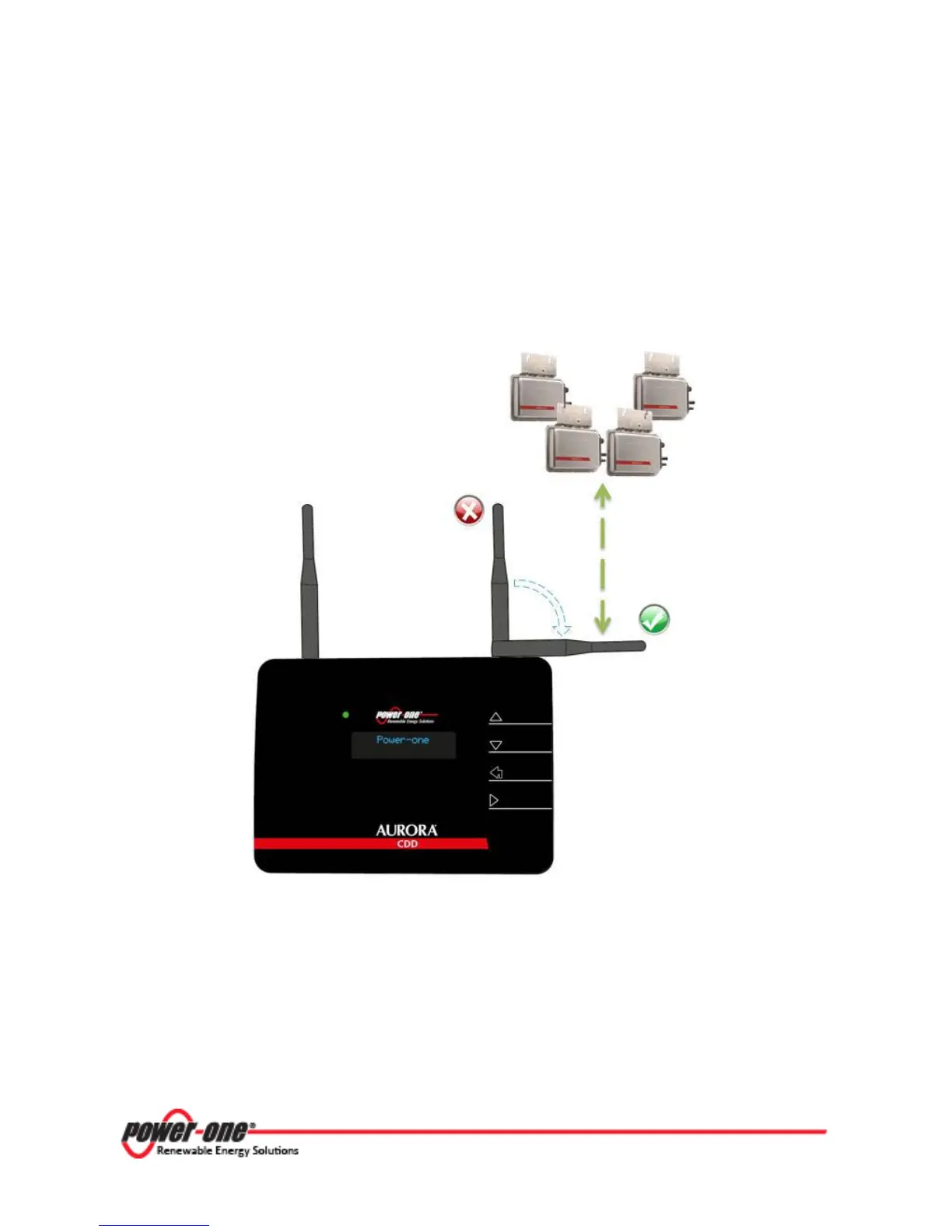

Figure 2-2: Optimal CDD signal strength
When configuring the CDD (see Part 3), it may be necessary to adjust the positioning of the antenna.
