63230-319-204A2 PowerLogic™ Ethernet Gateway
12/2008 Accessing the EGX Over a Network
© 2008 Schneider Electric. All Rights Reserved.
3
ENGLISH

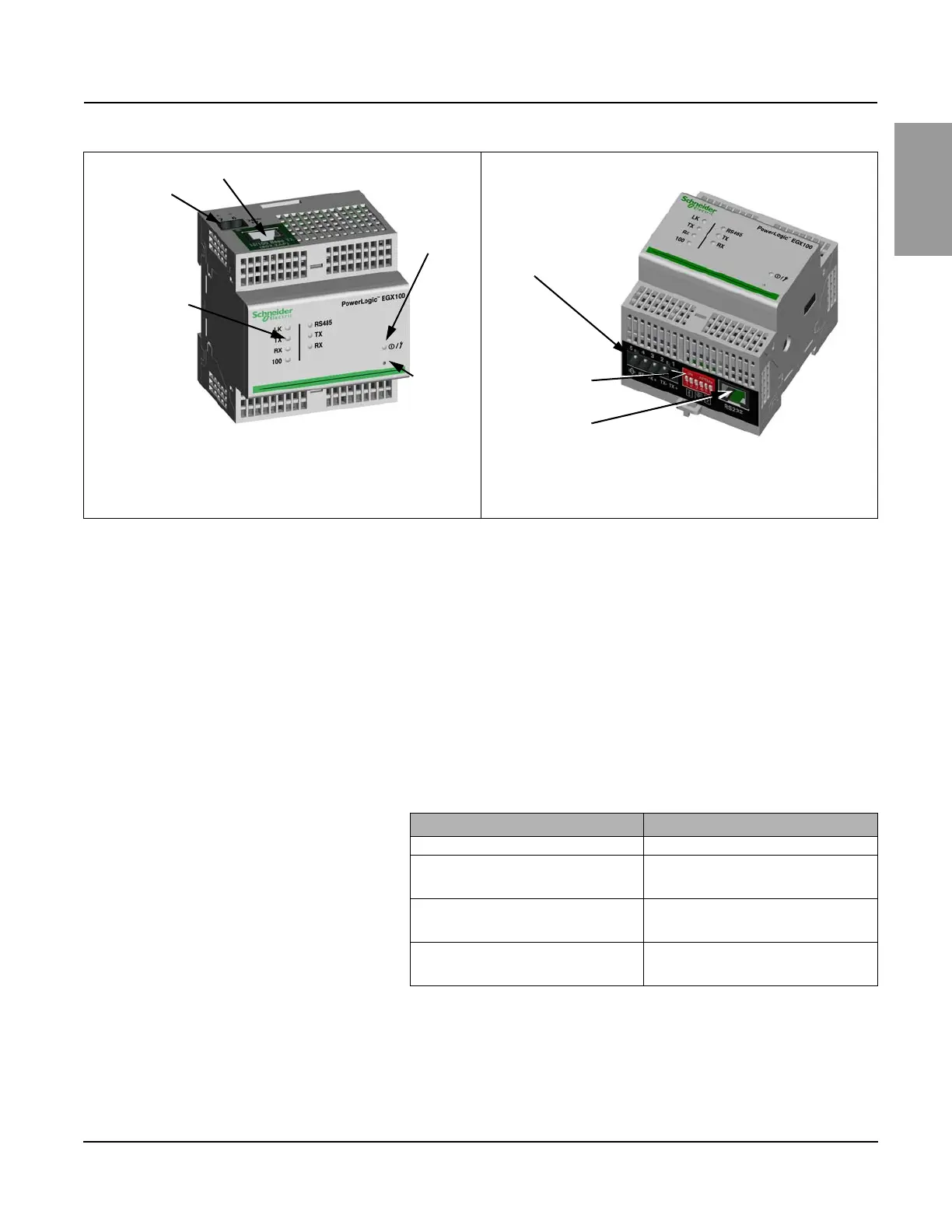

Hardware
Additional Resources
Documentation: Go to www.powerlogic.com, and then click the manual
you want to download.
Firmware: Go to www.powerlogic.com, and then click the firmware file you
want to download.
NOTE: If you do not have a user name and password, follow the instructions
on the web site.
ACCESSING THE EGX OVER A
NETWORK
After you set up the Ethernet parameters (see the installation guide), you
can access the EGX over an Ethernet LAN using Internet Explorer 6.0 or
higher.
Logging into the EGX
Control power
RJ45 Ethernet port
LEDs for Ethernet
and serial
communications
Reset
button
Power and
Status LED
RS485 serial port
Bias, termination,
and 2-wire/4-wire
jumper switches
RS232 serial port
(RJ45 connector)
Action Result
1. Launch Internet Explorer 6.0 or higher. Opens Internet Explorer.
2. In the Address text box, type the address
of your EGX (169.254.0.10 is the default),
then press Enter.
Opens the Login dialog box.
3. Type your user name (Administrator is the
default) and password (Gateway is the
default) into the text boxes, then click OK.
Enters the user name and password, then
opens the EGX home page.
4. Click Setup to access the EGX setup page,
or click Diagnostics to access the EGX
diagnostics page.
Opens the Setup or Diagnostics pages.
