Logging Out We recommend logging out whenever you do not need access to the EGX.
To log out of the EGX configuration session, click Logout to end your
session.
EGX USER INTERFACE
OVERVIEW
The EGX ships with seven pre-installed web pages used for EGX setup and
configuration. See Table 1 for a description of each web page.

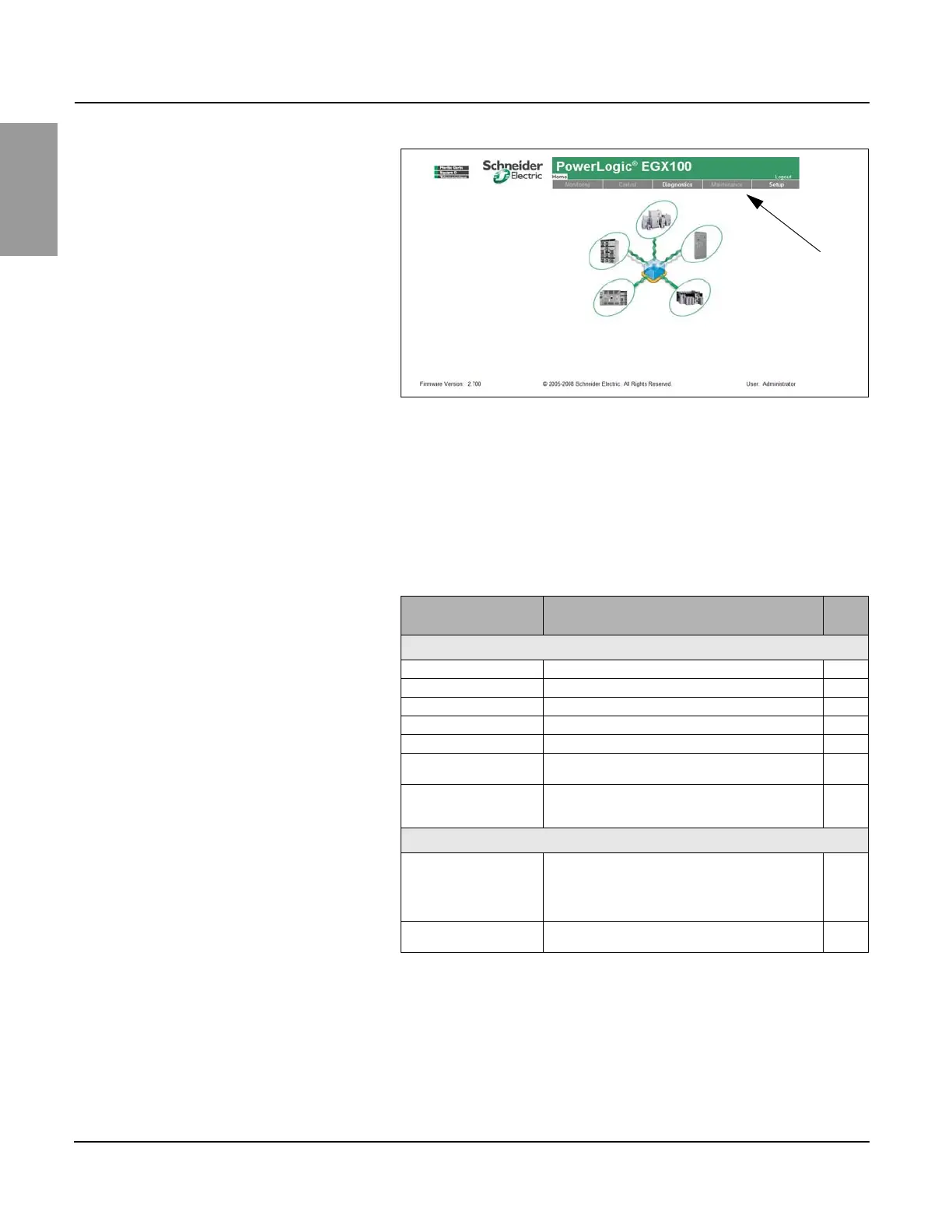

Figure 1: EGX Home Page
Menu
bar
Table 1: EGX static web pages
EGX Web Page Description
See
Page
Setup
Ethernet & TCP/IP Configure Ethernet and TCP/IP communication settings. 5
Serial Port Set up or change serial communication parameters. 7
Device List Identify serial devices on the daisy chain. 8
User Accounts
➀
Create and edit groups and users. 10
Web Page Access
➀
Select web page access rights for each user group. 11
Modbus TCP/IP Filtering
➀
Set up which IP addresses can access the EGX through
Modbus TCP/IP.
12
SNMP Parameters
➀
Enable and configure the Simple Network Management
Protocol (SNMP), which allows the EGX to identify itself
to network devices requesting SNMP data.
13
Diagnostics
Statistics Displays diagnostic data used to troubleshoot network
problems. This page also contains information about
your specific EGX, including the serial number,
manufacturing date, and Media Access Control (MAC)
address.
14
Read Device Registers Allows EGX administrators to read register data from a
serial device connected to the EGX.
17
➀
Accessible by administrator only
