K6 K8 K10 K20 | SERVICE MANUAL
-18Vdc 240mA 18Vdc 850mA 30Vdc 150mA
Increase the Rail Bus voltage gradually (we suggest 5 Vdc per step) untill it reaches 30 Vdc.
Verify that the consumption does not exceed 1.2 A (typical 850mA).
With Rail Bus voltage at +30 Vdc, verify the consumption of the auxiliary voltages; it should be approximatively 0,11 A with spikes up
to 0.15 A

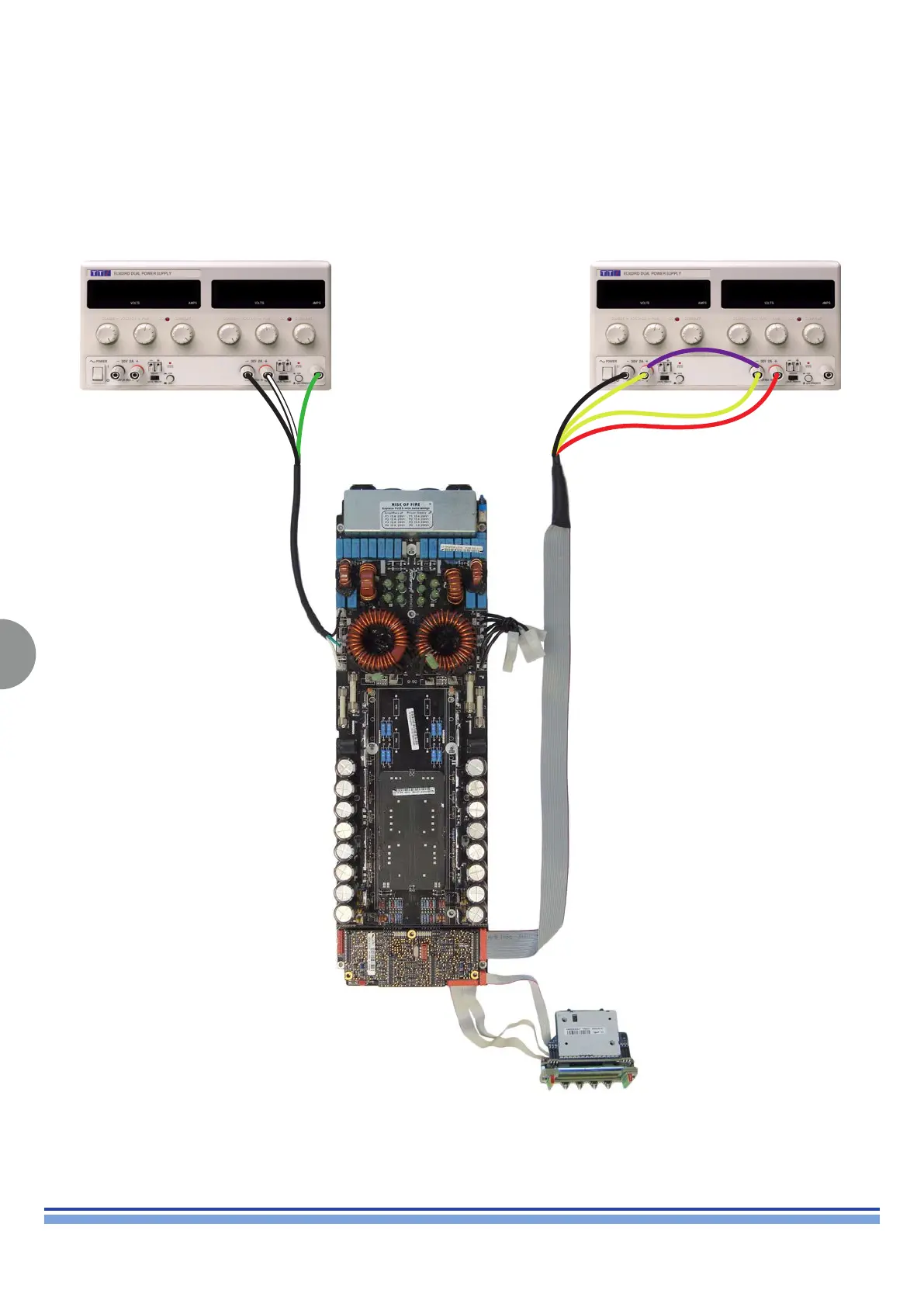

As portrayed in the picture below.
