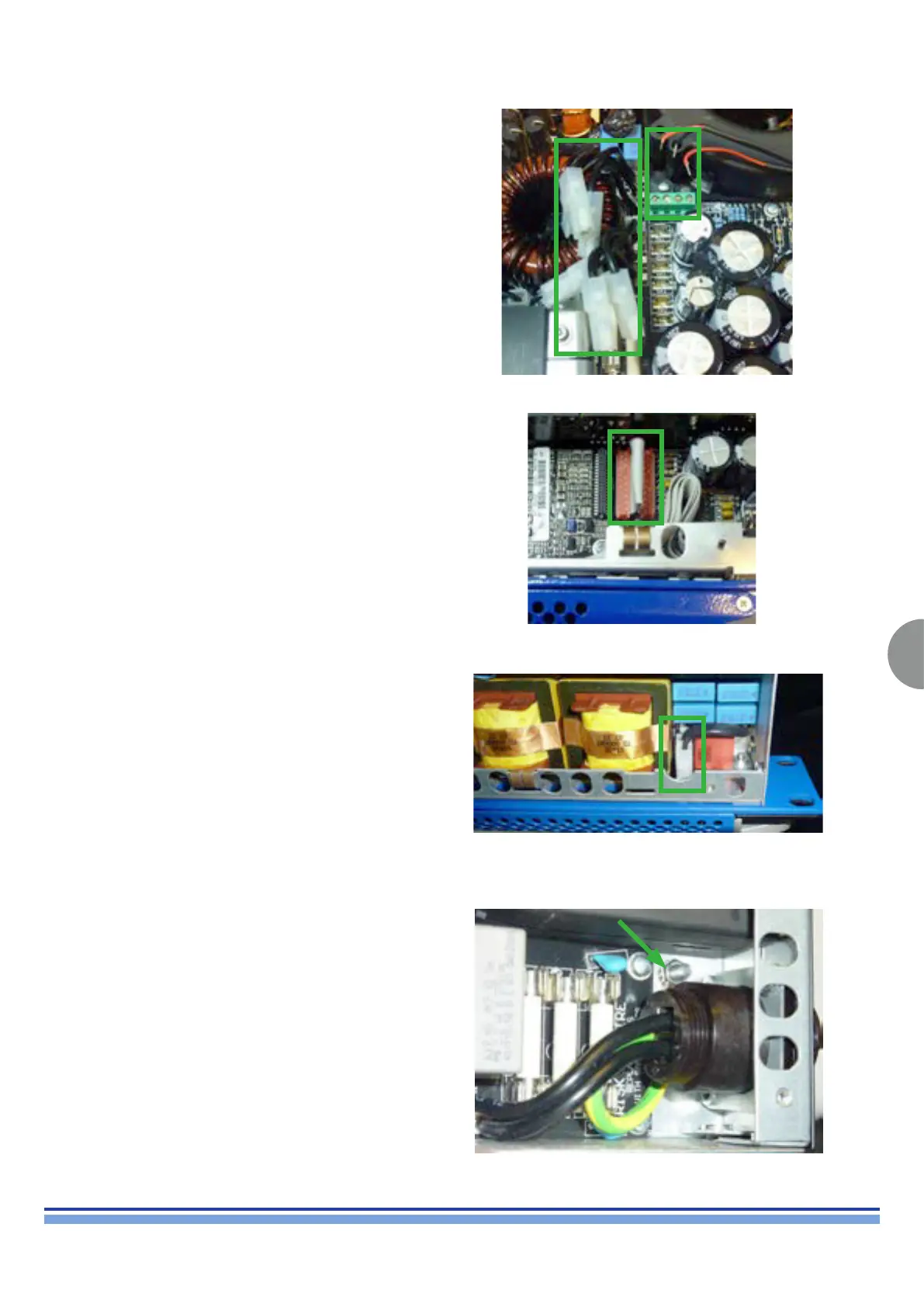

Disconnect the faston between the power supply board
and the output amplier board and release the fan’s
power cables as portrayed in (Fig. 13)
6. Removing the Power Supply Board:
(Fig. 13)
Unscrew the ground terminal of the amplier mains cable
with a 7mm hexagonal key as portrayed in (Fig. 16)
Disconnect the fastons between the On-Off switch and
the power supply board highlighted in (Fig. 15).
Disconnect and remove the at cable bridge highlighted
in (Fig. 14)
(Fig. 14)
(Fig. 15)
(Fig. 16)
