K6 K8 K10 K20 | SERVICE MANUAL

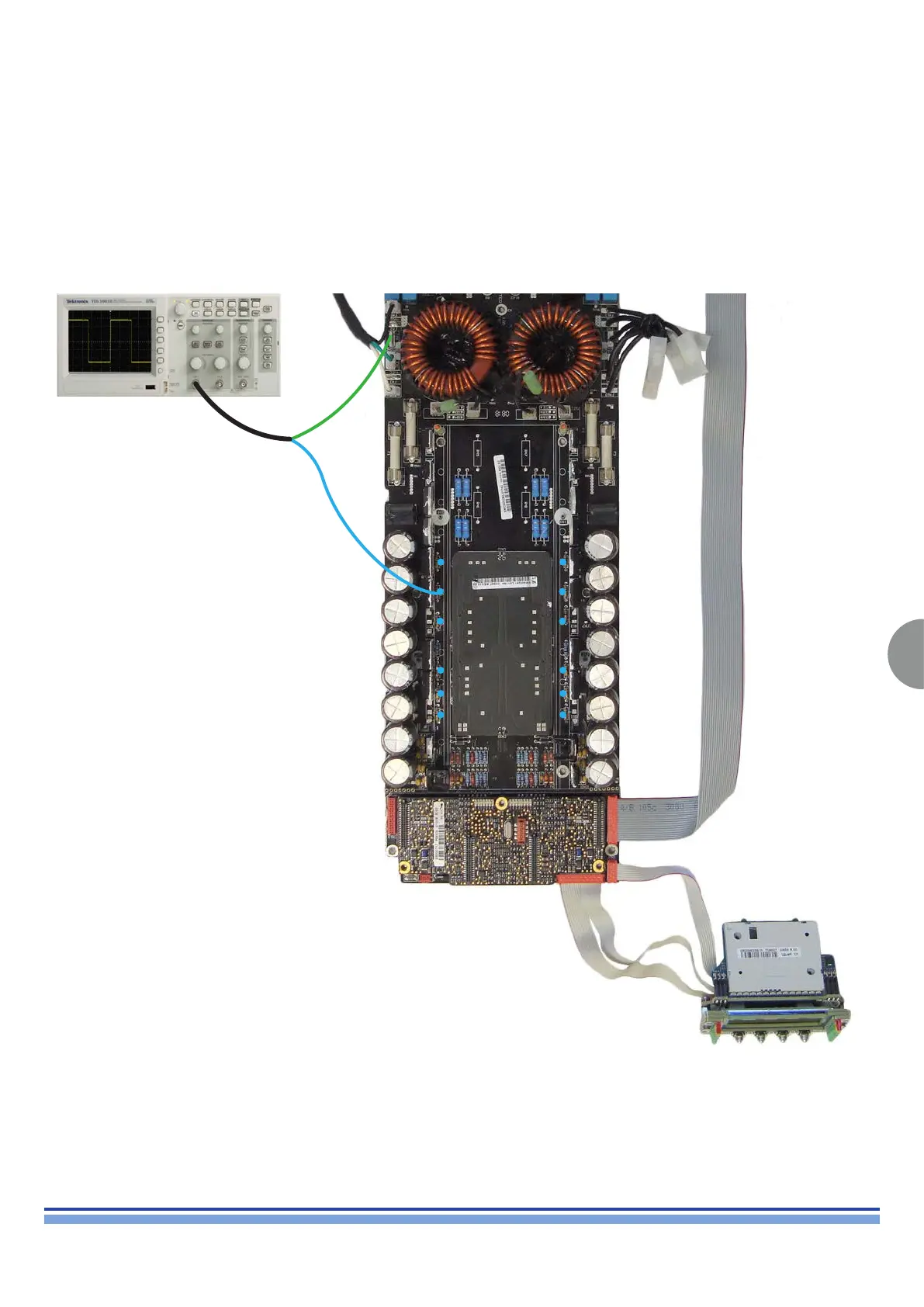

If the results of the previous tests are sitisfactory, by means of an oscilloscope check for the presence of a square wave in all 8
highlighted points.
Testing the output stage drivers
