Connections | 5
MATERIAL
TREATMENT
DESCRIPTION
ITEM
DATE SCALE AUTHOR APPROV.
GENERAL
TOLERANCES
UNI-ISO
2768-mK
ACCORDING WITH THE LAW, WE RESERVE THE PROPERTY OF
THIS DRAWING. IT CANNOT BE REPRODUCED OR OTHERWISE
MAKE KNOW TO OTHER COMPANIES OR COMPETITORS
WITHOUT OUR PERMISSION
DRAWING
CODE
WEIGHT
VOLUME
REV
-
REV.
01
DATE
-
DESCRIPTION
-
AUTHOR
-
SHEETS
A3
POWERSOFT S.p.A.
Via E.Conti, 5 - 50018 Scandicci (FI) - Italy
Tel. +39 055 7350230 - fax +39 055 7356235
http://www.powersoft.it
1:2
1 / 2
02 - - -
03 -
- -
04 -
- -
99,5108,5 4
216
108,48,3
125
8,3()
4()
O
4
,
5
6
x
42
10 11

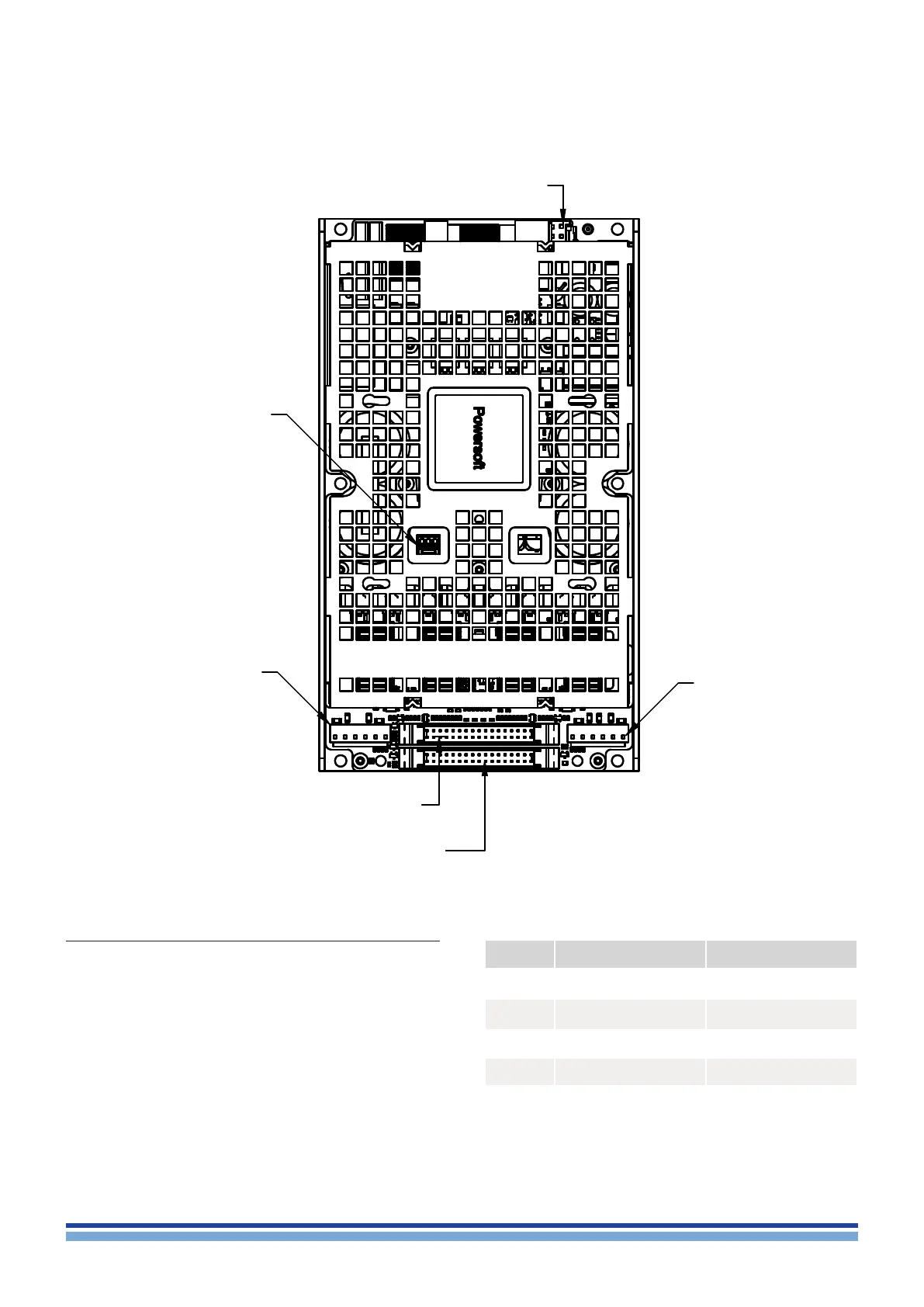

Connections
11 : 1.Grounding
The amplier module is intended to be assembled in an
End Product.
In the End Product, the metal plate of the amplier module
shall be mechanically xed and electrically connected to
conductive parts connected to protective earth – PE.
The main PE connector of the End Product shall be
connected to the chassis, or to the accessible conductive
enclosure parts, with suitable measures according the
standard and applicable national deviations.
Any EMI lter added into the mains cable must be
screwed to grounded metal parts of the chassis and its PE
cable must be connected to grounding point of end product.
11 : 2.Bill of connectors
CODE NAME TYPE
PL1000
PL3000
Input connector IDC socket 34 pin
PL1001
PL3001
Output connector JST B6P-VH
PL1 AC Mains JST B3P-VH
PL2 FAN Molex 22-27-2031
Mating connectors (not provided)
Loudspeaker wires housing: JST VHR-6N
Mains connector housing: JST VHR-3N
Terminals: SVH-41T_P1-1
Fan connector: Molex 22-01-2035
Terminals: KK 254 4809 series
PL1
PL2
PL3000
PL1000
PL1001
PL3001
To Next Page
