powersoft LiteMod 4HV - Evaluation Board - KT000291; 1.Switch Functions

The KT000291 is a basic evaluation board adapting up to 4 XLR inputs into two Powersoft IDC 34 poles connectors. It
includes two switches able to parallel inputs into two paralleled couples. Additional test points help the user to monitor some
readout signals and provide some signals to the amplier.
Switch Description
Switch1/2 Parallel inputs ch1 and ch2
Switch3/4 Parallel inputs ch3 and ch4
XLR Inputs Description
SO1 Input CH1
SO2 Input CH2
SO3 Input CH3
SO4 Input CH4
Evaluation Board - KT000291
15
15 : 1.Switch functions

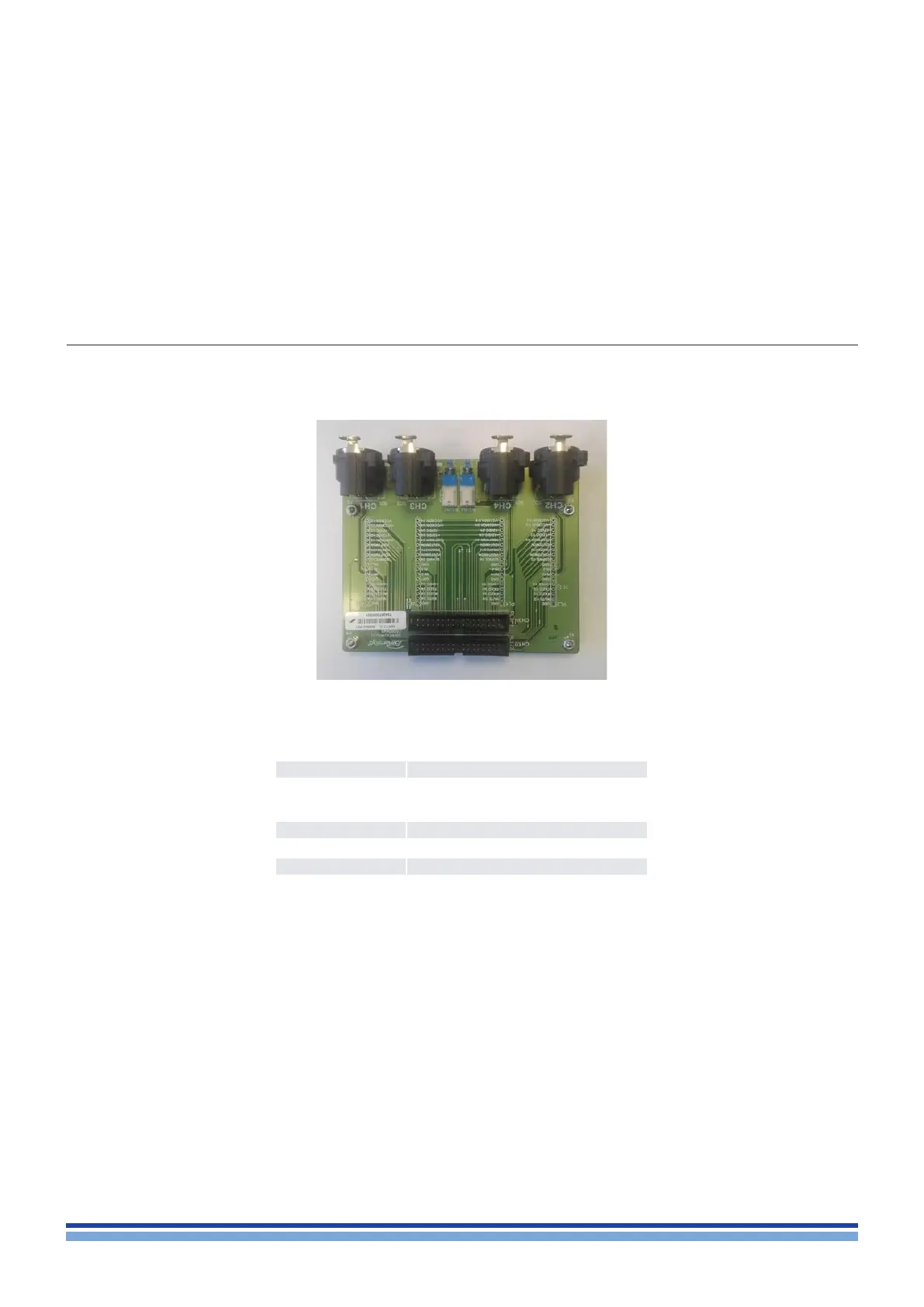

FIGURE 9: KT000291 Evaluation Board
