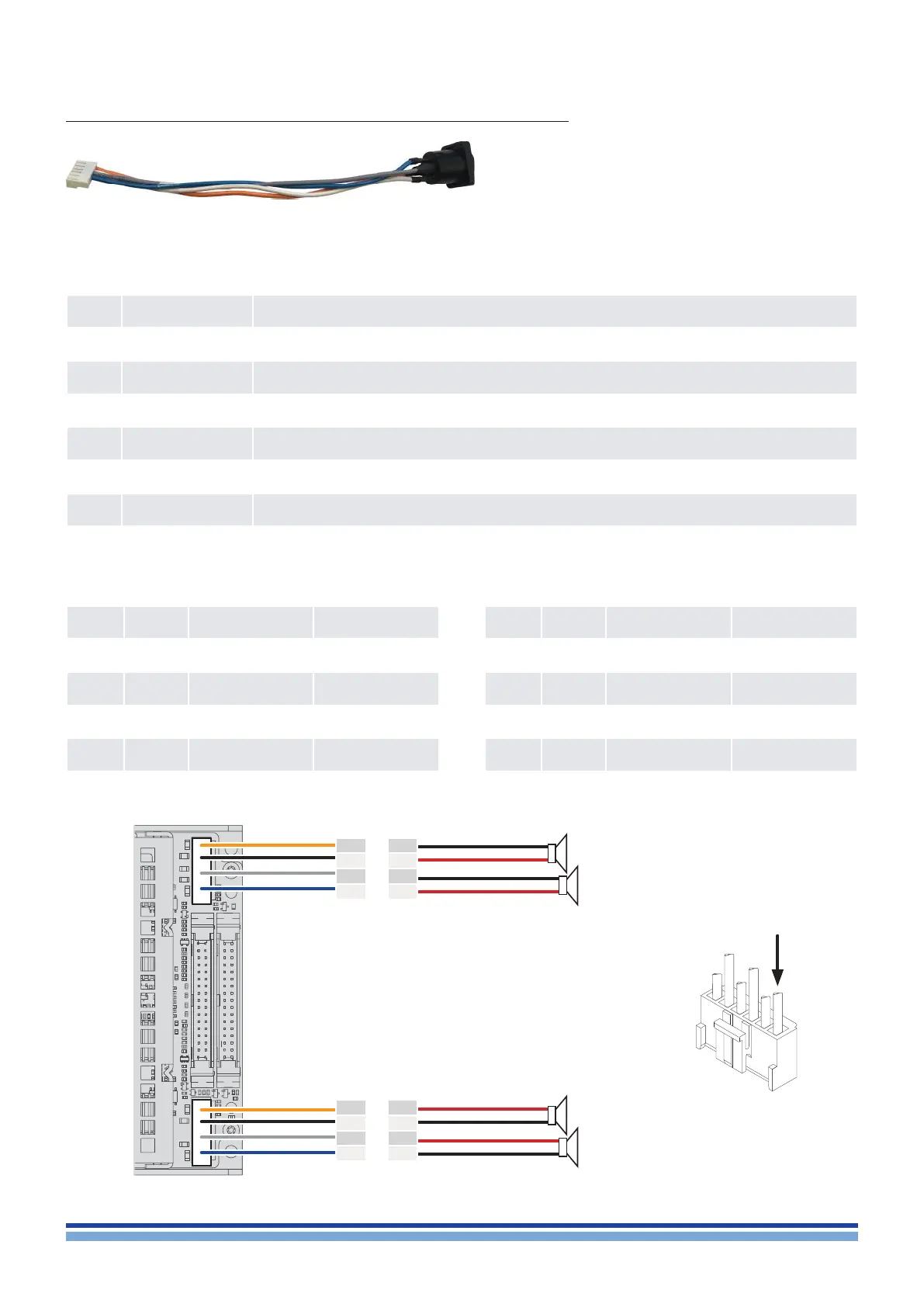

powersoft LiteMod 4HV - 2.Output Cable, 4 X SE Configuration - CB000731

Cable Kit - KT000349 | 17
Bill of Materials
Q Part Description MPN / Specs
1 Speakon NL4MP-UC
1 JST Connector VHR-6N
4 JST Contacts SVH-21T-P1.1 (22 ~ 18 AWG), SVH-41T-P1-1 (20 ~ 16 AWG)
1 White Cable 16 AWG
1 Blue Cable 16 AWG
1 Orange Cable 16 AWG
1 Grey Cable 16 AWG
Pin Out CH 1-3
JST Pin Cable Speakon Pin Speaker Pin
1 ORANGE 1- -
2 WHITE 1+ +
3 GREY 2- -
4 BLUE 2+ +
5 N.C. N.C. N.C.
6 N.C. N.C. N.C.
Pin Out CH 2-4
JST Pin Cable Speakon Pin Speaker Pin
1 ORANGE 1- +
2 WHITE 1+ -
3 GREY 2- +
4 BLUE 2+ -
5 N.C. N.C. N.C.
6 N.C. N.C. N.C.
14 : 2.Output cable, 4 x SE conguration – CB000731
CH 2 - 4
PIN 1
OUT 1
OUT 2
OUT 3
OUT 4
+
-
+
-
-
+
-
+
1-
1+
2-
2+
1-
1+
2-
2+
CH 1 - 3
