You can position the UPS cabinets horizontally or vertically. When
positioning the cabinets horizontally, the EBMs must be placed below
the UPS (see Figure 5).
UPS
Optional
EBMs

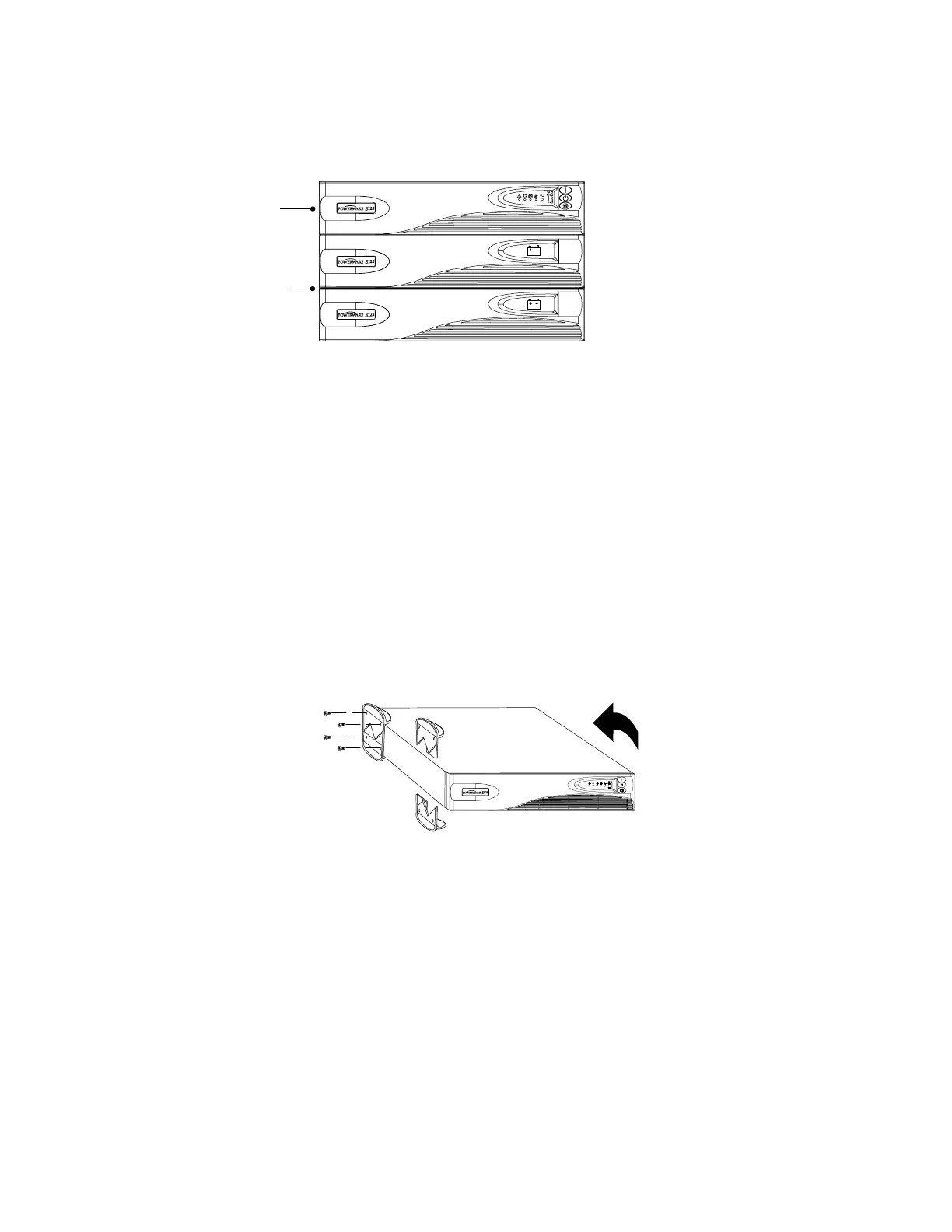

Figure 5. Horizontal Cabinet Setup
When positioning the cabinets vertically, the UPS and any optional
EBMs must be stabilized with pedestals and/or EBM brackets. The
vertical setup varies depending on the number of cabinets:
1.
For one cabinet, both sets of pedestals must be installed.
Complete Steps 2 through 4.
For two cabinets, the pedestals and the EBM brackets must be
installed. Skip to Step 5.
For three or more cabinets, skip to Step 8 to install the EBM
brackets.
2. Place the UPS cabinet horizontally so that the left end of the
unit is accessible (see Figure 6).
3. Position the pedestals over the end of the UPS cabinet so that
the weight of the unit is evenly distributed. Secure the pedestals
with the screws provided in the accessory kit.
Figure 6. Installing Pedestals on a Single Cabinet
