4. Carefully position the cabinet upright with the air vents at the
top (see Figure 7).
Continue to “Installing the UPS” on page 24.
Air Vents

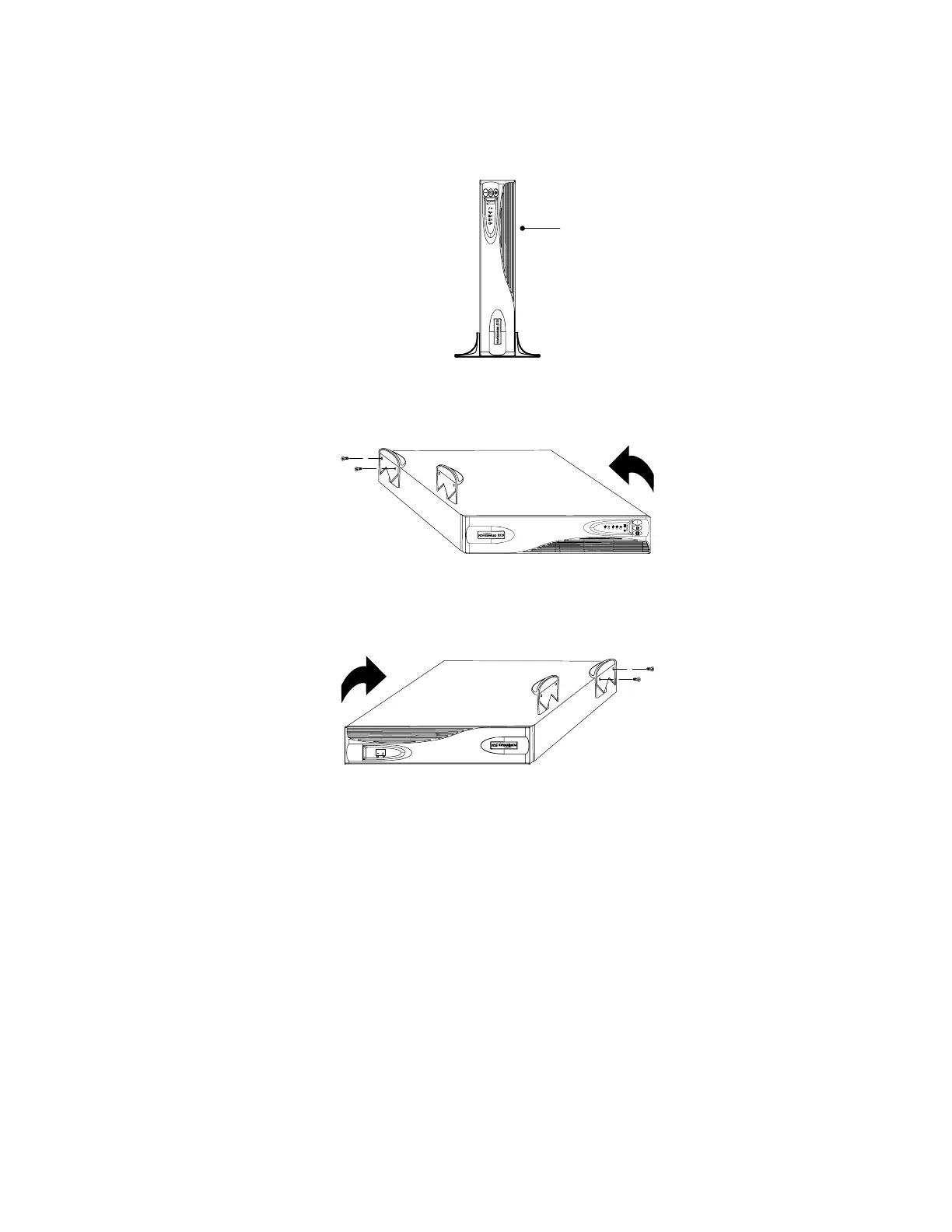

Figure 7. Pedestals with One Cabinet
5. Place the UPS cabinet horizontally so that the left end of the
unit is accessible (see Figure 8).
Figure 8. Installing UPS Pedestals with Two Cabinets
6. Place the EBM cabinet upside down so that the right end of the
unit is accessible (see Figure 9).
Figure 9. Installing EBM Pedestals
7. Position two of the pedestals over the edge of each cabinet so
that the weight of the unit is evenly distributed. Secure the
pedestals with the screws provided in the accessory kit.
