Powerware 9315 - Figure 12. Joining Component Cabinets

24
Powerware 9315 (100 kVA--160 kVA) Installation
164200292 REV. E 041500
Optional
Cabinet
Optional
Cabinet
Back of 685 and 1085
Back
Bracket from kit
Screw from kit
of UPS
Battery Cabinet
Existing Screw
Front of 685
Bracket from kit
Screw from kit
Battery Cabinet
Front of
UPS

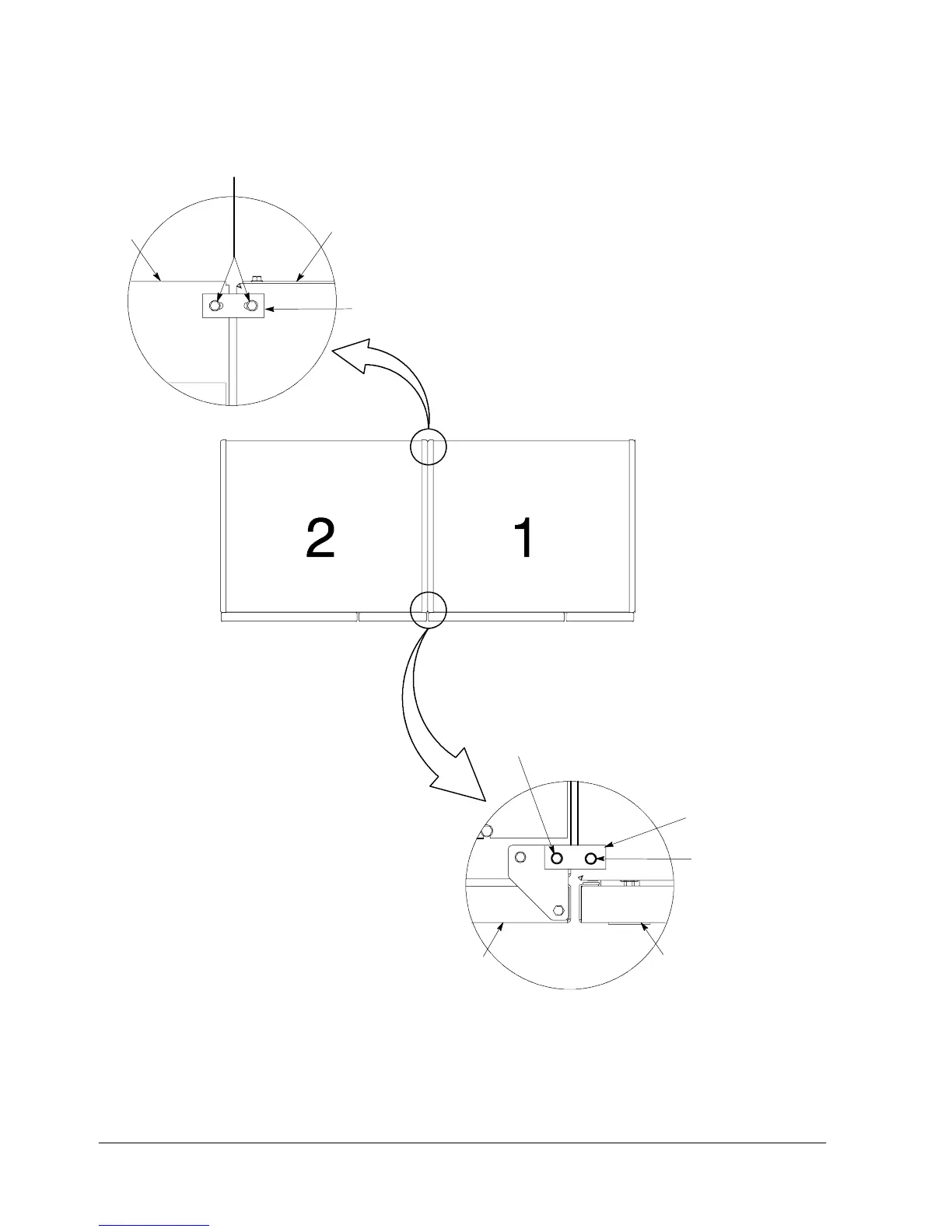

Figure 12. Joining Component Cabinets
