Step 3.

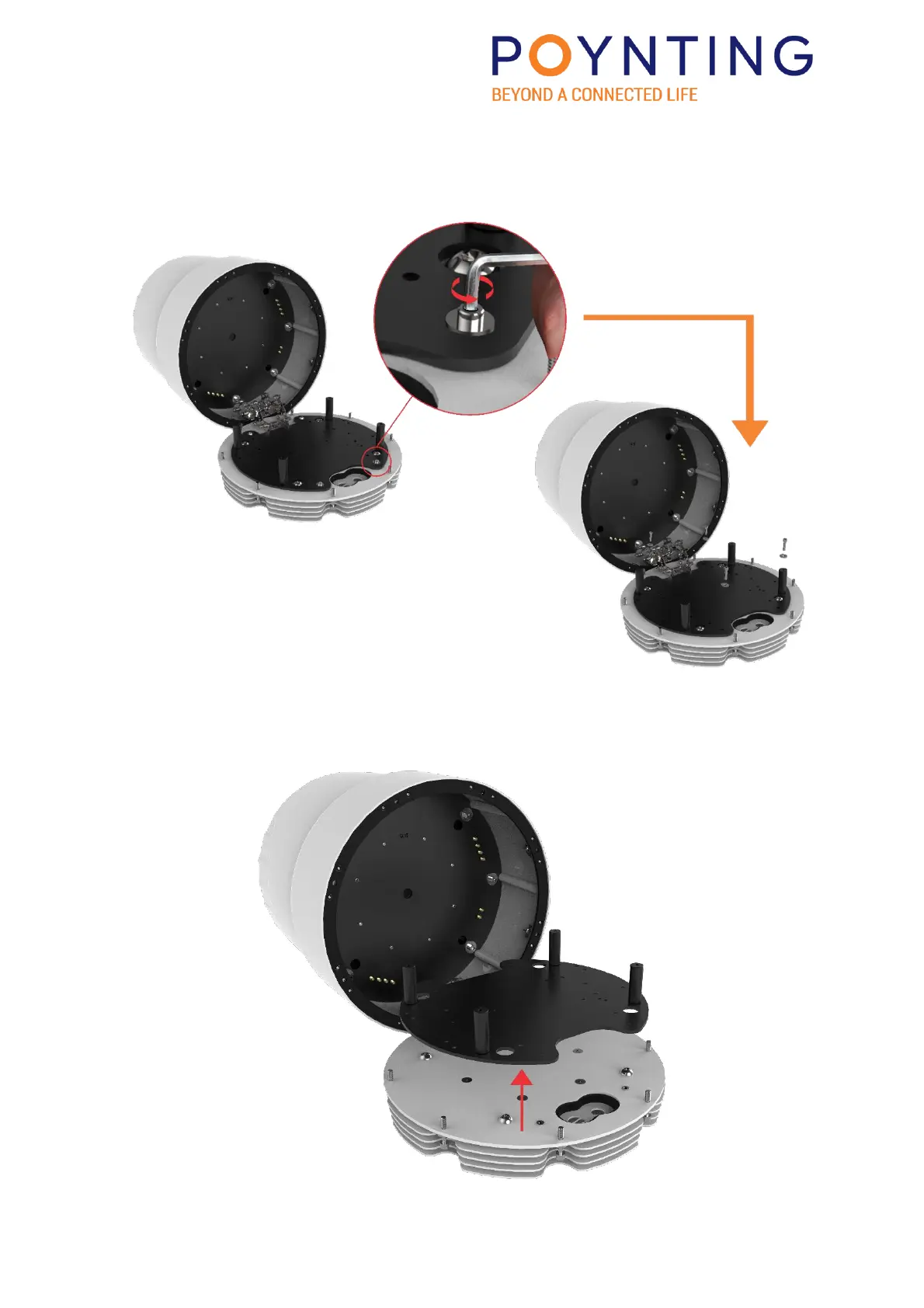

Loosen the M6 cap screws using a 4mm Allen key from the main router plate; proceed to
remove the loosened M6 cap screws and M6 flat washers as shown below:
Step 4.
Remove the main router plate with the pillars from the heatsink as shown below:
Note: main router plate is now ready for routers to be mounted onto it.
