www.poynting.tech
Poynting Group (Pty) Ltd
Registration Number: 2014/239013/07
Rev 2.0

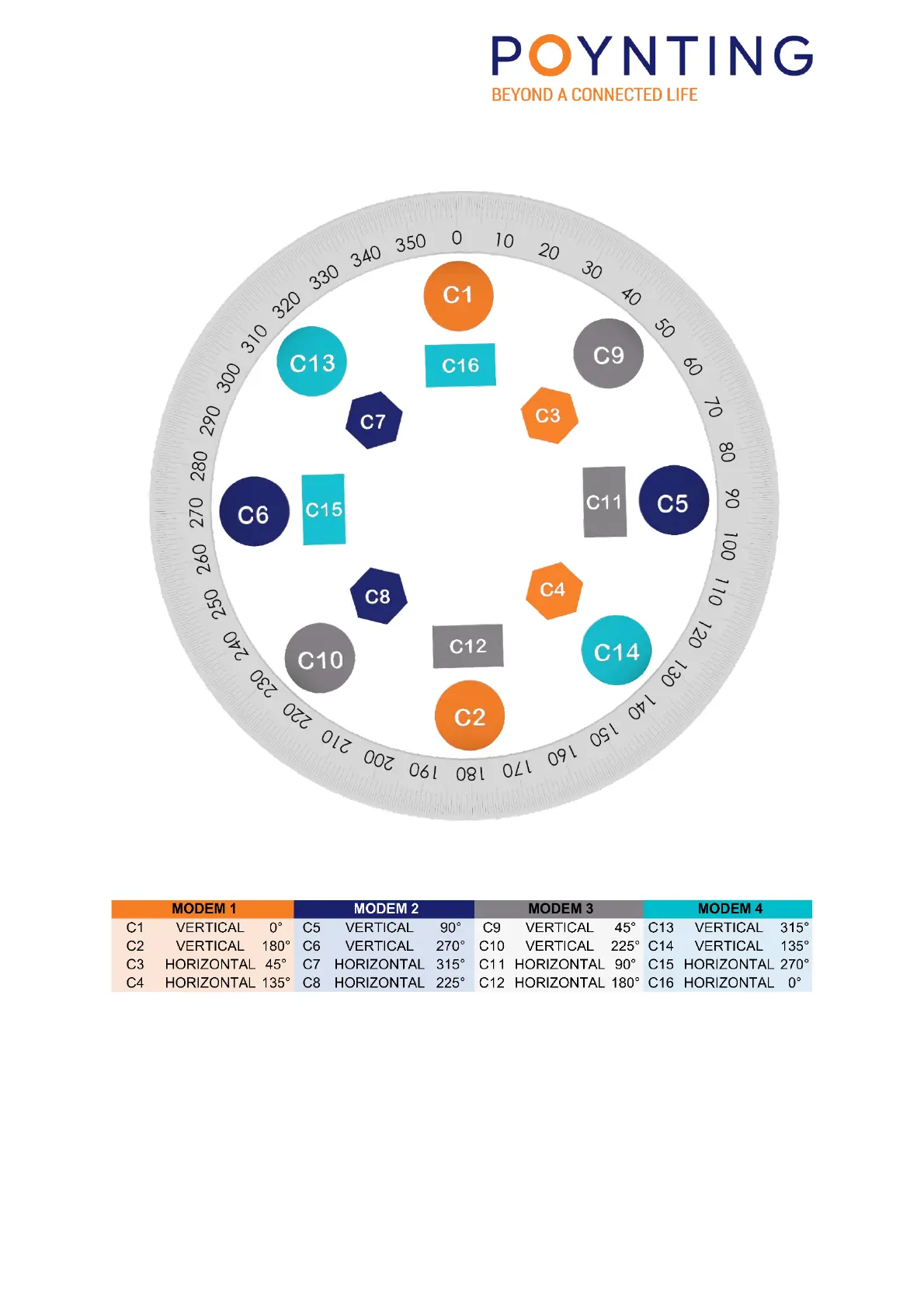

7.2. A-RIPL-0016-V1-01 LTE/5G ANTENNA STRUCTURE
Connecting 4 x (4x4) Routers to RIPPLE-0016 (A-RIPL-0016-V1-01)
Please refer to page 20 which details the Router connections to the RIPPLE-0016 base plate.
