5. FITTING THE ROUTERS INSIDE THE RIPPLE
Step 1.

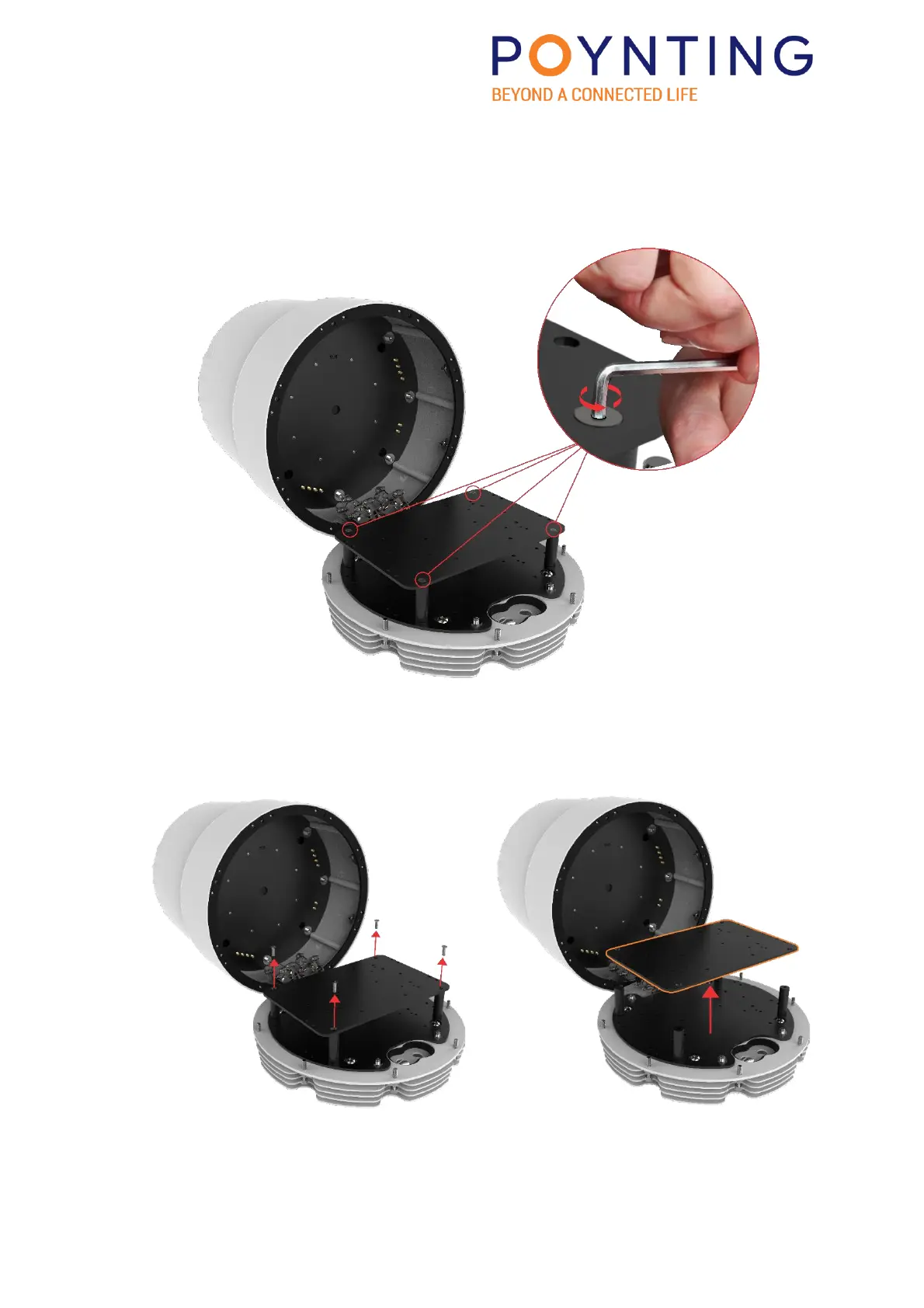

Use the 4mm Allen key to loosen the M6 countersunk screws in the mounting plate as shown
below:
Step 2.
Remove the loosened M6 countersunk screws; then proceed to remove the mounting plate
as shown below:
