9. ETHERNET AND POWER CABLES

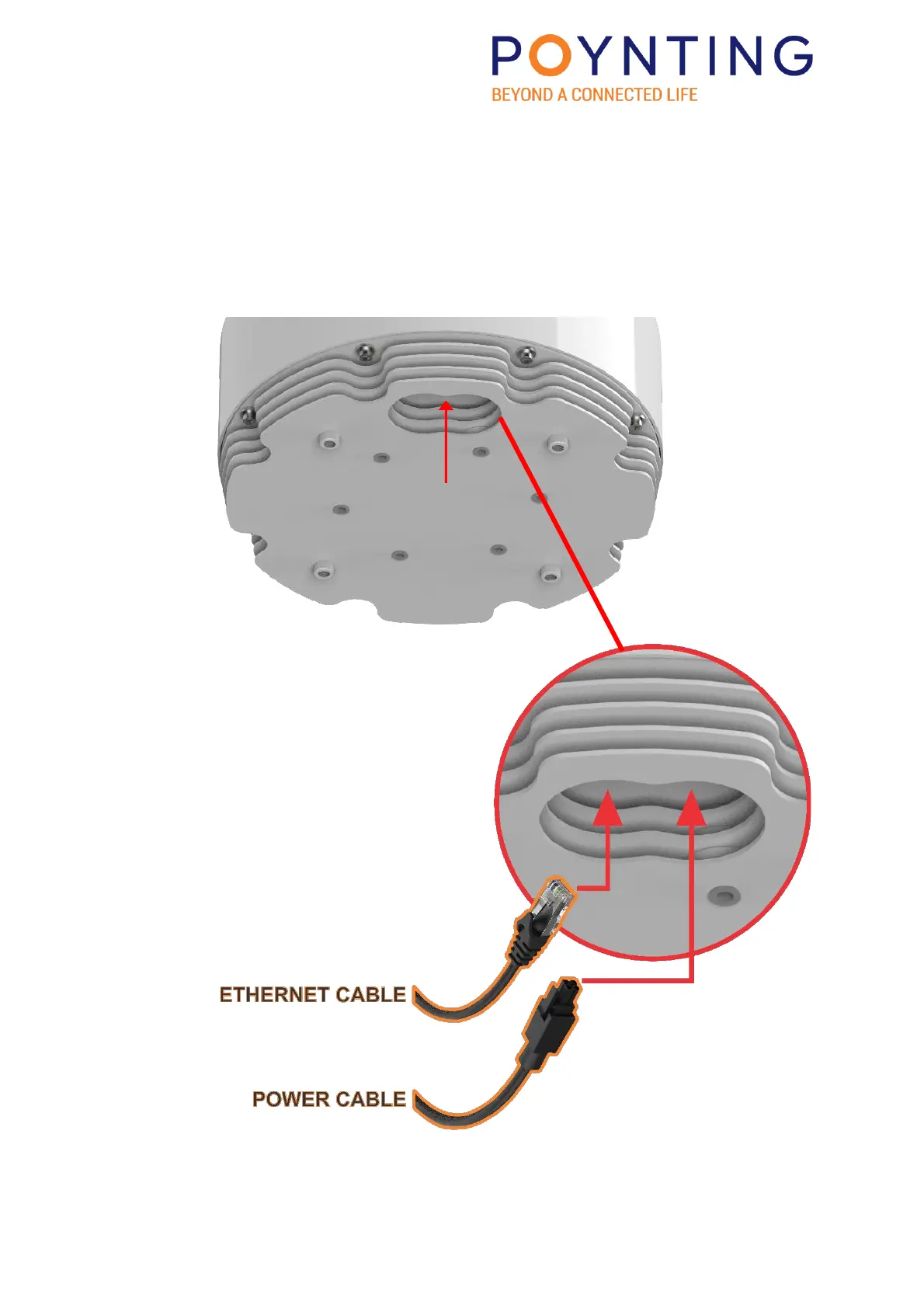

Tilt the base upwards and locate the cable entry point as shown below.
Carefully route the Ethernet- and Power Cable through the compression glands provided.
Route the cables with adequate slack to reach the different points where they should
connect.
CABLE ENTRY POINT
