6. RECOMMENDED ROUTER BRACKET MOUNTS FOR RIPPLE
Dimensions [ w x h x d]

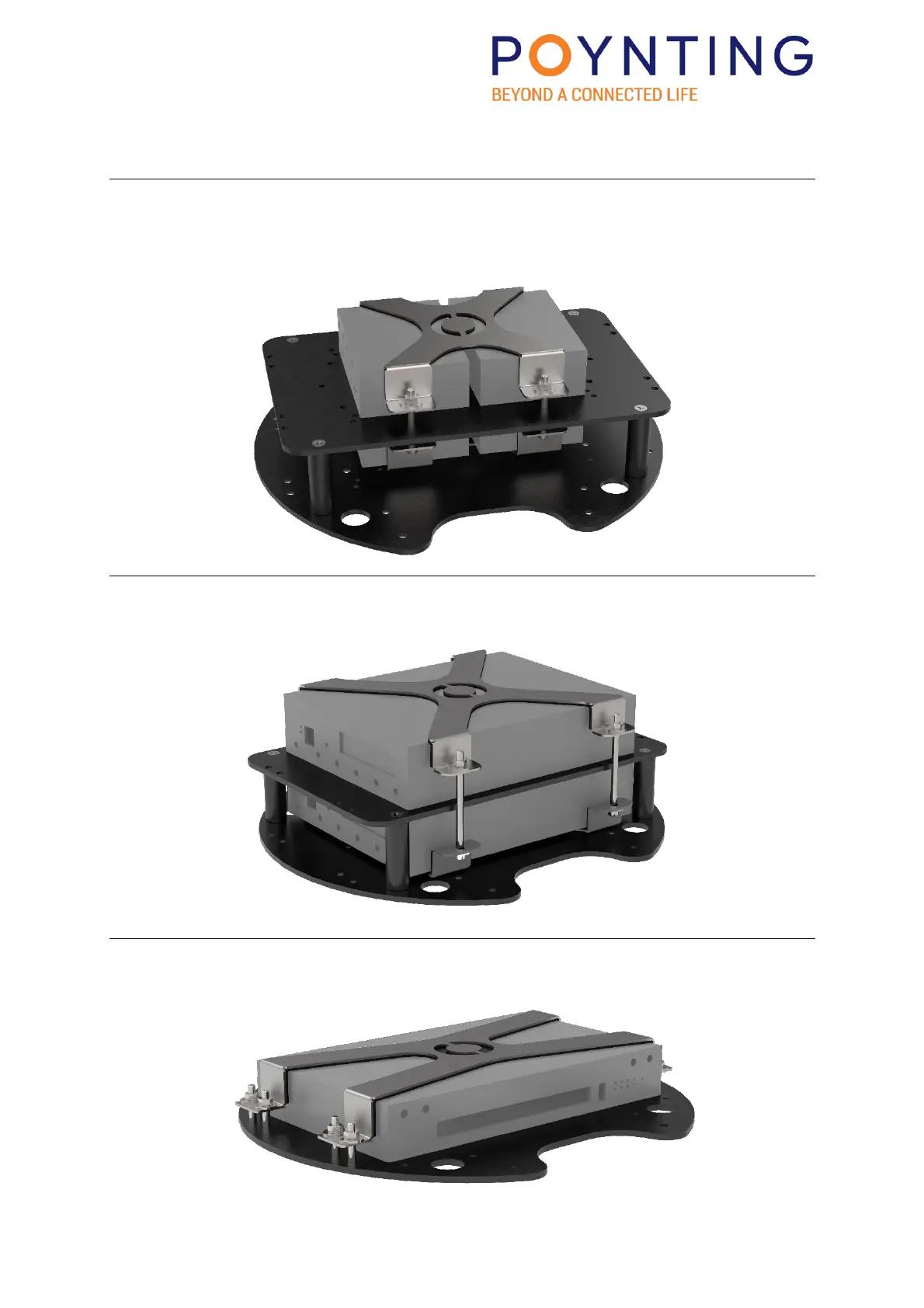

6.1. A-BRKT-071-V1-01
FITS 4 x ROUTERS WITH DIMENSIONS OF: 95.1mm x 44.2mm x 132mm
FITS 2 x ROUTERS WITH DIMENSIONS OF: 190.2mm x 44.2mm x 132mm
6.2. A-BRKT-072-V1-01
FITS 2 x ROUTERS WITH DIMENSIONS OF: 200mm x 55mm x 280mm
6.3. A-BRKT-073-V1-01
FITS 1 x ROUTERS WITH DIMENSIONS OF: 177mm x 43mm x 292mm
