Page 17 of 30
www.poynting.tech
Poynting Group (Pty) Ltd
Registration Number: 2014/239013/07
Rev 2.0

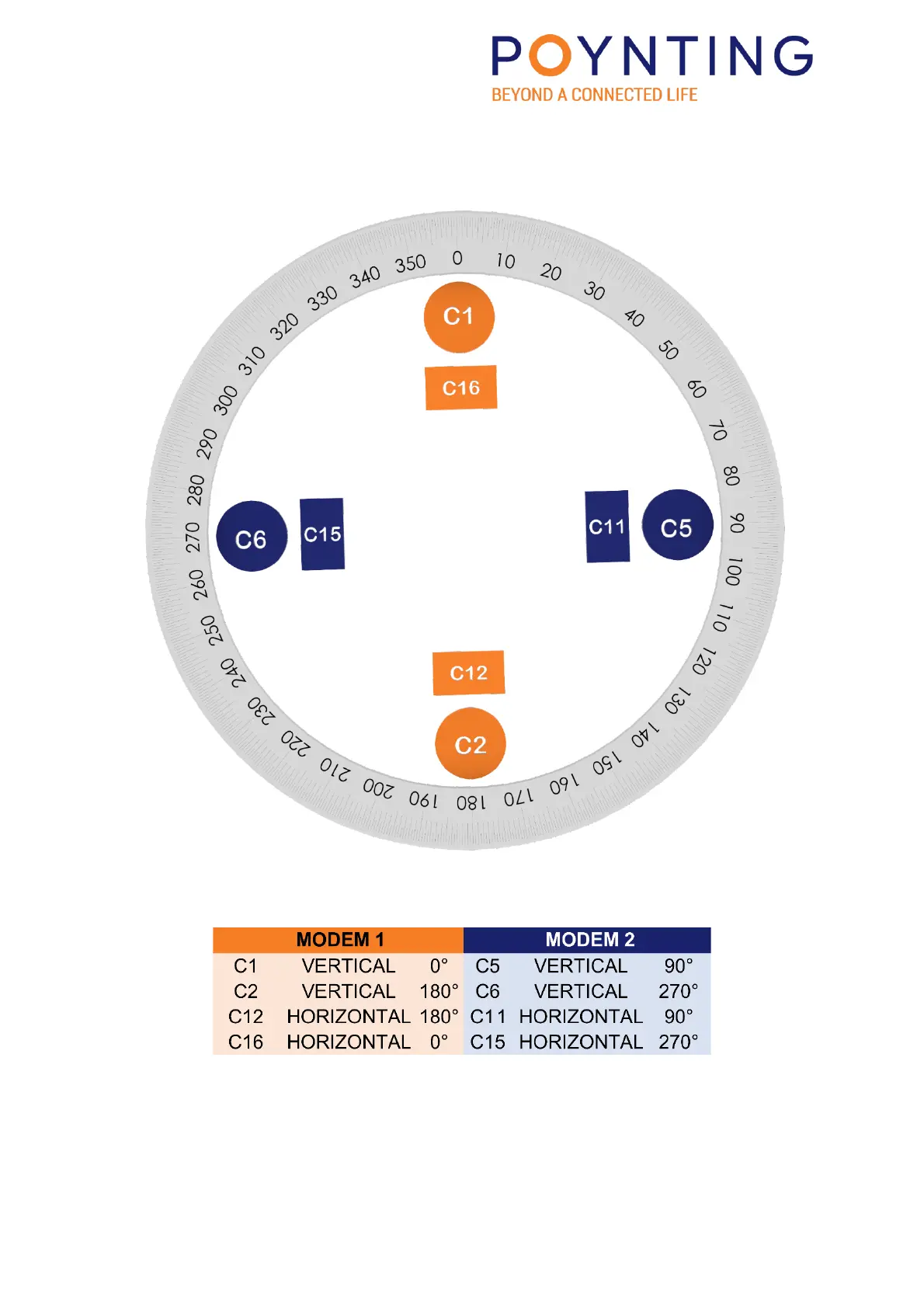

7.3. A-RIPL-0008-V1-01 LTE/5G ANTENNA STRUCTURE
Connecting 2 x (4x4) Routers to RIPPLE (A-RIPL-0008-V1-01)
Please refer to page 21 which details the router connections to the RIPPLE-0008 base plate.
