8. RF CABLE CONNECTION
Radio Frequency Bulkhead Connections: Pages 20 and 21 detail the layout of the RF
connections to the different Antenna elements. Following the recommendation to mount the
RIPPLE
as high as possible above the waterline, possibly on one of the Mast
telecommunication equipment extensions.

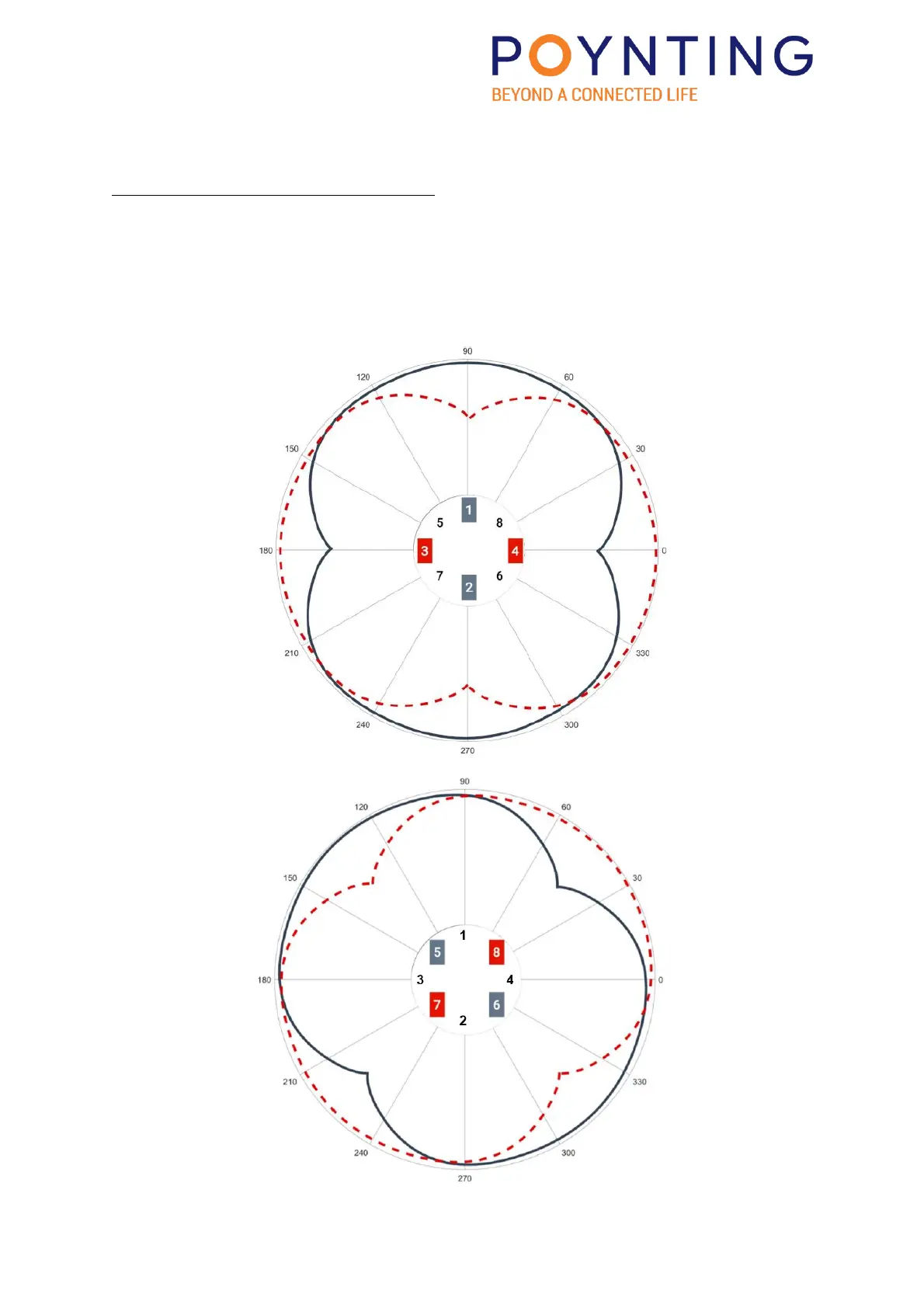

The diagram directly below details the composite radiation pattern direction (not the actual
pattern).
