Step 2.

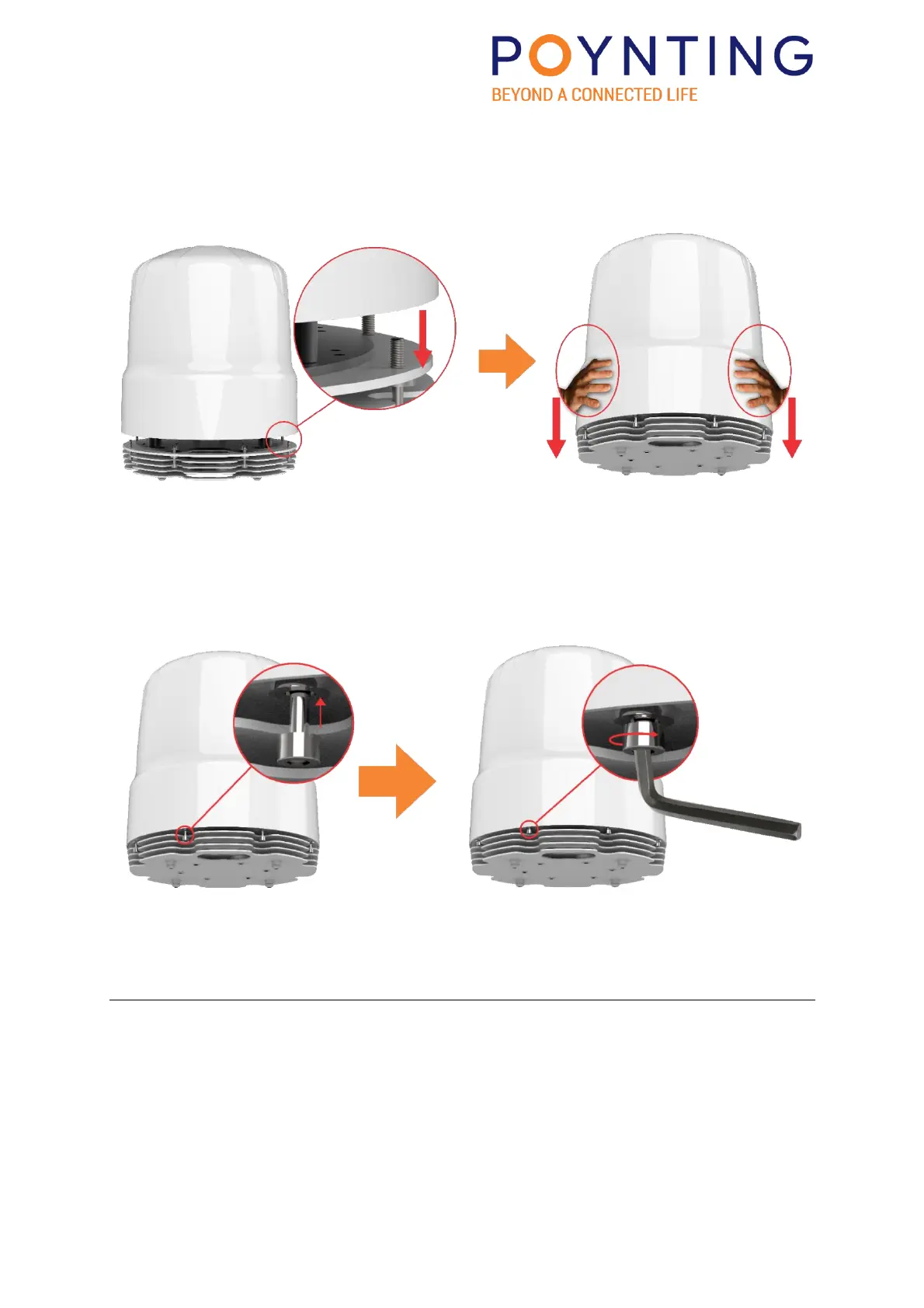

Ensure the Radome aligns with the heatsink base; proceed to push the Radome downwards
as shown below:
Step 3.
Push the M8 captive screws upwards and fasten them using the 5mm Allen key as shown
below:
Step 4.
The closing process is now complete.
