COMMERCIAL
PRO
D U C T S
DIVISION

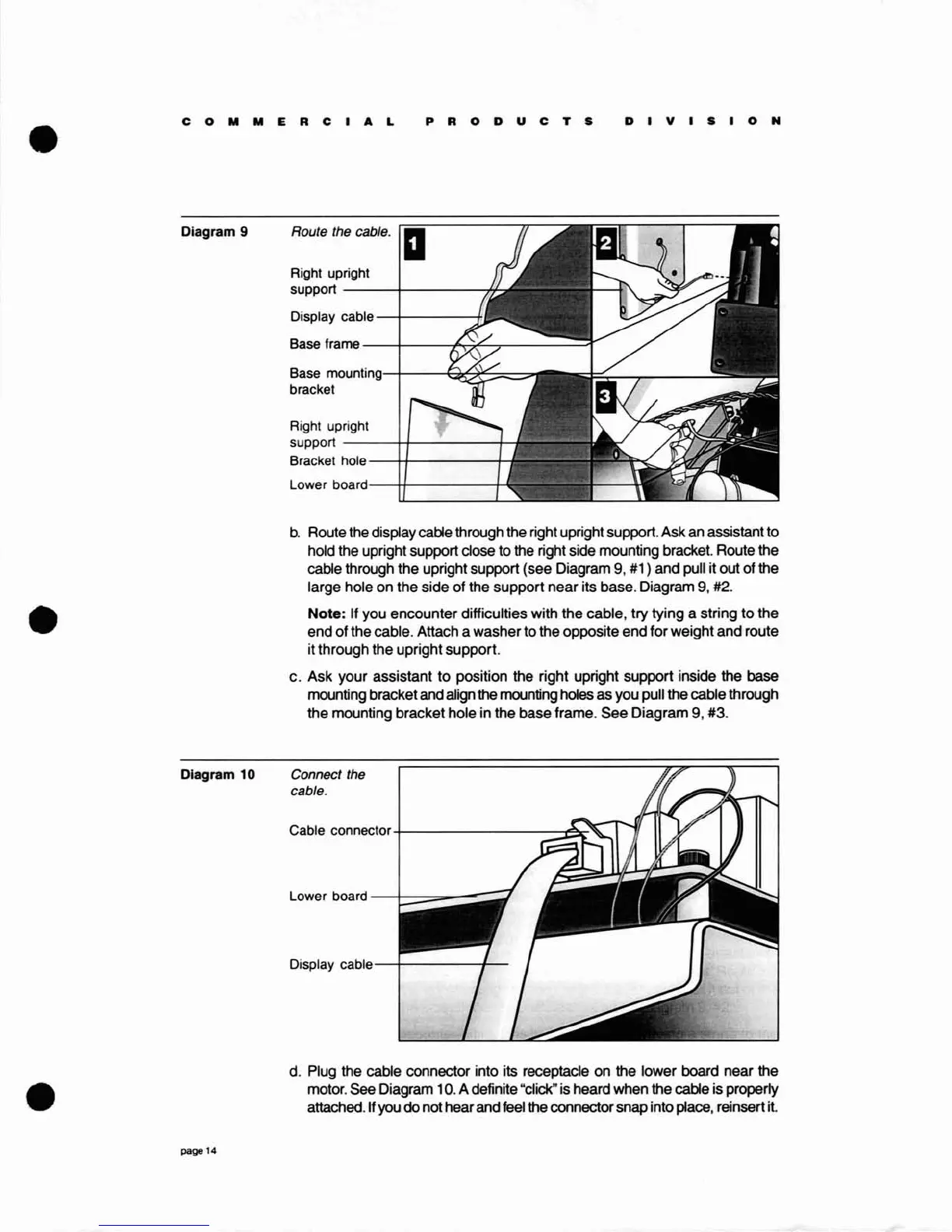

Diagram 9 Route the cable.
D
Right upright
support
Display cable
Base frame
Base mounting
bracket
Right upright
support
Bracket hole
Lower board
b.
Route the display cable through the right upright support. Ask an assistant to
hold the upright support close to the right side mounting bracket. Route the
cable through
the
upright support (see Diagram 9. #1) and pull it out of the
large hole
on
the
side
of
the
support
near
its base. Diagram 9. #2.
Note: If you
encounter
difficulties with
the
cable.
try
tying
a string
to
the
end of the cable. Attach a
washer
to the opposite
end
for weight
and
route
it through
the
upright support.
c.
Ask
your
assistant
to
position the right upright support inside the base
mounting bracket and align the mounting
holes
as
you pull the cable through
the
mounting
bracket
hole in
the
base
frame.
See
Diagram
9. #3.
Diagram 10
page
14
Connect the
cable.
Cable
connector+------------t:x-·~
Lower board
--+---=-~-:
Display
cable-+-----I--
d. Plug the cable connector into its receptacle on the lower board near the
motor.
See
Diagram 10. A definite "click" is heard when the cable is properly
attached. If you
do
not hear and feel theconnector snap into place. reinsert
it.
